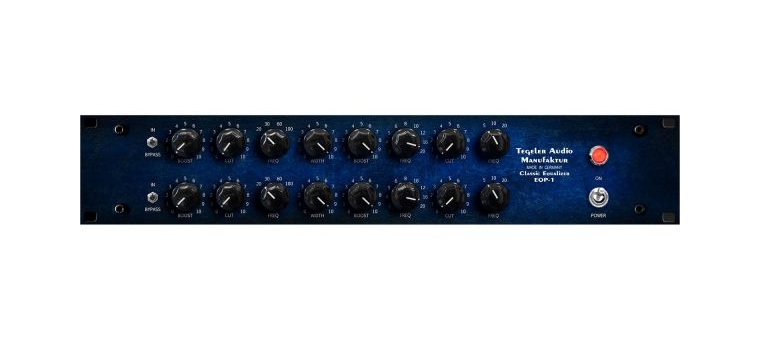

TEGELER AUDIO CLASSIC EQUALIZER EQP-1

PRODUCT DESCRIPTION

The Tegeler Audio Classic Equalizer EQP-1 was modeled after classic vintage equalizers with passive components (condenser and inductor) in the EQ section, which accounts for its special sound.
The EQP-1 consists of three parts: Bass Boost and Cut, Treble Boost with adjustable bandwidth and a High-Frequency Cut. Voices sound silky, instruments step out of the mix and are clearly locatable without one turning them up. Deep frequency instruments like bass and bass drums get the necessary boost without sounding boomy. If you raise up the treble, it doesn't sound like lifted highs, but everything simply sounds fresher.
The EQP-1 is equipped with a tube stage and high-quality input and output transformers.
Besides the open and airy sound of the equalizer, the signal will get more density and additional presence from the tube and the transformers. The low end becomes more transparent and defined. The highs become more rounded and pleasant to the ears. This effect will already take place as soon as the device is in the signal path and even if the equalizer is not used.
FEATURES:

Low boost/attenuation (Low shelf):
20Hz, 30Hz, 60Hz, 100Hz
High boost (Peak with variable bandwidth):
3kHz, ,4kHz, ,5kHz, 6kHz, 8kHz, 10kHz, 12kHz, 16kHz, 20kHz
High attenuation: (High shelf) 5kHz, 10kHz, 20kHz
Balanced input and output
Input and output transformer
Bypass switch
Internal power supply






PRODUCT SPECIFICATIONS



CONDITION
New


PACKAGE CONTENTS
Tegeler Audio Classic Equalizer EQP-1


TUBE OR SOLID STATE
Tube


CHANNELS
Dual-Channel


CHASSIS
19-inch Rack-mount


RACK SPACES
2u


INPUT CONNECTORS
Analog XLR


OUTPUT CONNECTORS
Analog XLR


EQ TYPE

Parametric
