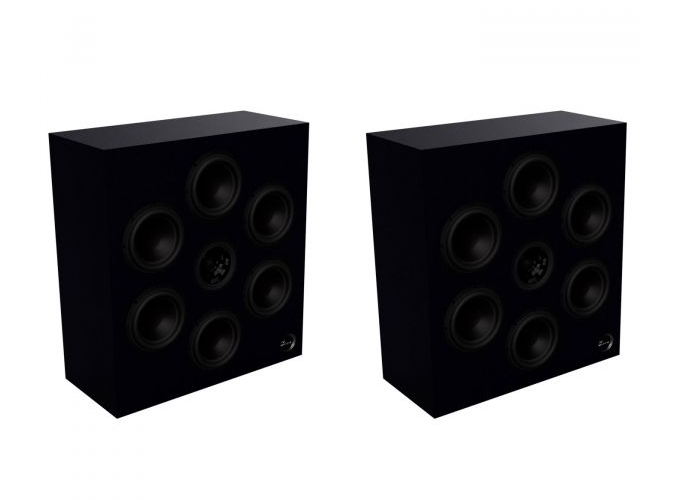

EX MACHINA SUPERNOVA 3-WAY ACTIVE STUDIO MONITOR - (PAIR)

PRODUCT DESCRIPTION

The Ex Machina Supernova is designed primarily for soffit mounted mains applications in large facilities. Featuring a whopping six subwoofer units, Supernova is capable of massive output at ultra-low frequencies. Supernova’s not all brawn though – a unique, hexagonal low frequency driver arrangement around Ex Machina's signature coaxial allows it to behave as a triaxial, producing a true hemispherical wavefront across its entire range. Combined with the same game-changing driver design, materials science and DSP correction as their smaller monitors, your soffits aren’t just for knock anymore – Supernova will rival and surpass the finest mastering mains in the world for accuracy as well.
CABINET
Ex Machina's cabinets are made from a high performance wood composite called Valchromat. Its exceptional rigidity, density, and damping characteristics make the enclosures far more acoustically inert than standard MDF or plywood cabinets.
In addition, the front and side panels use 30 mm thick sheet stock, which allows for a full 1” radius to be applied the front baffle, dramatically reducing baffle diffraction artifacts.
Finally, all cabinets are sealed, which allows Ex Machina's proprietary correction algorithm to flatten both magnitude and phase response all the way to the bottom octaves.
COAXIAL
Ex Machina's signature driver is a 6.5” coaxial mid/tweet. The tweeter is a 25 mm, optimized dome made from Ora GrapheneQ, the first free-standing graphene oxide diaphragm ever deployed in a loudspeaker. This revolutionary material that defies traditional expectations, producing a diaphragm that is both stiff and well damped. GrapheneQ is not only as well damped as silk or paper, but also has a better stiffness to weight ratio than titanium. It remains a perfect piston past 30 kHz and exhibits a well controlled breakup beyond that.
Exceptionally detailed yet effortlessly non-fatiguing, with a far wider sweet spot than an AMT or ribbon tweeter.
The midrange is made from a similarly cutting edge material called Textreme, an extremely light and rigid thin-ply carbon fiber whose fiber orientation has been tuned to push the breakup of the cones over two octaves past the in-use passband.
The geometry of the midrange makes it an optimal constant directivity waveguide for the tweeter. Combined with a unique underhung surround, this design gives Ex Machina loudspeakers their exceptional off-axis performance.
SUBWOOFER
A collaboration with SEAS, Ex Machina's 8” subwoofers are capable of 28 mm of peak to peak linear, highly symmetrical excursion and double that before damage. This gives them a shocking amount of output and exceptionally low distortion in the sealed enclosures.
A resonant frequency of 24 Hz, they can reach as deep as most 12-15” subs. And with massive 2” voice coils and titanium formers, they can happily take 250 watts of continuous power all day, every day. SuperNova deploys six of them per side in a ring around the center coaxial, which in soffit allows them to produce a perfect hemispherical wavefront. It also makes them capable of getting loud. Very loud. Like, 112 dB at 20 Hz loud.
SEALED ENCLOSURE
The exceptional linear excursion performance of Ex Machina drivers obviates the need for ports or transmission lines. This in turn eliminates the group delay, turbulence, and compression of these more typical cabinet alignments, allowing the DSP to fully linearize the phase all the way down to the low frequency extension limits of the driver itself.
SPEAKON QUICK CHANGE SYSTEM
Pre-soldered SpeakON pigtail leads are fitted to all Ex Machina drivers and the Neutrik NL4MP panel mount pass through maintains airtight, mechanically and electrically sound connection to the amplifier chamber while allowing for effortless field servicing.
BOUNDARY
By default the Supernova is intended and corrected for in-wall soffit deployment.
DSP/CONVERSION
As the correction process is computationally demanding, each speaker is fitted with its own SHARC DSP and high performance conversion. Very low jitter reclocking, high performance analog circuitry and AKM Velvet Sound conversion contribute to the sonic transparency of the DSP hardware and conversion stages.
AMPLIFICATION
The Hypex Ncore NC252MP and NC502MP modules provide everything you could ask for in an amplifier – vanishingly low distortion, superb efficiency, negligible output impedance, wide-band frequency response and phase/magnitude linearity and a healthy 1500 total watts of output power per channel.
PROCESSING MODES
“Full” deploys Ex Machina's high precision, proprietary DSP linearization for both phase and magnitude response, at the expense of 40ms of latency.
“Low Latency” deploys a more traditional IIR based correction for magnitude response only, but only introduces 3ms of latency. This can be useful for tracking applications.

PRODUCT SPECIFICATIONS



CONDITION
New


WIDTH
29.2 in


DEPTH
13.2 in


HEIGHT
31.9 in


UNIT WEIGHT
204 lb


ACTIVE OR PASSIVE
Active


MONITOR APPLICATION
Mid-Field, Far-Field


DRIVER_SIZES
LF: Six 8” aluminum alloy subwoofers; MF: 6.5” Textreme thin-ply woven carbon fiber; HF: 1” Ora GrapheneQ tweeter


NUMBER OF SPEAKERS
Pair


AMP WATTAGE
Hypex Ncore 1500 W RMS subwoofer, 125 W midrange, and 125 W RMS tweeter


MAX. SPL
112 dB @ 20 Hz



www.music-blvd.com $28,999
