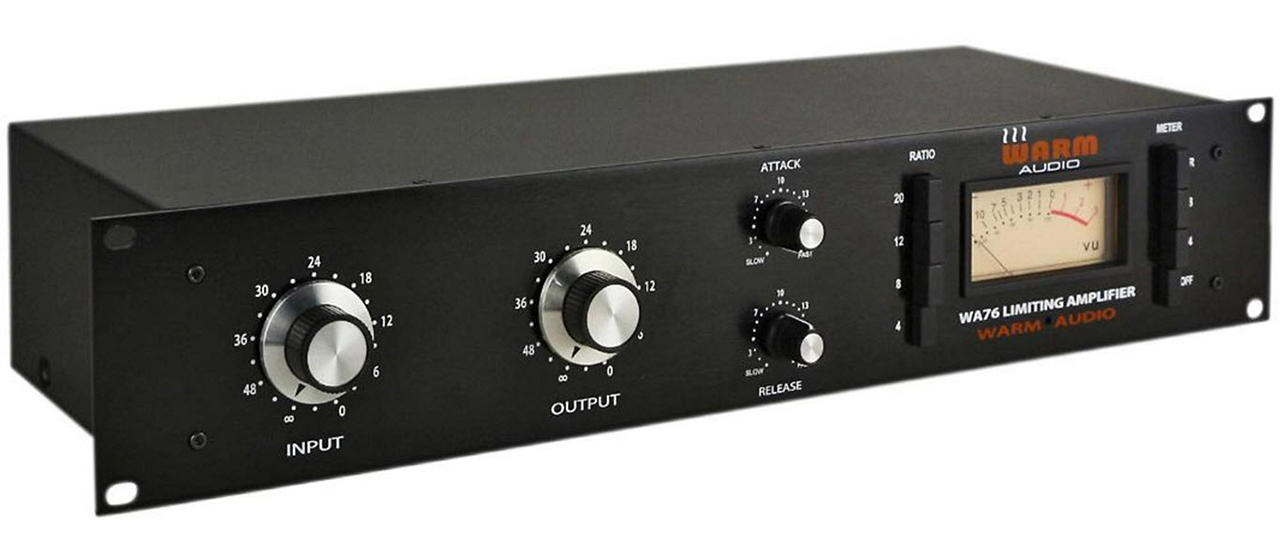

Warm Audio WA76 Discrete Compressor

OVERVIEW


Modern reproduction of the classic 1176 limiting amplifier.
The WA76 Limiting Amplifier is a modern reproduction of the Classic 1176 Revision D. Every effort was made to remain faithful to the original designs including the use of Reichenbach Engineering's (now CineMag) transformer design that was originally used. The classic 1176 was a major breakthrough in limiter technology - the first true peak limiter with all transistor circuitry offering superior performance with a signature sound - and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176 - Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that's continued to grow, for nearly 50 years.




FEATURES

True to the Classic 1176 compressor in design and performance
Completely discrete signal path
Modeled after the D revision
Utilizes USA made CINEMAG input and output transformers
Supports the famous "all buttons in" ratio setting
Ultra fast attack time
Class A line level output amplifier



An affordable alternative to the original.



SPECIFICATIONS
WA76 Discrete Compressor


Input impedance - 600 ohms, bridges-T control (floating)Frequency Response ± 1 dB 20 Hz to 20kHzXLR and TRS inputs. XLR and TRS outputs55db of gainLess than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limitingSignal to noise ratio is greater than 74 dB at +25 dBmEIN -104.1 dbmAttack time, 20 microseconds to 800 microsecondsRelease time, 50 milliseconds to 1 secondMeter provides dB gain reduction and dB outputInternal power supply, external 24v AC power transformer19³ Rackmount chassis, 2U1-year warranty
