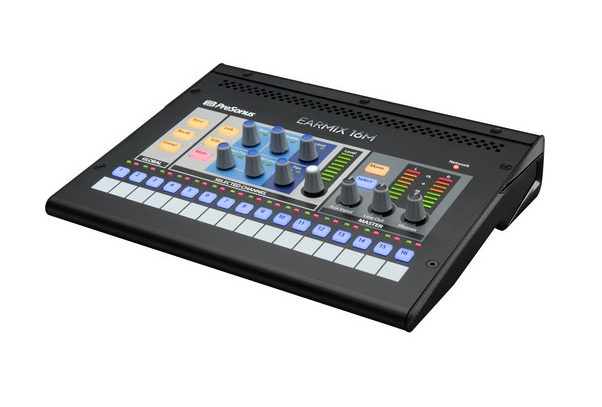

PreSonus EarMix 16M - 16x2 AVB-Networked Personal Monitor Mixer

Key Features


24-Bit / 48 kHz Operation
Loud and Clear Headphone Amplifier
Drives Low-Impedance, In-Ear Monitors
Limiter and 3-Band EQ on All Channels
Stereo Channel Linking and Grouping
Support for PoE Power
Two AVB Ethernet Ports
Eight-Segment Stereo Output Meter
1/8" Stereo Aux Input
Includes External Power Supply




The Presonus EarMix 16M is a 16-channel personal monitor mixer that is compatible with all StudioLive Series III mixers, as well as with other AVB-enabled systems. The EarMix 16M mixes 16 mono channels via AVB networking and provides stereo channel linking and channel grouping along with three-band EQ and limiting for each channel as well as the main mix. For outputs, the unit offers a pair of balanced 1/4" TRS connectors as well as a 1/4" headphone output with a loud, clear headphone amplifier capable of driving low impedance devices such as high-quality in-ear monitors. The two AVB jacks enable daisy-chaining up to 24 EarMix units with a StudioLive Series III mixer. The EarMix 16M can be powered by the included external power supply or over Ethernet (PoE) from a compatible switch.

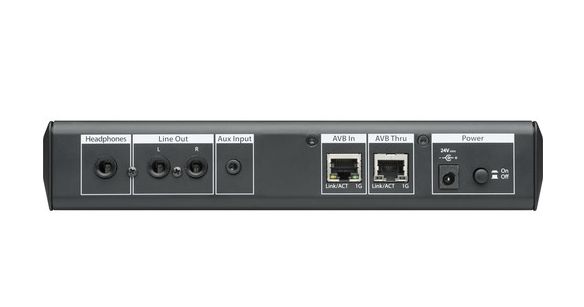

Analog Input/Output

1/8" stereo aux input
2 x balanced 1/4" TRS line outputs
1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

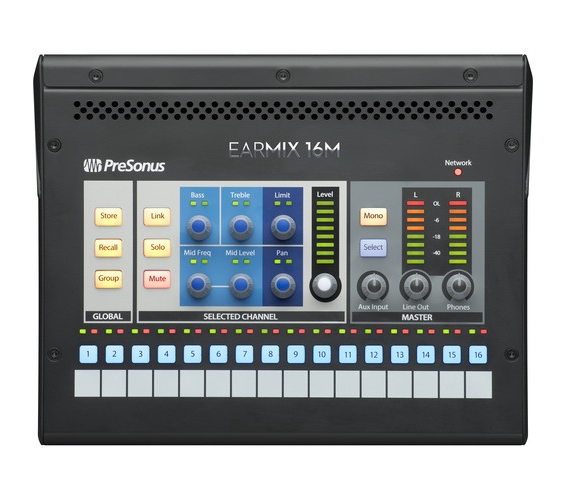

Meters, Controls, and Processing

3-band EQ with sweepable mid frequency on all channels and main mix
Limiter on all channels and main mix
Stereo channel linking
Channel grouping
Solo and mute
Mix scene Store and Recall; store up to 16 mix scenes locally
16 x signal present and clip LEDs (one for each input)
8-segment stereo output meter
Channel Level rotary control with 8-segment level indicator
Aux input level control
Independent monitor (line out) and phones level controls
Routing setup from StudioLive Series III consoles and UC Surface


Digital

16 x mono channels of input via AVB networking
2 x AVB Ethernet ports
24-bit, up to 48 kHz operation


Power

External 24 VDC power supply (included)
Support for PoE power


Physical

Optional mic stand mount (sold separately)
