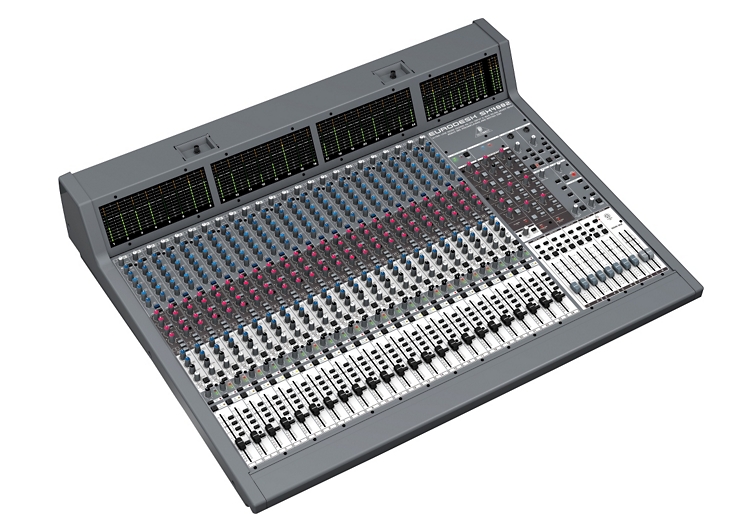

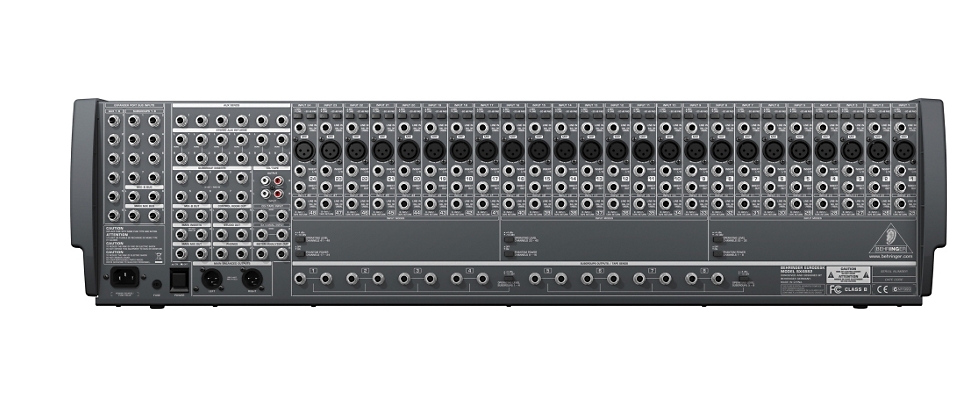

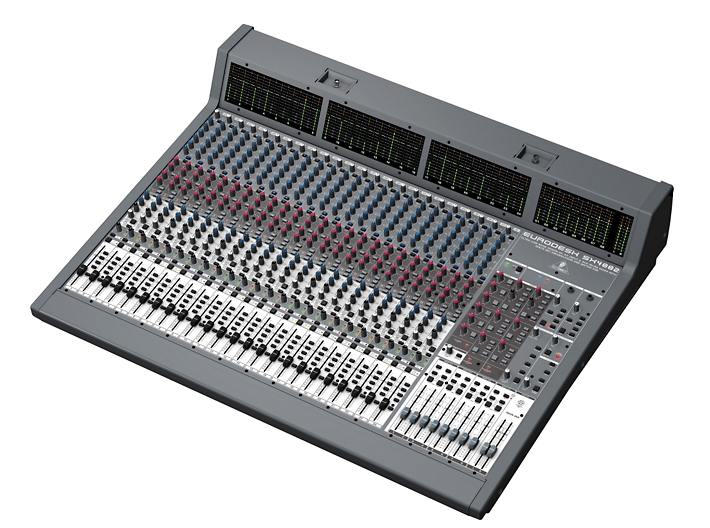

Behringer EURODESK SX4882 Mixer

OVERVIEW


Equally effective in the studio or for use at a live show.
The Behringer EURODESK SX4882 mixer is an excellent solution no matter if you're recording in the studio, running live house sound, recording a live show, or using it as a stage monitor mixing board. Designed with live performance versatility and recording necessities built in, this feature-packed mixing console combines years of every sound engineer's wants and needs into one high-performance machine. It may not get you free beer or groupies, but it rocks for live sound and recording.What is an in-line mixer?An in-line audio mixer is a mixer within a mixer. That's the reason you will notice this mixing board is labeled Channels 1-24 and Channels 25-48. It's really two 24-channel mixers in one.This "embedded mixer," called Mix B, is typically used in recording applications, but it has some useful live-sound features as well. In the studio, Mix B allows you to return all your multitrack tape channels back into channels on the board without losing any of your 24 main-input channels. This provides seamless playback and mixdown capabilities with just a few button pushes and no additional patching. In other words, no visible plumber cracks or untimely delays. Live, Mix B can be used to send a totally separate 2-track mix to a recording device, separate speaker zone or out to a broadcast feed, plus it functions as an additional monitor or effects bus.One reason you'll really appreciate having the in-line mixer is simple: live recording. If you've ever tried to make a recording off of the board during a live show, you know how well that doesn't work. Often input and output levels necessary for quality recording do not match the requirements of the live mix, where stage volumes factor in to the overall room sound. Getting around that issue used to require a splitter and second mixer just for recording. Now that is eliminated by having an in-line mixer in your live board.Va-va-va-versatility! No more creative patchingInput choices and routing options are not overrated. In fact, they are essential to managing technically complex instrumentation or multiple bands all patched into the same board. And while you may not need every patching option for every show, at least you know you have every input and output option you could ever need. You will be grateful your audio mixer has features like Insert points on every channel input, all Subgroups and on the Main outs. Direct Outputs on each channel are very useful too and may even make you a hero for about 5 minutes when you can provide a seemingly improbable solution by taking a direct split off the console to feed some other input source.The Behringer EURODESK SX4882 lets you use your creativity where it matters most”in getting the sound and mix you want, not on brain-twisting patching compromises and channel-routing puzzles. Complete versatility and accessibility is what it's all about and the EURODESK mixing board does not disappoint.All channels are indeed created equalThere's no scrimping and saving on this board. Every channel has every feature of every other channel. They are all the same. No more "if only" sighs of frustration to utter as you try to organize your inputs.As long as we're talking about channel strips, you might as well know that this mixing board has a big treat in store for you: two bands of semiparametric mid-range controls. This is two more than many boards offer and at least one more than most live sound boards. Gone is the dilemma of EQ-ing out the honk at 600 or adding a little upper-mid crispness at 2k to bring out the clarity. Now you don't have to compromise.British EQ for Incredible SoundExpensive British mixing consoles have long been praised for having sweeter, smoother, channel EQ than many other mixers provide. That's why the EQ circuitry on the EURODESK SX4882 is designed with British-style EQ, with wider curves and smoother phase characteristics. It maximizes effective frequency sculpting without harshness or gaping holes in the audio spectrum. This sweet feature will benefit your mixes”both live and in the studio. And it's worth repeating that there are two sweepable EQ bands, not just one. That's a must-have for many situations, and the EURODESK mixer delivers it.Mic pre's”the muck stops hereThe audio mixer's microphone preamp is one of the most important circuits in a mixing console. It boosts the low-level microphone signal to a line-level operating level and it's the first bit of processing applied to any mic signal. No doubt you've heard the phrase, "garbage in equals garbage out." This is really true when it comes to mic preamps. Common issues with lower quality mic pres include noise, distortion, low headroom, and unimpressed fans. BEHRINGER uses high quality XENYX preamps in our professional mixers. These are ultra-low noise, high-headroom preamps that can hold their own, even against expensive standalone boutique-style preamps.Buttons, buttons, buttonsThis baby's got buttons. Do buttons look cool? Yes. Is this why they are on the board? No. They're there because you need them all. During a live show you could use four of the subgroups for instrument and vocal sub-mixing to the PA and the other four could be for a tape submix, if you choose not to use Mix B as your tape mix. For use with a stereo PA, you still have 4 subgroups total to work with, and when used as a stage monitor console, the Behringer SX4882 mixer can provide up to 16 independent monitor mixes by combining the subgroups, Aux busses, and L/R Mix B.In the studio, the eight Subgroups allow maximization of recording inputs by allowing several channels to be mixed down to a smaller number of recording tracks. By combining channel inputs into subgroups which go directly out to tape, you have the ability to record even more than 24 discreet inputs. Also, the outputs of the subgroups have selectable operating output levels (+4dB or -10dB) to match the inputs of your recording device.The MeterBridge”functionality and stunningly coolOnce you've had a meterbridge on deck, it's hard to go back. Essential in the studio and amazingly cool live, the meterbridge provides visual confirmation of what is going on with all your signals with just a quick glance. Each input channel, all the subgroups and the main outputs feature 12-level LEDs organized incrementally with traffic-light-style color coding, so you can verify input and output levels, even on the Mix B channels.ApplicationsChurch ServicesRunning live sound in houses of worship has become a truly professional pastime with the advent of affordable, quality sound gear and the rise of congregations that require bigger and more capable sound systems. The multiple input and auxiliary send options of the SX4882 audio mixer are designed to accommodate a wide variety of performance needs, large and small.Worship services, choir, and music ensembles are easily mixed and recorded live. Go directly into your digital interface from the subgroup outs, Mix B or Main Out, right into your tracking software. CDs or DVDs can then be distributed to members of the congregation who may have trouble attending services.Corporate A/VCorporate AV is a truly multimedia experience, where there may be many different input sources”from a laptop, MP3, CD, DVD, television, projector, or camera. The EURODESK SX4882 has RCA tape in and two external 1/4" 2-track inputs, plus each channel has the choice of balanced or unbalanced, +4dB or -10dB input levels. Mix B provides additional input options for routing audio sources into the console. With 48 total channels and 82 total inputs, even the largest conventions can be accommodated. Corporate presentations often require sound reinforcement to a large room, typically with several pairs of speakers scattered throughout the auditorium. With eight subgroup outs, you have 4 sets of individual stereo controls, in addition to the main L/R out. Mix B provides an additional stereo mix, for a total of 6 separate stereo output options.




FEATURES

Ultra-low noise, high-headroom analog mixer for studio, live, front-of-house, monitor, corporate, and touring audio applications
True in-line concept with 24 independent Mix-B input channels, all with individual 2-band EQ, Level, Pan, and Mute
24 state-of-the-art XENYX mic preamps with switchable +48 V phantom power
Neo-classic "British" 4-band EQs with 2 semi-parametric mid bands for warm and musical sound
8 subgroups with independent Solo and routing functions simultaneously feed 16 multitrack outputs
Clip and -20 dB LEDs plus EQ In, Low Cut, Mute, Solo/PFL, Subgroup, and Main routing switches on all channels
6 Aux sends per channel: all switchable pre/post fader
Main Aux sends with Level controls and Solo functions
6 multifunctional stereo Aux returns featuring Level and Balance controls, Solo and extensive routing functions
Solo-In-Place with PFL function plus 2 independent phones sections plus full-featured monitor and talkback section with built-in microphone
Comprehensive Channel, Group, and Main insert points
Built-in meterbridge with meters for each channel, Subgroup and Main, monitoring either the channel or Tape return signal
Long-wearing 100-mm logarithmic-taper faders and sealed rotary controls
Expander port with universal jack connectors for optimal linking to other consoles
2 BNC connectors for 12V gooseneck lights
Internal autorange power supply for maximum flexibility (100-240 V), noise-free audio, superior transient response plus low power consumption for energy saving
High-quality components and exceptionally rugged construction ensure long life




SPECIFICATIONS
Main Channel StripInput Channels

Mic input type: electronically balanced, discrete input circuit

Mic E.I.N. (22Hz-22kHz)

@ 150 Ohms source: ”129.0dBu/-117.3dBqp
Input shortened: ”132.0dBu/-122dBqp
Distortion (THD + Noise): 0.007 % @ +4dBu, 1kHz, bandwidth 80kHz
Gain range: +10dB to +50dB
Max. input level: +12dBu (+32dBu @ PAD)

Line input

Type: electronically balanced
Gain range: 0dB to +40dB (-20dB to +20dB@ PAD)
Max. input level: +22dBu
Channel fader range: +10dB to -85dB / o
Aux send gain range: 0dB to +15dB / o

EQ

Hi shelving: 12kHz, ±15dB
Hi mid sweep: 300Hz to 20kHz, ±15dB
Lo mid sweep: 50Hz to 3kHz, ±15dB
Lo shelving: 80Hz, ±15dB
Lo cut (HPF): 75Hz, 12dB/oct.

Channel Direct Out

Maximum output level: +22dBu
Noise @ 0dB gain: -94dBu
Output impedance: 120 Ohms
Tape returns: 1/4" jacks, balanced/unbalanced, globally switchable from +4dBu to -10dBv

Channel Inserts

Maximum in/out +22dBu
Channel-to-channel crosstalk: -95dB @ 1kHz

Mix B channel strip

Gain range: 0dB to ±15dB / off
Hi shelving: 12kHz, ±15dB
Lo shelving: 80Hz, ±15dB

Subgroup SectionNoise

Bus noise fader @ 0dB: ”102.5dBr
24 chs. assigned (input B) & set @ 0dB gain: -92.5dBr
16 chs. assigned (input B) & set @ 0dB gain: -94.5dBr
Submaster output max. output level: +22dBu, balanced/unbalanced
Submaster insert max. output level: +22dBu
Submaster insert max. input level: +22dBu
Fader range: +10dB to -85dB / o

Main Mix SectionNoise

Bus noise fader @ 0dB: ”101dBr
24 chs. assigned (input B) & set @ 0dB gain: -92.5dBr
16 chs. assigned (input B) & set @ 0dB gain: -94.5dBr
Max. output level: +28 dBu, balanced/
output level: +22 dB, XLR connector, balanced/+22dBu, 1/4" jacks, unbalanced
Aux returns gain range: 0dB to +20dB / o
Aux sends max. output level: +22 dBu

System Data

Distortion (THD + Noise): 0.007% @ +4dBu, 1kHz, bandwidth 80kHz;<0.02%, 22Hz to 22kHz at normal operating levels, any input to any output, bandwidth 80kHz

Frequency response:

20Hz to 40kHz: ± 1dB (any input to any output)
10Hz to 120kHz: ± 3dB

Noise

@fader 0dB: -102.5dBr
24 chs. assigned (input B) & set @ 0dB gain: -92.5dBr
16 chs. assigned (input B) & set @ 0dB gain: -94.5dBr

Power Supply

Power consumption: 250W
Mains Voltage: 100 - 240 V, (50/60Hz)
Fuse: T3, 15A H 250V
Mains connector: Standard IEC receptacle

General

Dimensions (HxWxD): approx. 2.8"/7.8" x 37" x 29.5", approx. 72mm x 220mm x 750mm
Weight: 61.2lb./27.72kg
