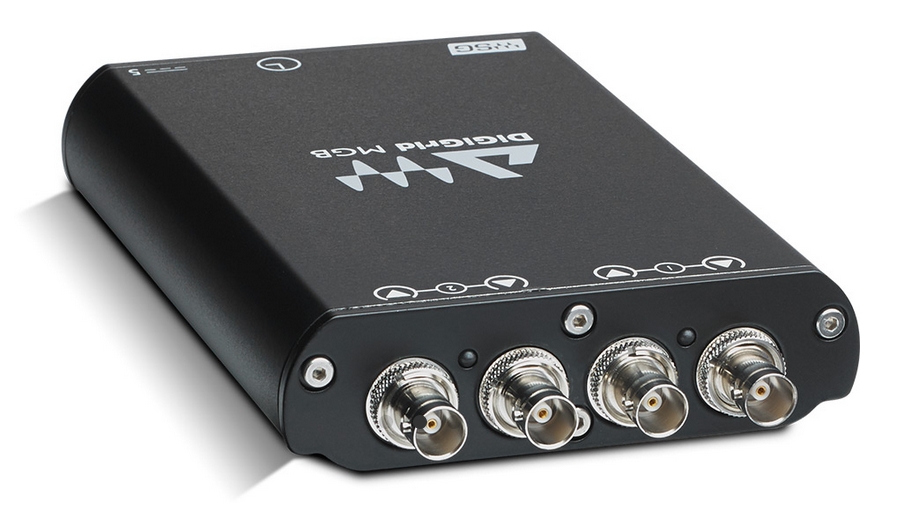

DiGiGrid MGB MADI to SoundGrid BNC

Coaxial MADI-to-SoundGrid Interface
The DiGiGrid MGB coaxial MADI interface lets you connect any coaxial MADI device to the power of Waves' SoundGrid networking/processing platform. Record, process, and play back up to 128 channels using Waves and third-party plugins, all with ultra-low latency. You can even record to two computers concurrently - one for virtual soundcheck, and the other for backup. So whether you're on the tour bus, in your hotel room, or at the airport, setup your next show, quickly and conveniently, with just your laptop and DiGiGrid MGB coaxial MADI interface.

DiGiGrid MGB Coaxial MADI-to-SoundGrid Interface Features at a Glance:

Coaxial (BNC) MADI-to-SoundGrid Interface
Up to 128 channels
Record to two computers simultaneously
Ultra low-latency: 0.8 milliseconds
Connect with one Ethernet cable (Cat 5e/6)
Run hundreds of real-time plugins (SoundGrid DSP Server and 1GB switch sold separately)
ASIO & Core Audio compliant
Supported sample rates: 44.1, 48, 88.2, 96 kHz
112/128 channel I/O @ 48kHz
56/64 channel I/O @ 96kHz
56 and 64 channel mode support
Supports double wire (48k frame) and single wire (96k frame) @ 96kHz
Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (SoE), Internal
1 SoundGrid RJ45 Ethernet port
Reset switch
DiGiCo Stage Rack channel 57 support


Tech Specs

Manufacturer Part Number: MGB

www.music-blvd.com $2999
