AUDIO-TECHNICA PRO 88W

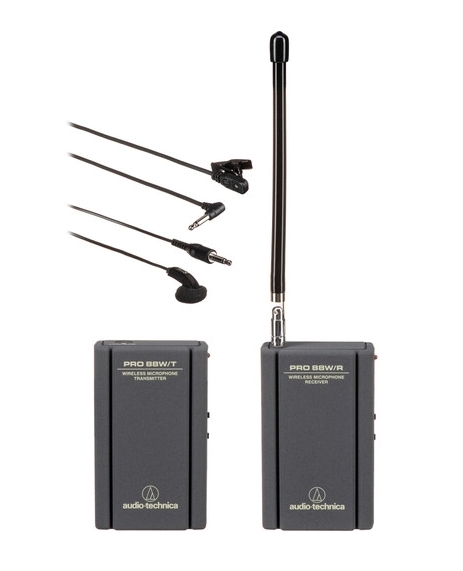

AUDIO TECHNICA PRO 88W VHF wireless microphone systems are designed for camcorder and other applications requiring a small, easily portable wireless. Equipped with a flexible detachable antenna and a choice of two transmitter and receiver frequencies on each system, the small and inconspicuous VHF wireless system will mount on the light shoe of camcorders or on the back of a camera itself with a Velcro attachment. For fixed installations, a 9V DC input is available on the receiver. Eight VHF channels are available for interference-free operation in virtually any location.

Provides freedom of movement for video production, computer applications and business presentations
Two switchable frequencies for interference-free operation
High-band VHF operation for superior sound
Normal operating range 100'; up to 300' under optimum conditions
Durable, flexible antenna can be positioned for best reception
Real-time monitoring capability with included earphone
Rugged design and construction with handsome non-reflective finish
Quick and reliable mounting system for camcorder use
Receiver and transmitter are each powered by a single 9V battery

OVERALL SYSTEM SPECIFICATIONS

Operating Frequencies

PRO 88W-829, PRO 88W-830T13 (169.445 MHz & 170.245 MHz)T24 (169.505 MHz & 170.305 MHz)T57 (171.045 MHz & 171.845 MHz)T68 (171.105 MHz & 171.905 MHz)TVHF (179.400 MHz & 180.600 MHz)
PRO 88W-R35T24 (169.505 MHz & 170.305 MHz)


Number of Channels

2


Modulation Mode

FM


Frequency Response

n/a



RECEIVER SPECIFICATIONS

Reception System

FM Superheterodyne


Reception Sensitivity

2 µV for 30 dB S/N


Output Connector

1/8" (3.5 mm) TRS


DC Input

9V DC (center-positive)


Battery

9V alkaline (not included)


Current Consumption

50 mA


Battery Life

8 hours nominal


Dimensions

4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D


Net Weight

3.5 oz (100 grams)



BODY-PACK TRANSMITTER SPECIFICATIONS

Modulation

Frequency Modulation


Modulation Sensitivity

6 mV input for full deviation


Battery

9V alkaline (not included)


Current Consumption

50 mA


Battery Life

8 hours nominal


Dimensions

4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D


Net Weight

2.8 oz (80 grams)
