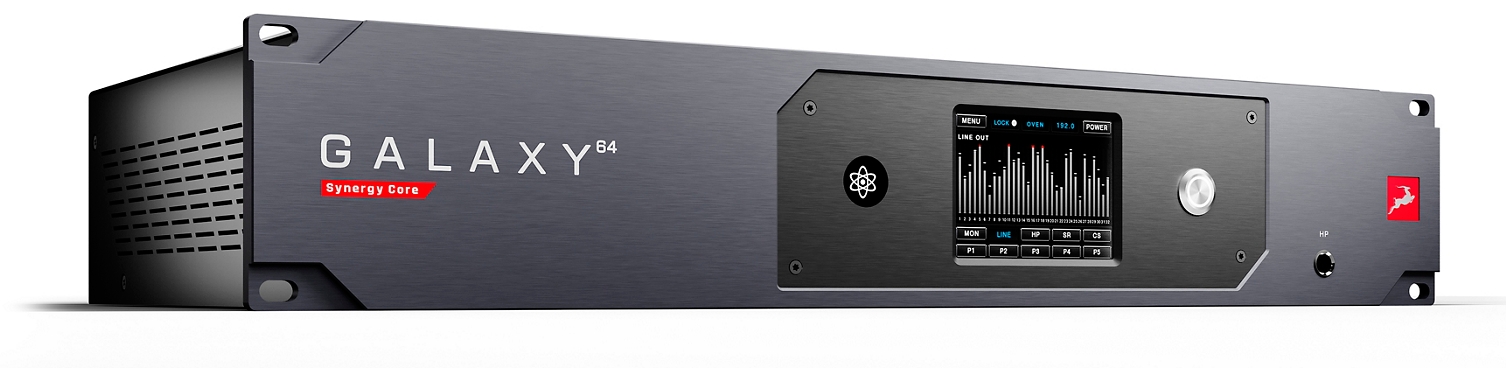

Antelope Audio Galaxy 64 Synergy Core USB-C Audio Interface

Unbeatable flexibility with the world’s first 64-channel AD/DA converter.
Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.




FEATURES
The interface is designed to be the hub of your entire recording environment that eliminates the need for any expansion modules and cards, thus centralizing your entire setup. Switching from project to project is effortless with the fast recall of presets and adapting to different workflows is made easier by allowing you to address numerous applications using a single hardware frame.

SPECIFICATIONS


A/D LINE INPUT
Input Connection: 8 × DC-Coupled D-Sub 25-pin
With AC/DC Coupling Switch (TASCAM Standard)
I/O Channel Count: 64 Channels
Input level trim: 14 dBu to 24 dBu in steps of 1 dB
Dynamic Range: 124 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -112 dB
Impedance Load: 11.2 kOhms
D/A LINE OUTPUT
Output Connection: 8 × DC-Coupled D-sub 25-pin
(TASCAM Standard)
I/O Channel Count: 64 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 128 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
D/A MONITOR OUTPUT
Output Connection: 2 × ¼” 6.35 mm Jack (3 pin)
Chanel Count: 2 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 130 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
HEADPHONE OUTPUT
Output Connection: 1 × ¼” 6.35 mm Jack (3 pin)
Output level: 20dBu
Dynamic Range: 122 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 120 Ohms
DIGITAL INTERFACE – THUNDERBOLT™
Interface Connection: 2 × Thunderbolt 3 Ports
I/O Channel Count: 64 Channels
Daisy-chain: Supported
Remote Control: Supported, (Over USB Type-C)
Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
Control Panel Support: Supported
Thunderbolt Cable: Not Included
DIGITAL INTERFACE - DANTE®
Interface Connection: 2 × RJ-45 Ports, I/O
I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
Redundancy: Supported
Connectivity: Dual Ethernet, switched or redundant
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - HDX
Interface Connection: 4 × HDX Ports,
I/O Channel Count: 128 Channels (32 Per Port)
Primary/Secondary ports: 4 Primary
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
Delay Compensation: Supported
Manual Delay Compensation: Supported, (up to 128 samples)
Session I/O Support: Yes (16 ×16)
DIGITAL INTERFACE - MADI
Interface Connection: 2 × Optical SC Connectors
MADI Mode: Dual Wire, Optical
SMUX: Supported
MADI Protocol: AES10-2003
I/O Channel Count: 64 Channels @44.1/48.0 kHz
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - S/PDIF
Interface Connection: 2 × RCA Connectors
S/PDIF SRC: Supported
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - AES/EBU
Interface Connection: 2 × XLR Connectors
AES Mode: AES/EBU
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
CLOCKING SYSTEM
Clocking Technology
4th Generation Acoustically Focused Clocking,
64-Bit Jitter Management DDS
Word Clock Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Word Clock Output: 6 × Output @ 75 Ohms 3Vpp on BNC
Loop-Sync Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Loop-Sync Output: 1 × Output @ 75 Ohms 3Vpp on BNC
10M Atomic Reference Input: 1 × Input @ 75 Ohms 1Vpp on BNC
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM

www.music-blvd.com $8995
