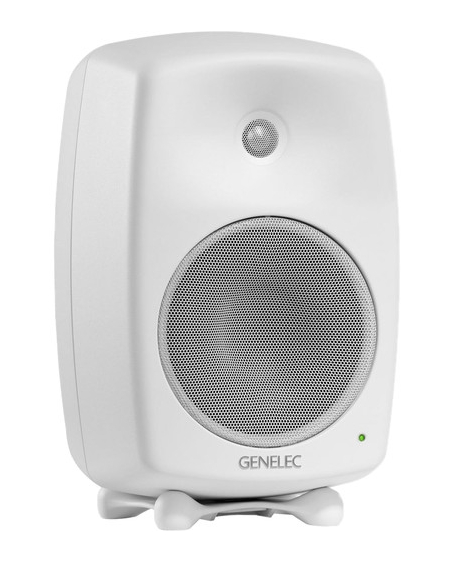

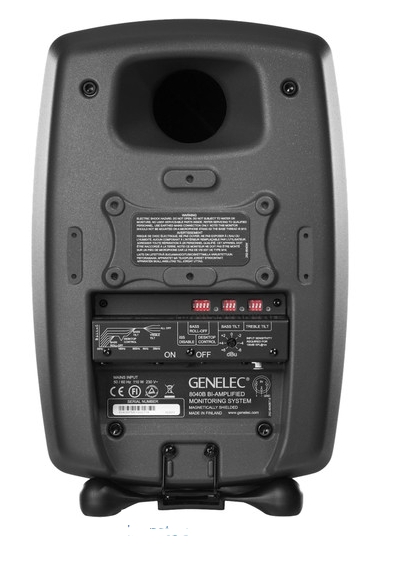

Genelec 8040B 6.5 2-Way 180W Active Studio Monitor (Single, White)

Key Features


6.5" Woofer, 3/4" Metal-Dome Tweeter
90W LF Amplifier, 90W HF Amplifier
Proprietary Waveguide
Bass Reflex Port
Treble and Bass Controls
Low-Diffraction Aluminum Enclosure
Balanced XLR Input
Automatic Power-Saving Mode
Multiple Mounting Options
Includes Isolation Stand


Genelec 8040B Specs


Studio Monitor



Monitor Type
Active 2-Way


Enclosure
Bass-Reflex, Shielded


Drivers
HF Driver: 1 x 0.75" / 19 mm TweeterLF Driver: 1 x 6.5" / 165 mm Woofer


Amplification
1 x HF Amplifier: Rated at 90 W1 x LF Amplifier: Rated at 90 W





Performance



Frequency Range
45 Hz to 21 kHz (at -3 dB)


Frequency Response
48 Hz to 20 kHz ± 2 dB


Maximum Sound Pressure Level (SPL)
115 dB


Signal-to-Noise Ratio
100 dB


Total Harmonic Distortion (THD)
0.05%


Analog Input Sensitivity/Gain
+6 to -6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 10 dBA (at 3.28' / 1 m)





Signal Processing



EQ
1 x HF Tilt: -4 to +2 dB at 15 kHz1 x LF Tilt: -6 to 0 dB at 100 Hz (2 dB Increments)1 x LF Shelf: -6 to 0 dB at 45 Hz (2 dB Increments)





Crossover



Crossover Frequency
3 kHz





Connectivity



Audio I/O
1 x XLR Analog Input (10 Kilohms)





Power



AC Input Power
100 to 230 VAC, 50/60 Hz


Power Consumption
0.5 W (Standby)10 W (Idle)110 W (Maximum)





General



Enclosure Material
Aluminum


Dimensions (W x H x D)
9.3 x 14.4 x 8.8" / 237 x 365 x 223 mm


Weight
20.7 lb / 9.4 kg





Packaging Info



Package Weight
23.5 lb


Box Dimensions (LxWxH)
17.5 x 12 x 12"
