Make Noise MATHS Complex Function Generator Eurorack Module

Mathematical, Musical Analog Function Module

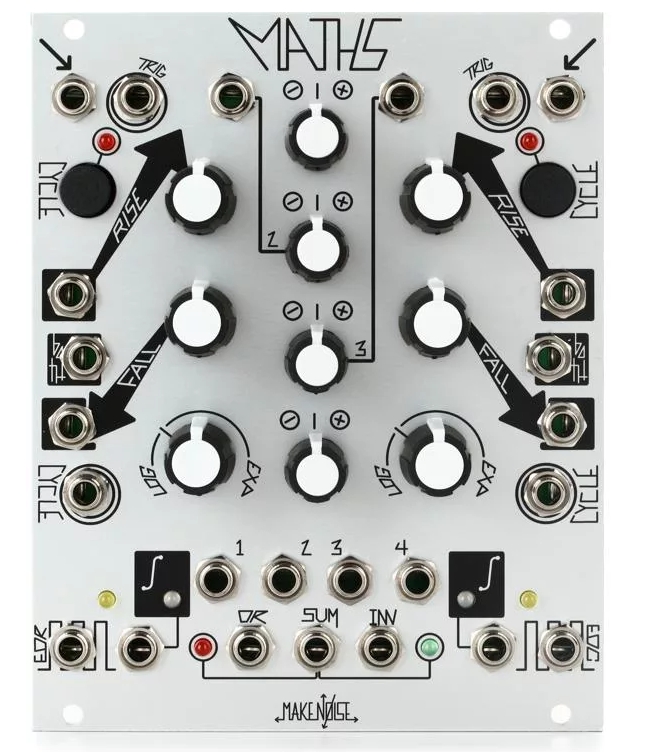

The quad-channel Make Noise Maths is a Eurorack-format function generator module — essentially, an analog computer designed for making music — and it's laid out intuitively from top to bottom with channels one and four in functional near-symmetry. Channels one and four can scale, invert or integrate incoming signal, and channels two and three can scale, amplify, and invert the incoming signal. Even with no signal applied, all four channels of Maths can produce a wide spectrum of linear, logarithmic, and exponential functions. Among other improvements, this generation of Maths features upgraded LED indicators to show both positive and negative voltages and increased display resolution.


Small computer, now with increased capability
Modular synth pros at Sweetwater are amazed by this computer's abilities. With Maths, you can: create VC envelopes or LFO with anywhere from a 20+ minute cycle to 1kHz frequency; apply lag, slew or portamento to CV for cool slurred effects; change modulation depths and modulate backward; and even create more complex modulations from combinations of up to four control signals. But that's not all! You get on-command initiation of musical events such as tempo ramp-up or -down as well as musical note division and/or flamming. Generation two improvements include: an inverted Sum output; improved logarithmic range in the Vari-response control (East Coast-style portamento!); upgraded LED display resolution/functionality; Unity signal output, giving you two variations of output; and Cycle input that allows for VC of the cycle state in channels one and four (cycles on Gate High and upon engagement of Cycle button).


Make Noise Maths Eurorack Function Generator Module Features:

20HP music-making analog computer in Eurorack module form expands your creativity
Performs myriad linear, logarithmic, and exponential triggered or continuous functions
Lets you generate VC envelopes or LFO for musical patches
Amplify, attenuate, integrate or invert incoming signal for greater creative flexibility
Apply lag, slew, or portamento to control voltages for cool slurred effects
Combine up to 4 CV for more complex modulations
EOR and EOC pulses with LED state indicators make more complex functions possible
Upgraded LEDs indicate activity on all outputs for visual reference
Made in Asheville, NC, USA
Note: requires a Eurorack case and power supply (sold separately)


Tech Specs

Type:Multi Function Generator Module
Depth:0.94" (24mm)
HP Size:20HP
Power Usage:±12V DC, 60mA
Power Supply:Requires Eurorack case and power supply
Manufacturer Part Number:MATHS
