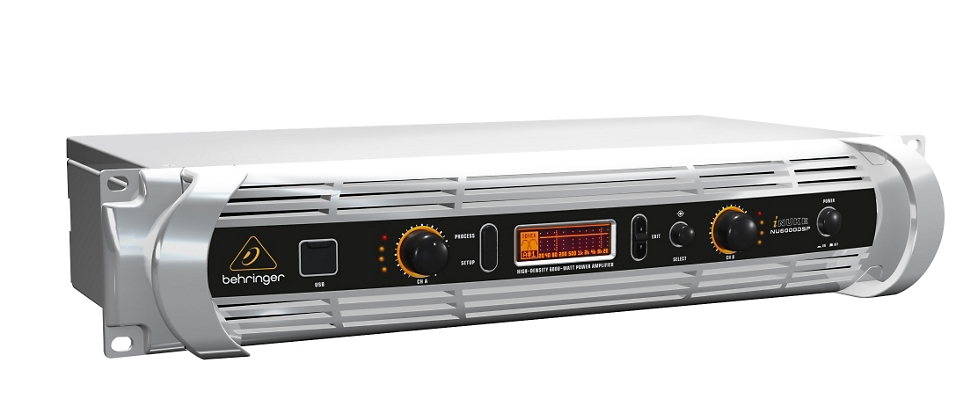

Behringer iNUKE NU6000DSP

OVERVIEW


Lightweight, high-density 6000-watt power amplifier with DSP control and USB interface.
The NU6000DSP, part of the iNUKE series from Behringer, is an extremely lightweight and durable power amplifier with DSP control and USB interface. The NU6000 has a œback-to-front ventilation system and incorporates High-Density Class-D components with "near-zero" thermal build-up, which allows the unit to run cool and avoid the need for massive heat sinks. Each channel has their own independent DC, LF, and thermal overload components that will automatically protect the amplifier and speakers to avoid any damage to your system.iNUKE DSP Series amplifiers come ready for action right out-of-the-box. The built-in DSP and 24-bit/96kHz converters ensure quality signal integrity with a broad dynamic range. DSP functions include a delay for delay-line loudspeakers, crossover, EQ (eight parametric, two dynamic), and dynamics processing with lockable security settings. A convenient front panel LCD display allows you to setup and make adjustments directly at the amplifier, without the need for a PC. All iNUKE DSP models can also be set up, controlled and monitored via the front panel USB connector.The exterior of the NU6000 is manufactured with a sturdy metal housing that secures all of the internal components. The rear panel of the NU6000 has XLR and TRS input connections, and also features professional twist-lock speaker outputs that provide versatile and secure connections for your system. There are 4-segment signal and limit LED' on the front of the NU6000 that help you visually monitor performance levels. The VU6000 operates in stereo or dual-mono modes, and has a switch-mode power supply that provides noise-free audio with good transient response and low power consumption. The iNUKE series VU600 offers a durable and affordable power amplification solution for your sound system.




FEATURES

Delivers 2 x 3000 Watts into 4 Ohms, 2 x 1500 Watts into 8 Ohms and weighs less than 12lb. / 5.5kg
Cool-running High-Density Class-D technology with "near-zero" thermal buildup
Switch-mode power supply for noise-free audio, good transient response and low power consumption
High-performance DSP and 24-bit/96kHz converters deliver quality signal and dynamic range
DSP section features delay, crossover (3 filter types, up to 48dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
Front panel LCD display enables setup and adjustment without PC

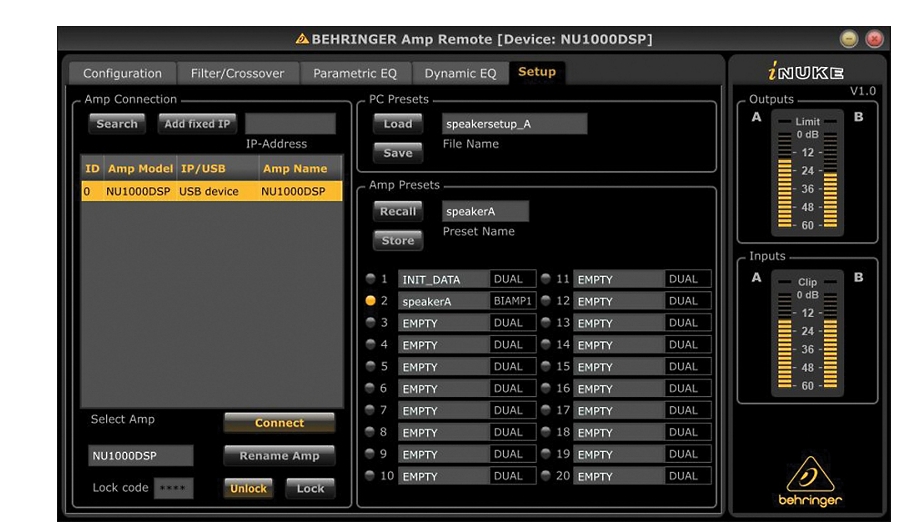

Can be set up, controlled and monitored via front panel USB connector. Powerful remote software downloadable at behringer.com
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
4-Segment Signal and Limit LEDs to monitor performance
XLR and 1/4'' TRS combination input connectors for compatibility with any source
Twist-lock speaker connectors make sure cables are secure
Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
œBack-to-front ventilation system prevents thermal buildup for reliable operation

SPECIFICATIONS


Power Rating: 1500W/Channel @ 8 Ohms Stereo | 3000W/Channel @ 4 Ohms Stereo
Damping Factor: > 140 @ 8 Ohms
Input Impedance: 10k Ohms Unbalanced | 20k Ohms Balanced
Frequency Response: 20Hz - 20kHz +0/-2dB
Signal-to-Noise Ratio: > 100dB
Total Harmonic Distortion (THD): < 0.2%
Converters: 24-bit/96kHz
Connectors:
2 x XLR/TRS Combo Inputs
2 x Twist-Lock Speakon Outputs
1 x USB Port
1 x AC Power Input
Controls:
1 x Power Switch
2 x Detented Gain Controls
Indicators:
2 x Red/Amber Power Indicators (Backlit Gain Controls)
1 x Limit LED per Channel (0dB, Full Scale)
3 x Signal LEDs per Channel (-24, -12, -6dB)
Display: Backlit LCD
DSP: Delay, Crossover, EQ, and Dynamics Processing
Cooling: Continuously Variable Speed Fan, Back-to-Front Airflow
Protection:
Thermal and DC Protection
Stable into Reactive or Mismatched Loads
On/Off Muting, DC Fault Power Supply Shut Down
Power Requirements:
USA/Canada: 120V, 60Hz (T 30 A H 250V)
UK/Australia/Europe: 220-240V, 50/60Hz (T 20 A H 250V)
Korea/China: 220-240V, 50/60Hz (T 20 A H 250V)
Japan: 100V, 50/60Hz (T 30 A H 250V)
Power Consumption: 620W @ 4 Ohms
Dimensions (WxDxH): 19 x 12-3/16" x 3-11/16 (482mm x 310mm x 94mm)
Weight 11.7 lb. (5.3kg)
