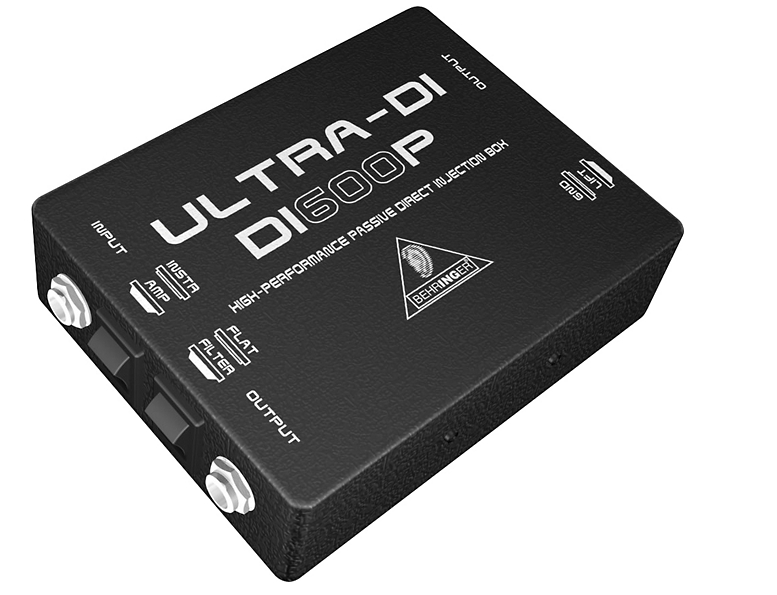

Behringer ULTRA-DI DI600P Passive Direct Box

FEATURES

Connect your guitar or bass directly to your mixer without losing tone due to impedance mismatches, long cables and cycle hum
Converts any unbalanced line-level signal to balanced mic-level output
Provides impedance and signal matching for the direct connection of instruments to amplifiers and mixers
Allows the use of long cables without losing high frequencies
Thru/Out jack lets you send the unbalanced signal to an onstage amplifier while the balanced signal is routed to the mixer
Switchable Inst/Amp input for connecting instruments or amplifier outputs with up to 3,000 watts
Filter switch reduces annoying hiss and buzz
Ground lift switch eliminates typical ground loop problems such as hum
High-performance transformer for ultimate signal integrity
Ultra-compact, all-metal and road-suitable housing




SPECIFICATIONS


Frequency response 40 Hz (-3) to 20 Khz
THD +N (distortion) 0.0003% @ 1kHz input level +4dBu
Input 1/4" TS (unbalanced)
Level change (input to output) -20 dB
Output Balanced XLR
Impedence ratio (input to output) 110:1
Inst/amp switch 30 dB pad
Filter switch low pass @ 7.5 kHz (-3 dB)
Dimensions (HxWxD) 1.4" x 5" x 3.75 "(35mm x 128mm x 95mm)
Weight Approx. 0.66 lbs (0.03 kg)

THBS www.music-blvd.com $29
