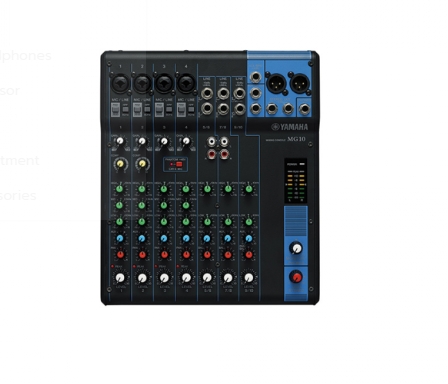

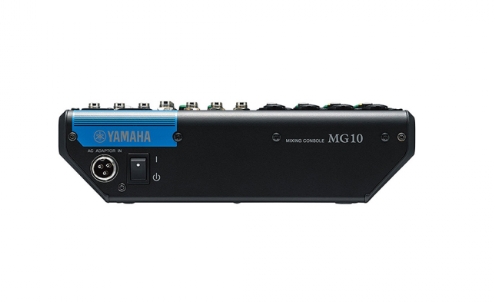

YAMAHA MG 10

DESCRIPTIONYAMAHA MG10 10-Channel Mixing Consoleเครื่องผสมสัญญาณเสียง มิกเซอร์แบบอนาล็อค YAMAHA MG10 10-ชาแนล Mixing Console 4 Microphone Preamps, 3 Dedicated Stereo Line Channels, 1 Aux Send, EQ, and 1-knob Compressors, AD switch on mono inputsThe MG10 from Yamaha is a compact ten-input mixer for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4″ line inputs with stereo level controls.Each of the four mic/line inputs is equipped with a 3-band EQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers.The MG10 mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4″ headphone output with level control for personal monitoring, as well as additional TRS 1/4″ stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.FEATURES- 10-Channel Mixing Console- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)- 1 Stereo Bus 1 AUX (incl. FX)- “D-PRE” mic preamps with an inverted Darlington circuit- 1-Knob compressors, PAD switch on mono inputs- +48V phantom power, XLR balanced outputs Metal chassis
