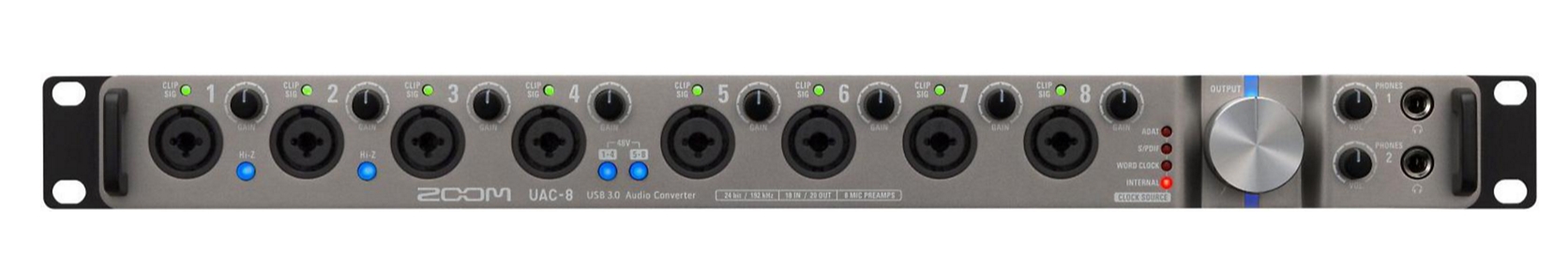

Zoom UAC-8 USB 3.0 Audio Converter

SuperSpeed USB 3.0 audio converter for Mac and PC.
There’s a whole new world of possibilities for Mac and PC Creators — high-speed, high-resolution, and low-latency. Upgrade your rig with the rack-mountable UAC-8, and add 18 inputs and 20 outputs to your USB 3.0-equipped Mac or Windows computer—even your iPad. Plug in a microphone, line-level device, or instrument and start bringing your ideas to life, or take the UAC-8 onstage to enable high-res audio playback, all the way up to 24-bit/192 kHz. USB 3.0 SuperSpeedThe SuperSpeed USB 3.0 transfer protocol used by the UAC-8, with a speed of 2.0 ms roundtrip @ 96 kHz / 32 samples, is ten times faster than USB 2.0 and six times faster than FireWire 800. That not only ensures low latency, it provides a data stream that's unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source. The Hardware INPUTSThe UAC-8 provides a wide variety of both analog and digital connectors. 8 front panel combo XLR/TRS inputs accept mic- and line-level signals, and you can even plug instruments directly into Inputs 1 and 2. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.OUTPUTSThe UAC-8 has dual balanced analog TRS output jacks for connection to monitors, and there are also 8 discrete balanced TRS analog line outputs for multichannel monitoring or connection to external effects devices. A large front-panel Output knob offers fast control over output level, and there are two independent ¼" stereo headphone jacks, each with its own dedicated volume control, for private monitoring.DIGITAL I/O8 ADAT and stereo S/PDIF digital inputs/outputs allow for the connection of up to 10 external channels, and built-in Word Clock enables easy integration into any system. In addition, MIDI In and Out is provided to allow interfacing with devices such as electronic keyboards and drum machines.Upsampling, Standalone ModeThe UAC-8 uses high-end components such as the AKM AK5388 analog-to-digital converter and AKM AK4413 digital-to-analog converter. In addition, the UAC-8 performs 4-times upsampling during both analog-to-digital and digital-to-analog conversion. In other words, when the sampling frequency is set to 44.1 kHz or 48 kHz, the UAC-8 processes the signal at high resolution 176.4 kHz or 192 kHz. For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity. In standalone mode, the UAC-8 can be used as an 8-channel mic preamp and analog-to-digital or digital-to-analog converter without being connected to a computer.Extend Your Capabilities with SoftwareUAC-8 MixEfx is a free Macintosh and Windows compatible application designed specially by Zoom for the UAC-8. It provides a comprehensive onscreen mixer, with independent level, phase reversal, and panning control for each channel. UAC-8 MixEfx also allows you to freely route all inputs to all outputs and to create custom mixes. In addition, MixEfx features effects like reverb and echo, and complete mixes can be stored in three different memory slots, allowing instant recall. Professional Editing with Every InterfaceThe Zoom UAC-8 comes with a free download license for Steinberg’s Cubase LE music production software, providing not just the ability to capture incredible high-resolution / low-latency audio in every box, but to do spectacular things with it. Take your recordings to a more professional level. Steinberg’s powerful and state-of-the-art audio software used by creators around the world now comes with every Zoom UAC-2 and UAC-8 purchase.




FEATURES

18in/20out SuperSpeed USB 3.0 audio interface
Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
Support for recording and playback of up to 24bit/192 kHz highresolution audio
Low latency audio streaming
8 combo balanced XLR/TRS analog input connectors accept both mic and linelevel signal
Highperformance mic preamps with up to +60 dB of amplification
HiZ switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
Independent gain controls and clip LEDs for each input
Switchable +48V phantom power (INPUTS 14, INPUTS 58)
10 balanced TRS output jacks for connection to mixers, amplifiers, selfpowered speakers, headphones, or effects devices
Dual front-panel 1/4" headphone outputs with dedicated volume controls
Large knob output volume control
4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
Asynchronous transfer system unaffected by computer jitter
S/PDIF IN/OUT: 2IN / 2OUT, up to 24bit/192 kHz
ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
Word Clock in/out
Clock source indicator
MIDI in/out
Rack-mountable (1U space)
Robust metal housing
Works with all USB 3.0-equipped Mac and Windows computers and Apple iPad*

www.music-blvd.com $600
