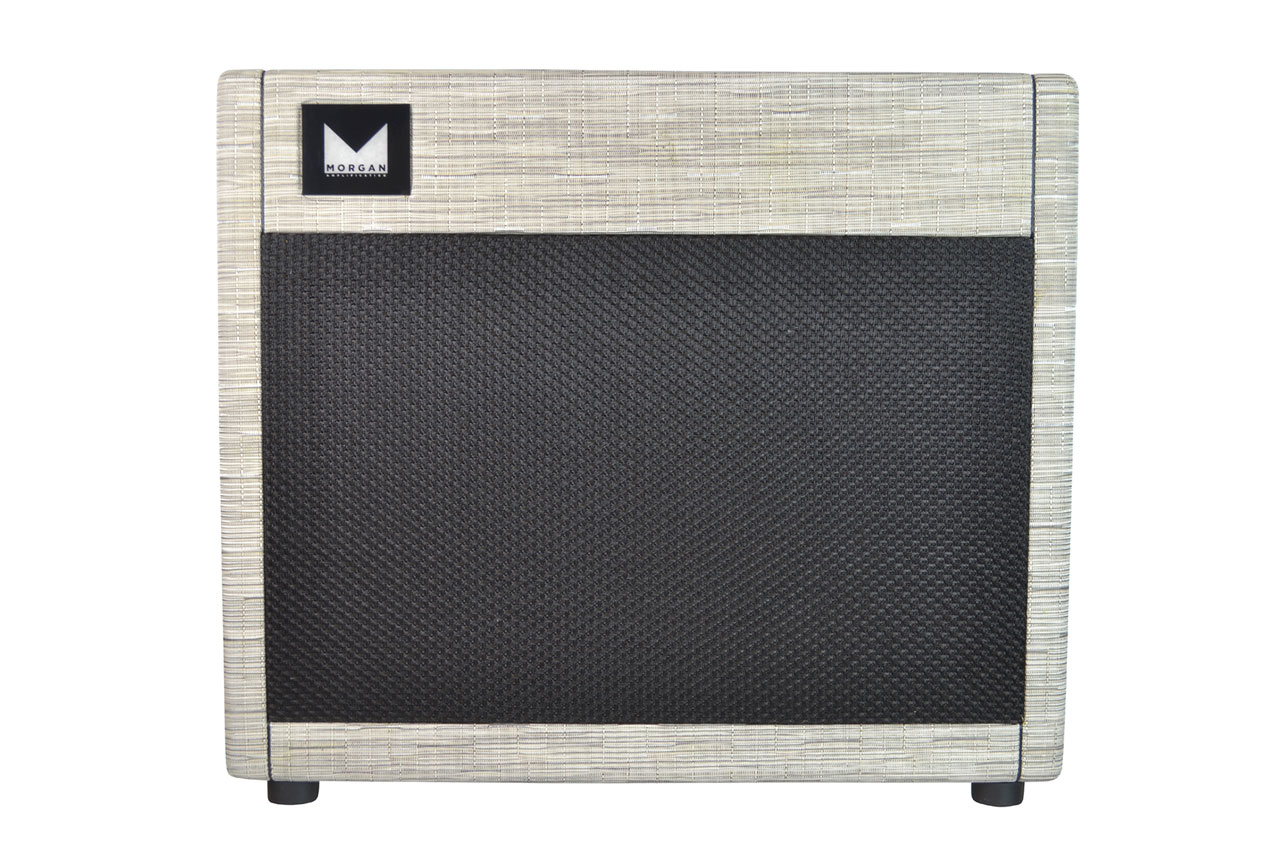

Morgan Amplification AC20 Deluxe Combo

Morgan Amplification AC20 Deluxe Combo
The Morgan AC20 Deluxe Amp is essentially an all hand-wired, hand built, fully modded version of his very popular AC20. In fact, now that this is available, he is rarely asked to build the normal AC20 these days. What sets this amp apart from the Morgan AC20 is four things.
1) A switch on the back allowing the guitar player to switch from an EF86 preamp circuit to a 12AX7.
2) Normal *or* Brilliant channel voicing.
3) Power Scaling.
4) White Faceplace as opposed to the AC20's Black Faceplate.
So how do we describe the AC20 Deluxe's tone? Well, Joe Morgan based this amp off of the "Normal" channel of an AC30, and intentionally voiced it a bit darker. All the wonderful chime and growl is still there without the annoying "icepick in the ear" that plagues most Vox designs. And what may be the part is it's only 20 watts. An AC30 is 36 watts, and to get real tone out of them they have to be cranked! Believe me, 36 watts of EL84 power can peel paint off the walls. With the AC20 Deluxe, you get an amp that is plenty loud enough to play over a typical drummer without having to blow windows out of the room to get the tone you need.

Morgan Amplification AC20 Deluxe Combo Features :

Power Output : 20 Watts Cathode Biased
Output Tubes : 2 x EL84
Preamp Tubes : 1 x EF86, 2 x 12AX7
Rectifier : Tube - GZ37
Controls : Volume, Cut, Power Level (Power Scaling)
Additional Controls : Bright Switch, Normal / Brilliant Switch, EF86 / 12AX7 Switch
Features : Mercury Magnetics Trandsformers, Hand Made Coupling Caps
Head Sims and Weight : 17" Wide, 9.75" High, 7.5" Depth - 23 LBS
1x12 Dims and Weight : 24" Wide, 20,75 High, 10" Depth - 49 LBS
1x12 Speaker Config : 12" Celestion Alnico Blue
