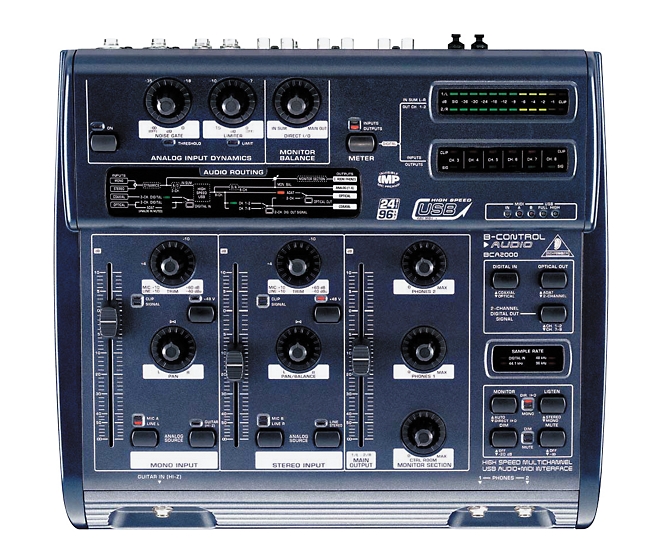

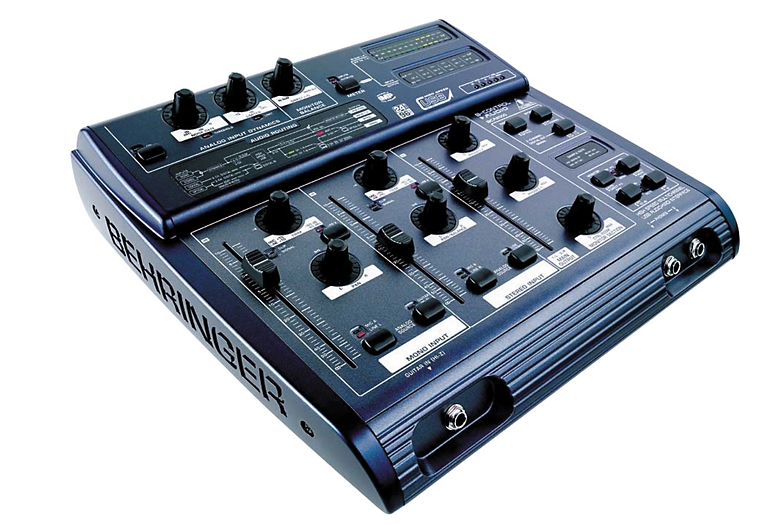

Behringer BCA2000 B-Control Audio

OVERVIEW
The intuitive way to control and create music.
The Behringer BCA2000 B-Control Audio is a high-speed USB 2.0 multichannel audio MIDI control interface that raises your performance to a whole new level. Not only does it provide an intuitive control surface with 3 - 100mm faders for audio/MIDI sequencing, it also features a high-performance analog input section that has 2 state-of-the-art studio-grade IMP "Invisible" Mic Preamps with +48V phantom power, plus line and Hi-Z guitar inputs. Combine this with its versatile digital input and output formats like ADAT, ADAT S/MUX, AES/EBU and S/PDIF (including Dolby Digital and dts options) and you have an unlimited array of interfacing capabilities.You can simultaneously use 3 analog input sources (1 mono + 1 stereo) with digital input sources. Its ultra-flexible input/output configuration is supported by a comprehensive LED audio routing indicator plus button (status) LEDs. Input signal distortion and A/D converter overload are prevented by the adjustable studio-grade analog input dynamic control (noise gate + limiter).The BCA2000's fully equipped USB/MIDI interface with one MIDI input and 2 MIDI outputs is individually selectable for 16/32 MIDI channels. Plus, full multichannel playback is enabled at 24-bit/96kHz. There is a high-resolution 2x12 element LED level indicator for stereo In/Out signals plus 2-element LED level indicator for input and output channels 3 through 8. The high-speed USB 2.0 interface with 24-bit/96kHz supports 8 In and 8 Out channels simultaneously (analog and digital) with low-latency ASIO 2 and WDM drivers.Simply connect your B-CONTROL to your computer via high-speed USB 2.0. Then connect your keyboard, guitar, and mic. True audiophiles will surely appreciate the fully equipped master and monitor sections with 100mm fader, individual level controls for 2 speakers, 2 phones, and low-latency direct monitor function plus separate dim, mute, and mono functions.


FEATURES
Analog input section with 2 studio-grade IMP mic preamps, +48V phantom power plus line and Hi-Z guitar inputs
LED audio routing indicator plus button status LEDs support a comprehensive flexible input/output configuration
Adjustable studio-grade analog input dynamic control (noise gate/limiter) prevents distorted input signals or A/D converter overload
Fully equipped USB/MIDI interface with one MIDI in/2 MIDI outs individually selectable for 16/32 MIDI channels
Versatile digital input and output formats like ADAT, S/MUX, AES/EBU, and S/PDIF, including Dolby Digital and dts support
Simultaneous use of 3 analog input sources (1 mono + 1 stereo), digital input sources, plus full multichannel playback @ 24-bit/96kHz
High-resolution 2x12 element LED level indicator for stereo In/Out signals
High-speed USB 2.0 interface with 24-bit/96kHz supports 8 In and 8 Out channels simultaneously (analog and digital) with low-latency ASIO 2 and WDM drivers
Fully equipped master and monitor sections with 100mm faders, individual level controls for 2 speakers, 2 phones, and direct monitor function plus separate dim, mute, and mono functions
High-quality components and exceptionally rugged construction
