Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel Dynamics Processor

Two Independent or Linkable Channels
Expander/Gate, Compressor & Peak Limiter
Integrated De-Esser & Dynamic Enhancer
Selectable Tube Simulation

The Behringer COMPOSER PRO-XL MDX2600 V2 is a 1 RU dual-channel dynamics processor offering an array of switchable circuits and modes optimized for versatile mixing enhancement of instruments and vocals in studios and live stage applications. Link the channels when dealing with stereo sources such as drum overheads, or configure them


Behringer MDX2600V2 Overview


The Behringer COMPOSER PRO-XL MDX2600 V2 is a 1 RU dual-channel dynamics processor offering an array of switchable circuits and modes optimized for versatile mixing enhancement of instruments and vocals in studios and live stage applications. Link the channels when dealing with stereo sources such as drum overheads, or configure them independently for separate inputs such as lead and backing vocals. Each channel boasts an expander/gate, a compressor, two-stage peak limiting, an integrated de-esser, a dynamic enhancer, and a tube simulator.

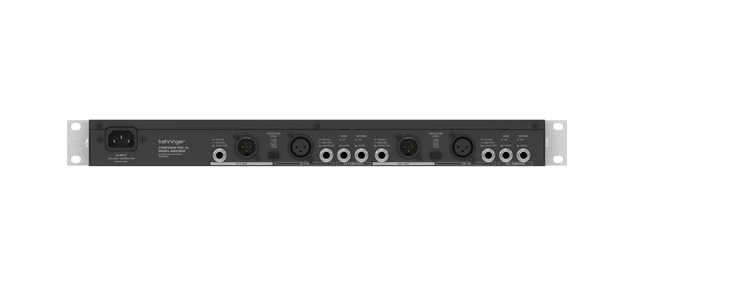

Adjust attack and release times manually, or set them to auto mode for easier setup. Variable controls are also provided for threshold, ratio, output gain, de-esser level, and limiter level. The rear panel presents balanced XLR and 1/4" I/O, a dedicated switch for +4 dBu or -10 dBV operating levels, and 1/4" sidechain sends and returns, which allow processing of the internal sidechain through outboard gear, or routing an external sidechain into the MDX2600 V2. Additional sidechain functions include a listen mode and a switchable high-pass filter for fine-tuning your trigger signal.
Visually monitor input/output levels and gain reduction via 12-segment LED meters, de-esser level suppression via four-segment LEDs, and signal-to-threshold indication, and limiter activity.


Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics


Integrated de-esser with switchable male/female voice mode removes excessive sibilance from vocal tracks


IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks


Switchable dynamic enhancer boosts treble only during compression for lively audio even during heavy gain reduction


IRC (Interactive Ratio Control) expander/gate circuitry for transparent noise suppression


Switchable tube simulation for the extra warmth of classic tube circuitry


Automatic or manual adjustment of attack and release times


Switchable sidechain high-pass filter prevents pumping due to extreme low-frequency compression


Stereo couple function with independent output level settings


Switchable sidechain input with monitor function


Separate 12-segment LED meters for input/output levels and gain reduction


Dedicated "traffic light" threshold and de-esser level displays


Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors


Relay-controlled hard bypass switch with auto-bypass function in case of power failure


Internal switch-mode power supply for noise-free audio and low power consumption


Occupies just 1 RU of rack space
