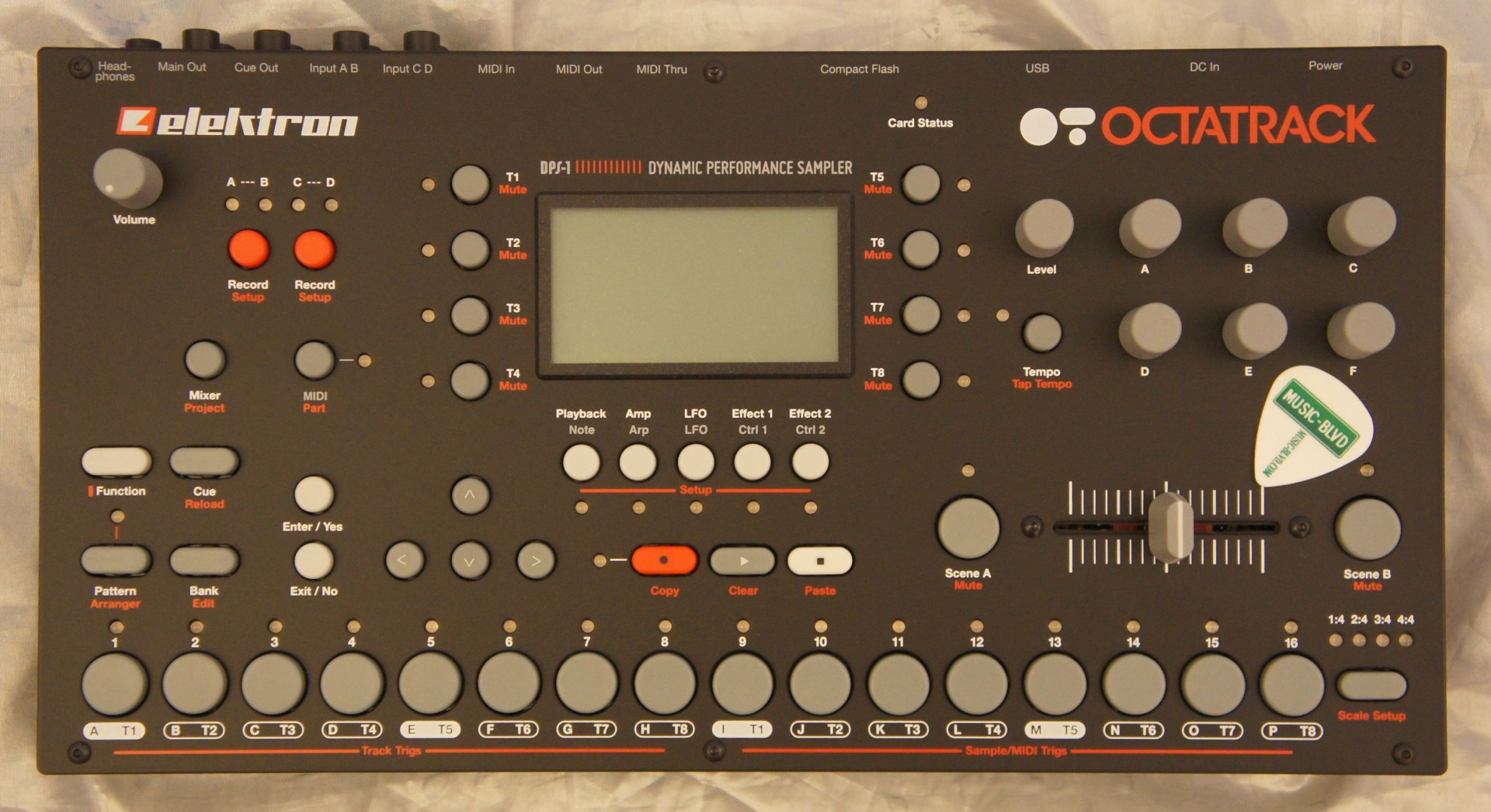

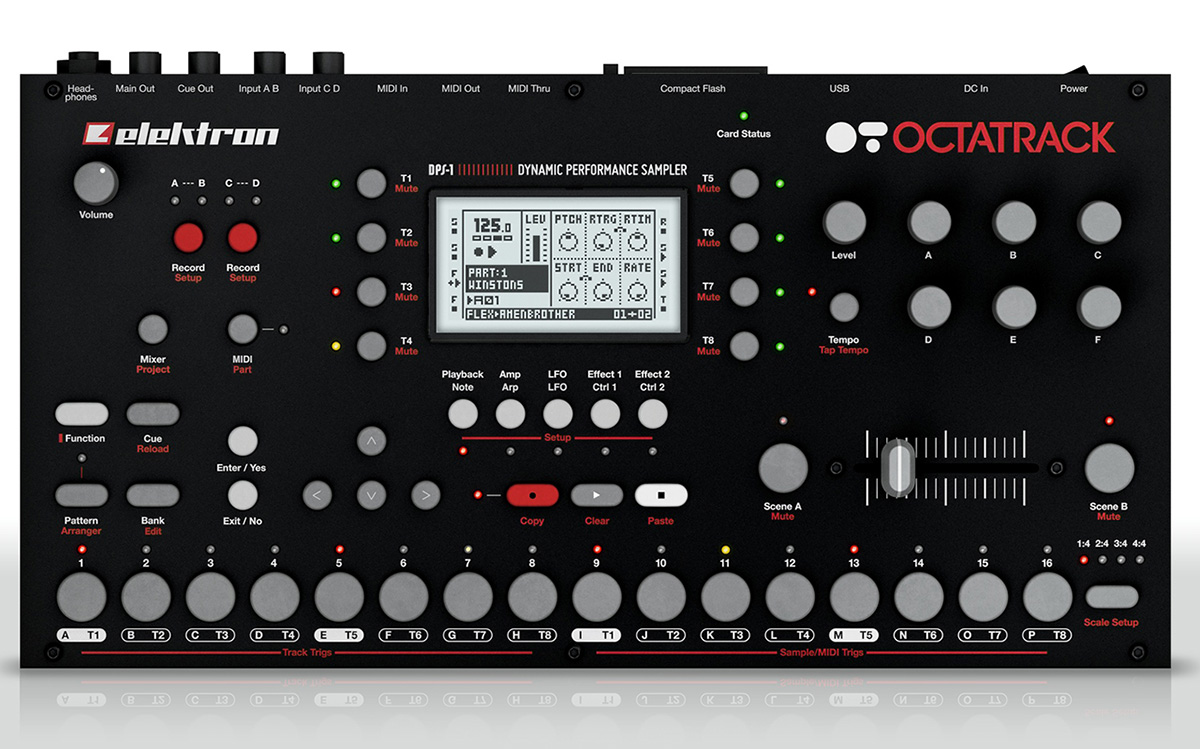

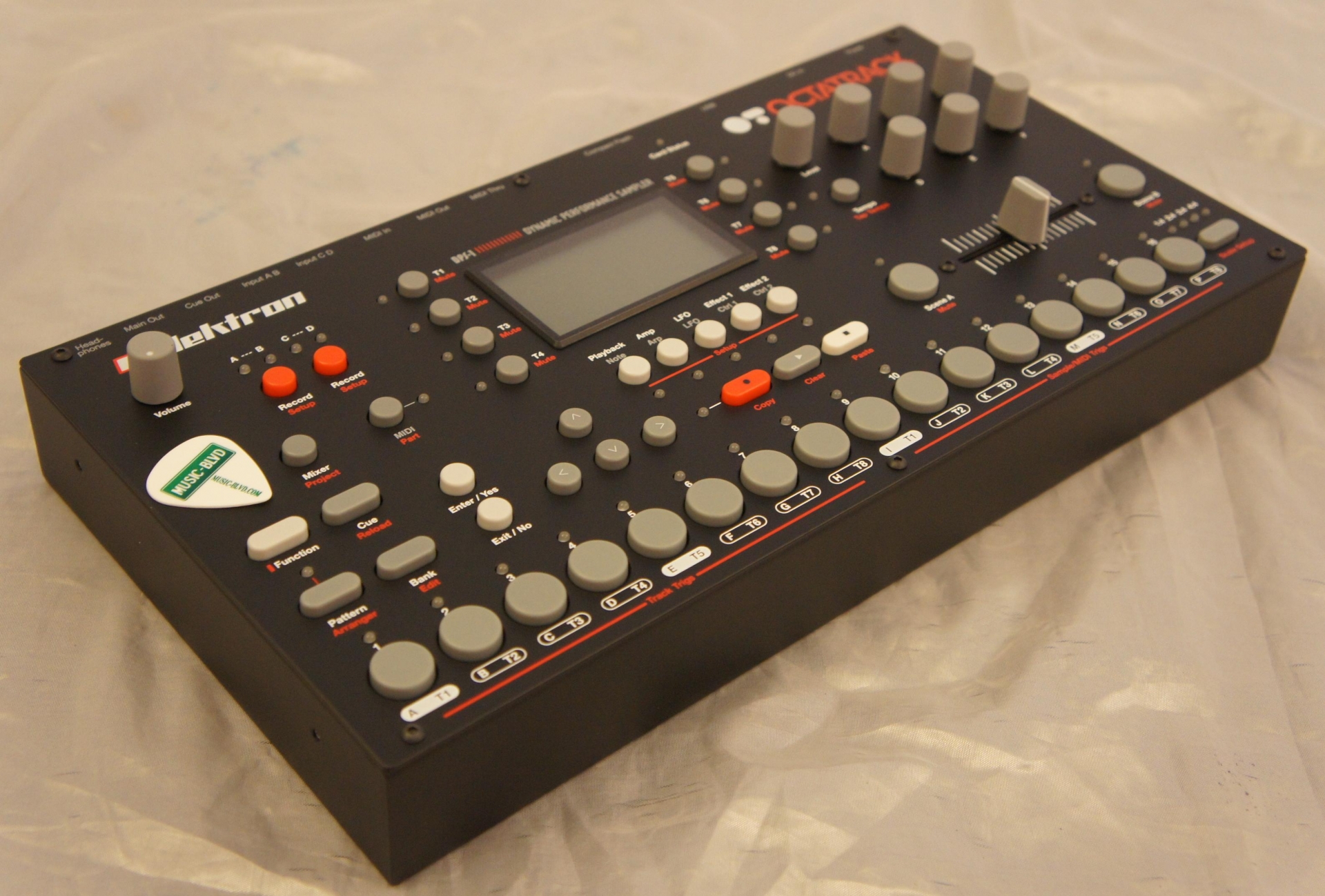

Elektron Octatrack DPS1 Sampler

8-Track sampler with real-time pitch scaling.
The Octatrack is an 8-track performance sampler. Recording of sounds is a breeze thanks to the intuitive user interface, but the fun really starts once the samples are inside the machine. All audio content can be heavily processed and radically transformed. Loops do not have to be restricted by tempo or tone and can always stay in sync no matter if they are pitch shifted or if the tempo of the sequencer is changed. The inflexible nature of samples is finally a thing of the past. For the Producer With the Octatrack you will be able to treat samples in radical ways. You will appreciate functions like changing the melody of certain sections of a vocal sample without the sample going out of sync. The extensive audio mangling capabilities paired with the user friendly interface make the Octatrack an outstanding studio tool. For the DJ Thanks to the immediate real time sampling function of the Octatrack you can sample your turntable and instantly play back the recorded loops. Add effects to the captured audio and use the sequencer and the assignable optical crossfader to really add a twist to your set. The Octatrack can be regarded as an extremely flexible second turntable.
For the Performer
Each of the eight stereo tracks can stream gigabyte-large samples which is great if you need backing tracks during a live gig. All samples can still be subject to time stretch and can of course also be processed by the effects or rearranged by the sequencer. The Octatrack is the most capable performance instruments available.

FEATURES

Instant sampling and remixing
Radical audio manipulation possibilities
Real-time pitch scaling and time stretch
Next generation Elektron step sequencer
Dual assignable FX per track



Music is more fun once you get your hands on it. Order Elektron hardware instruments today.


SPECIFICATIONS
Octatrack DPS1 Sampler
The Sequencer

8 internal tracks
16 banks per project
256 patterns per project
8 arrangements per project
4 parts per bank
16 scenes per part
Supports swing and slide
Micro timing
Parameter locks
Sample locks
Full real-time control
8 track external MIDI sequencer

Track Effects

12/24dB Multi Mode Filter
2-band Parametric EQ
DJ-style Kill EQ
2-10 Stage Phaser
Flanger
2-5 tap Chorus
Echo Freeze Delay
Gatebox Plate Reverb
Compressor
Lo-Fi (SRR, BRR, Dist and A.M.)

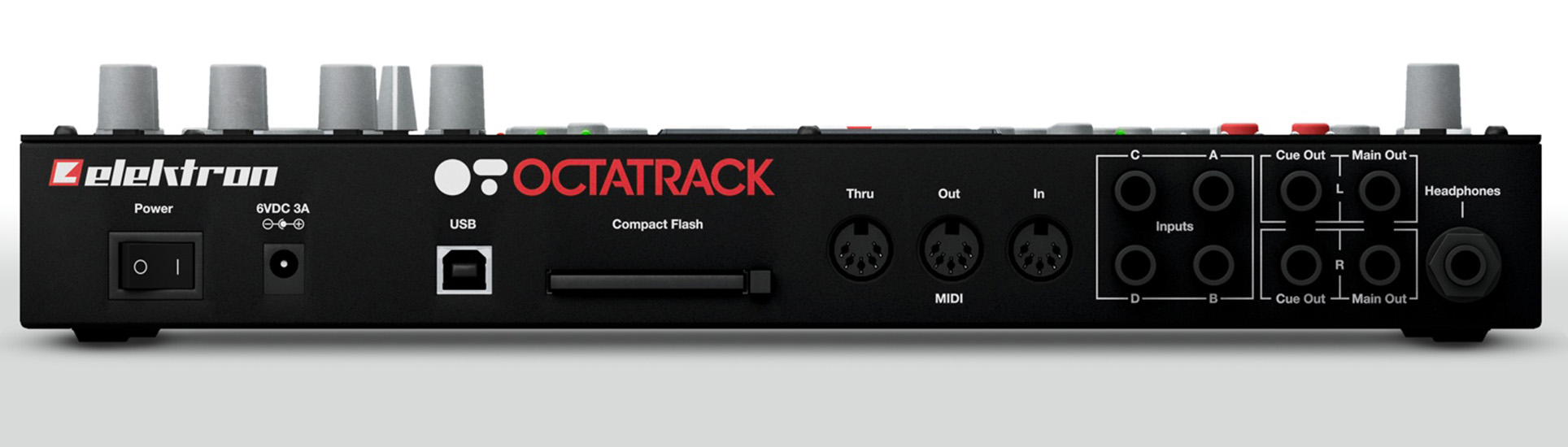

Hardware

128x64 pixel backlit LCD
MIDI In/Out/Thru
4 × 1/4″ impedance balanced audio out jacks
4 × 1/4″ audio in jacks
1 × 1/4″ stereo headphone jack
Advanced triple DSP system
44.1kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
USB 2.0 port
Compact Flash card reader
Infinium optical crossfader
80 MB Flex RAM per project
Static sample streaming from CF card
Sample engine reads 24 bit samples

Balanced Audio Outputs

Headphones out level: +15dBu
Main/cue outputs level: +10dBu
Output impedance: 550 Ω unbalanced
S/N ratio: 102dBFS (20-20.000Hz)

Unbalanced Audio Inputs

Input level: +8dBu maximum
Audio input impedance: 9 k Ω
S/N Ratio: 99dBFS (20-20.000Hz)

Electrical Specifications

Unit power consumption: 8W typical, 18W maximum.
Recommended power supply: 6V DC, 3A

Physical Specifications

Sturdy steel chassis
Dimensions: W340×D181×H63mm (13.4×7×2.4″) (including, audio outputs, knobs and rubber feet)
Weight: approximately 2.4 kg (5.2 lbs)

Miscellaneous

16 GB high speed compact flash card included
2 GB of Loopmasters samples on the CF card
USB cable included
Printed User's manual included
