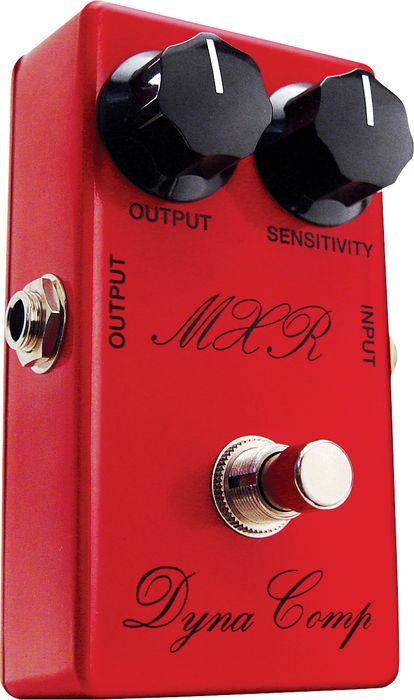

MXR Custom Shop CSP028 Vintage Dyna Comp Compressor Guitar Effects Pedal

An industry standard for tight instrument compression since 1976.

In the quest for ultimate tone, a compressor is an indispensable ally. And the MXR Dyna Comp that was produced in 1976 has long been regarded as one of the ultimate stomp box compressors ever made. There's something inherently musical in the way this compressor pedal "tightens up" a guitar signal, raising the volume of quiet notes and leveling off peaks to create rich, full bodied sustain. From country twangers to metal monsters, guitarists have long relied on the MXR Dyna Comp pedal to make their riffs stand tall in any live or studio mix. Now the MXR Custom Shop brings back that highly sought-after sound with the '76 Vintage Dyna Comp. Meticulously researched and superbly crafted, the compressor pedal features the exact same circuitry used in the original 1976 Dyna Comp, identical in its component layout, silkscreen and handmade wire harness. The key component is the old school CA3080 "metal can" integrated circuit (IC), which yields quieter operation, greater transparency and increased dynamic range. These ICs have been out of production since the '80s, but MXR has tracked down a stash of them—enough to produce a limited run of these little red boxes of compression bliss. The MXR Custom Shop '76 Vintage Dyna Comp effect pedal can be powered by one 9-volt battery accessed through the bottom of the pedal.


Features

Switchcraft jacks, Carling switches and CTS potentiometers
Old school CA3080 "metal can" IC for optimum performance
Output and Sensitivity controls
Identical red paint and legendary MXR "Script" logo of the original
Housing is made of lightweight aluminum, as in 1976
Found in top studios around the world



With supplies limited, the MXR '76 Vintage Dyna Comp is destined to quickly become as ultra collectible as its noble ancestor. So get yours now.
Custom Shop CSP028 Vintage Dyna Comp Compressor Guitar Effects Pedal Specifications:



Maximum Input Level: -5 dBV
Maximum Output Level: -12 dBV
Input Impedance:1 megOhm
Output Impedance: 10kOhm
Equivalent Input Noise: -95 dBV
T.H.D.: 0.2% Typ. at -20 dBV, 1kHz
Maximum Compression: 36 dB
Attack Time: 5 ms
Release Time: 1 s
Current Draw: 1.6 mA at 9VDC
Weight: 1-1/4lb.
Dimensions: 5-1/2"D x 4-1/2"W x 2-1/2"H
