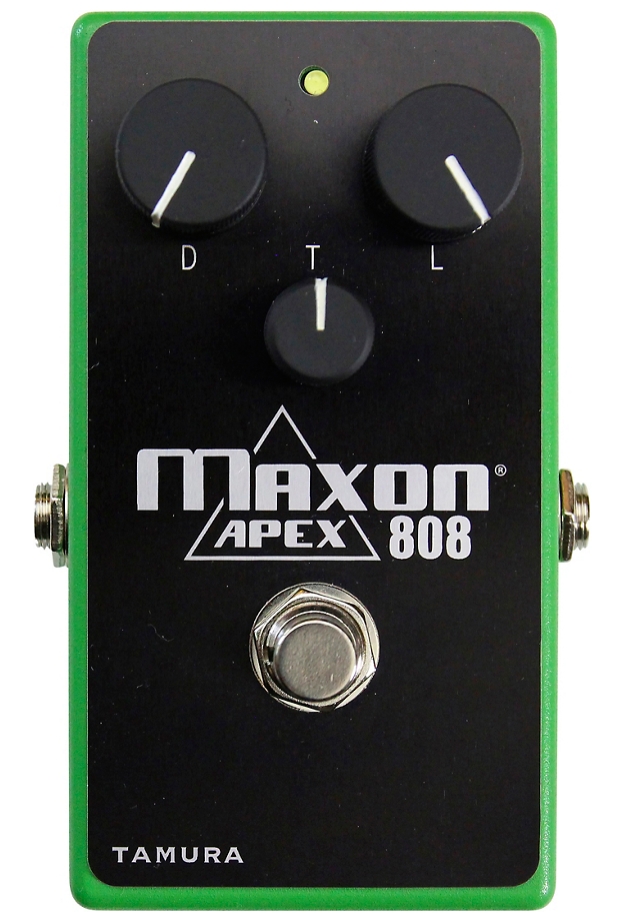

Maxon Apex808 Guitar Overdrive Pedal

Vintage scream with more versatility and clarity.
Over a period of three years, the Apex808 was developed to allow users to capture the sounds and feel of the best vintage screamers without having to play thru or pay thousands to do so.






FEATURES

The Apex808’s hand-selected IC offers the added benefit of changing the overtone components of the signal based on input level.
At low levels, the Apex generates primarily even-order harmonics. When the input level is increased, the Apex generates a blend of even- and odd-order harmonics, creating an overtone series that imitates the preamp and power sections of a tube amp with remarkable accuracy.



SPECIFICATIONS


Input Impedance: 500K Ohms
Input Jack: 1/4 inch standard phone jack
Output Impedance: 10K Ohms
Output Jack: 1/4 inch standard phone jack
Output: 1
Controls: Drive, Tone, Balance
Switch: Normal/Effect
Noise (IHF-A): -110 dBu
Max Amplitude: 35 dBu
Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
Current Consumption: 5 mA (9V) / 6 mA (10 V)
AC Adaptor: PA-9 Power-All (option)
Input: AC120V
Output: DC9V/200 mA Center - / Sleeve +)
Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
Weight: 260 g
Accessories:
9V Manganese dry cell battery (S-006P) x 1
Non-skid pad: x 2
Warranty Card: x 1
User's Manual: x 1
Maxon Sticker: x 1
Apex Manual: x 1

www.music-blvd.com $300
