Kurzweil PC4-7 76-Key Performance Controller

Over 1000 hand-selected factory presets
The Kurzweil PC4 – Performance Controller. Now available in a 76-note design.More polyphony from our acclaimed V.A.S.T. engine than any product in Kurzweil history!2 Gigabytes of Factory Sounds!Over 1000 hand-selected factory presets organized into 13 categories of Programs and featuring our optimized German 9 ft. and vintage Japanese 7 ft. concert grand pianos (with “KSR” – Kurzweil String Resonance). Also included are a wide selection of tailored sounds from the acclaimed Forte® (EP, Clav, Celeste, Crotales, Harpsichord), as well as PC3 Series and KORE 64™ expansions – all handcrafted to deliver unprecedented expressiveness with an obsessive attention to detail.Patented FlashPlay® TechnologyFlash-Play® provides the PC4 with a staggering amount of horse-power; 2 GB sample content with zero-loading time, and ultrafast performance.Load up to 2 GB of your own custom samples into non-volatile flash memory. Supported sample formats: .WAV, .AIF (up to 16 bit / 96kHz) and Kurzweil formats (.P3K, .KRZ, .K25, .K26).V.A.S.T. EditingDeep native editing? Look no further. The PC4 grants full access to Kurzweil’s legendary Variable Architecture Synthesis Technology directly from the front panel. With 32-layers per program, each offering its own signal path and a host of modular DSP tools, the PC4 offers a wealth of sound creation and modification that is truly immense.6-Operator FM Engine6 Operator FM Engine with the ability to load original FM SysEx files.Add sonic animation to your sounds via 16 simultaneous MIDI CC Step Sequencers for modulation sequencing.KB3 ToneReal™ OrgansModeled after classic organs. A full compliment of tonewheel controls are immediately accessible including 9 realistic drawbars, rotary speed, chorus/vibrato, brake, percussion and more.Powerful FX EngineAward-winning Reverbs, Delays, Choruses, Flangers, Phasers, Distortions, Rotary Amplifiers, Compressors and more – all fully editable from the user-interface. The PC4 also offers a global Master FX section featuring 3-band EQ and Compression.

FEATURES

256 Voices of V.A.S.T. Polyphony
2 Gigabytes of Factory Sounds
Patented FlashPlay® Technology
2 Gigabytes User Sample Memory
V.A.S.T. Editing
6-Operator FM Engine
CC Sequencers
KB3 ToneReal™ Organs
Powerful FX Engine
K.S.R. – Kurzweil String Resonance


SPECIFICATIONS


Keyboard:
76-key, semi-weighted action with velocity and pressure (aftertouch) sensitive adjustable keys (SWA76)

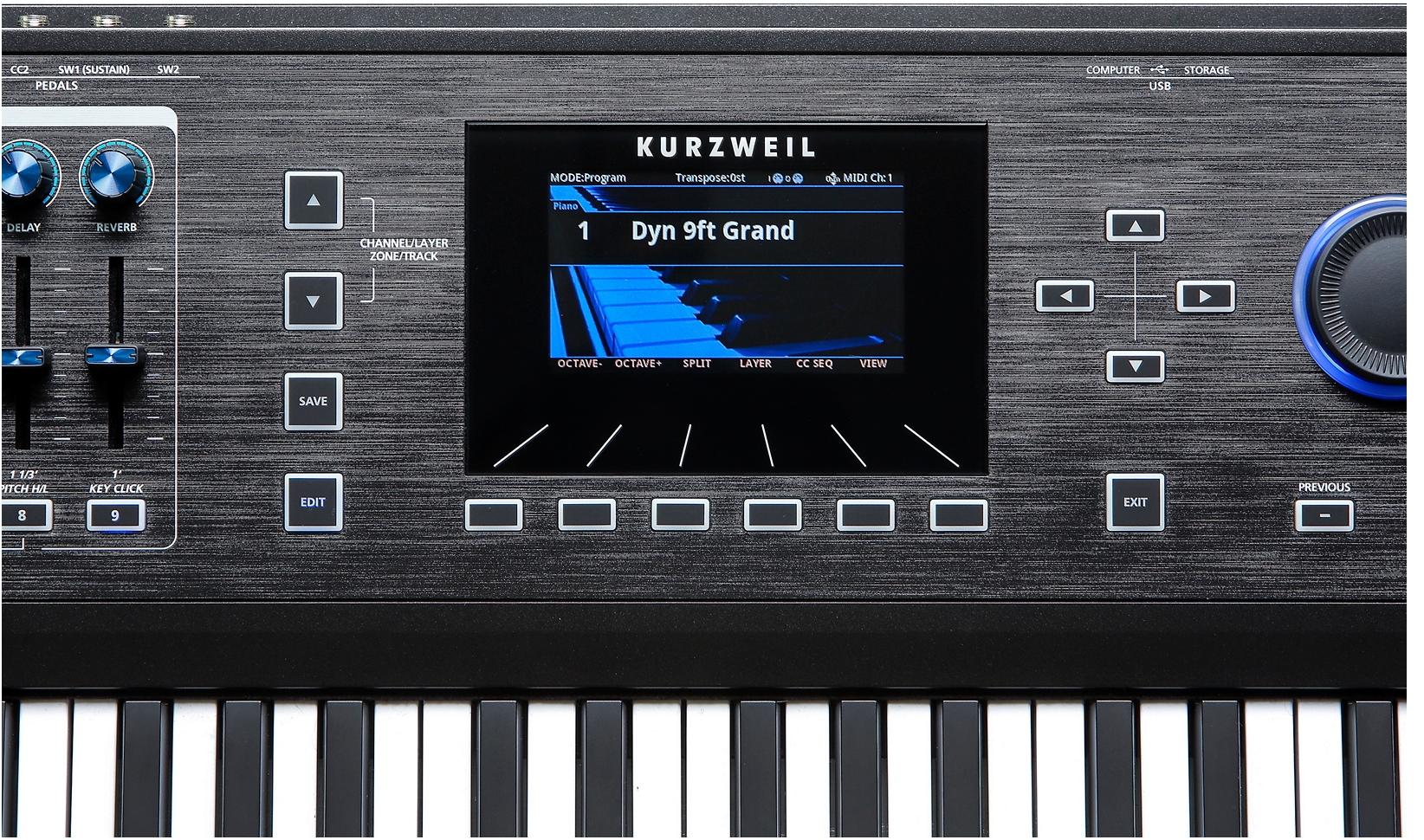

Display: 480 x 272 pixel high resolution color LCD with adjustable brightness
Polyphony: 256 Voice Polyphony, dynamically allocated
Multitimbral: 16 parts (one per MIDI channel)
Architecture: Dynamic VAST: Powerful synthesis engine, with user programmable DSP algs and routing. More DSP power than even our K Series instruments.
6-Operator FM Engine
VA1 Inside: anti-aliasing, power-shaped oscillators and DSP processing from Kurzweil’s VA1 concept synth, capable of delivering authentic analog emulations as well as incredibly complex new sounds.
Cascade Mode: lets the user route one layer through the DSP of any other layer within a program – up to 32 consecutive layers deep!
Sample Flash Memory: 2 GB of re-loadable, non-volatile, user flash memory
Factory Programs: 1000+
User Programs: 4096
Factory Multis: 50+ – featuring up to 16 independent zones
User Multis: 4096
General MIDI: No
Kurzweil String Resonance: Yes
Master EQ/Compressor: Yes
Effects: Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 total FX units

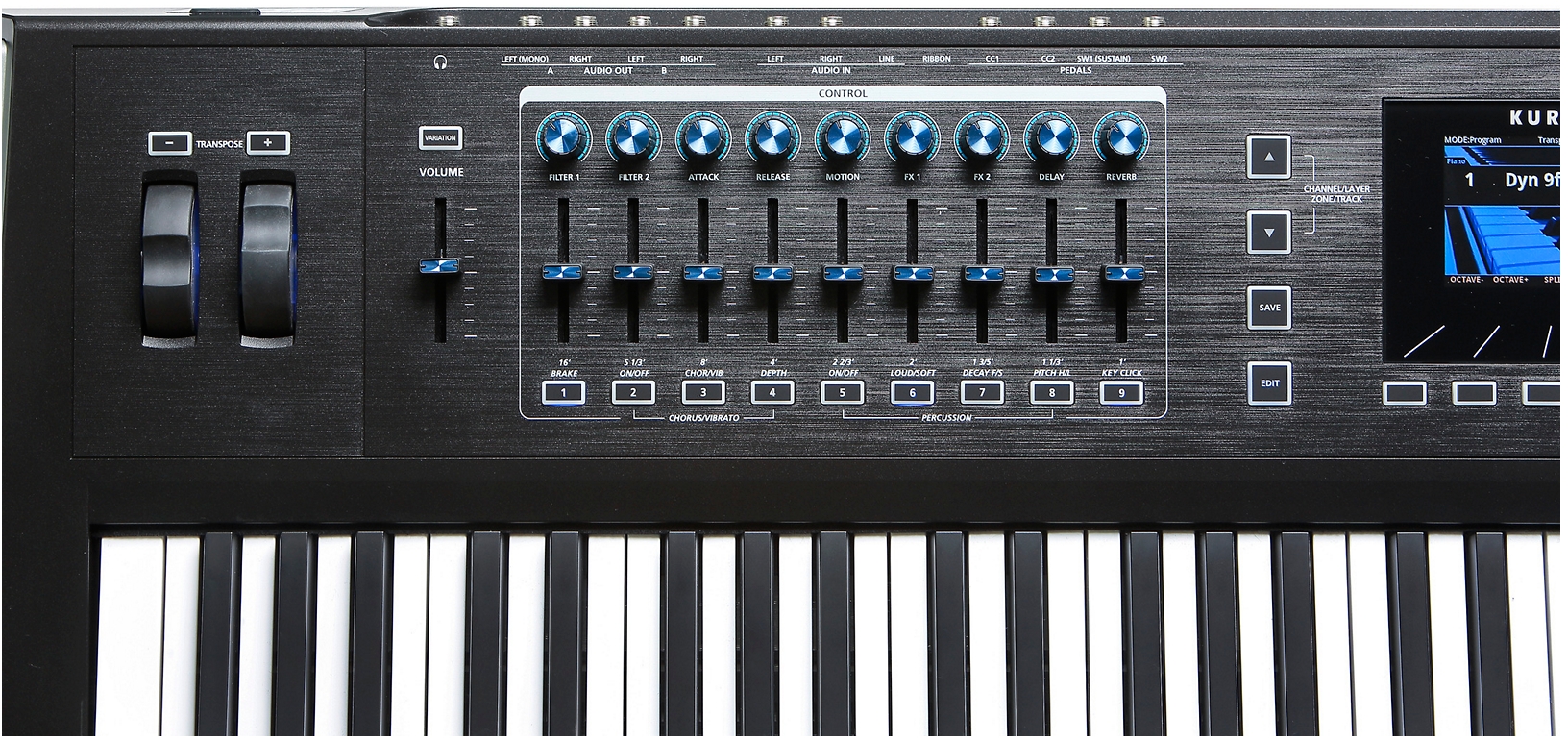

Controllers: 1 pitch wheel
1 modulation wheel
9 front panel sliders
9 Knobs
9 switches (assignable/zone mutes/KB3 control)
1 variation switch
Tempo Controls w/ tap tempo
2 transpose switches
Arp Controls
Transport Controls
*2 switch pedal inputs each supporting single switch pedal or single half damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately)
2 continuous control pedal inputs





monopressure (aftertouch)
Ribbon input (ribbon controller sold separately)
Sequencer: 16 Tracks; 960 PPQ resolution. Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more.
MIDI CC Step Sequencers: 16 simultaneous
RIFFs: 16-per Multi
Arpeggiators: 1-per Program, 16-per Multi

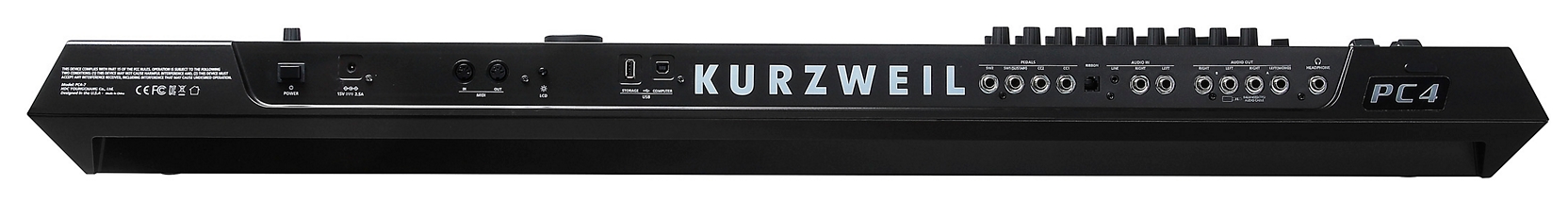

Analog Outputs: Four (2 pairs) 1/4″ balanced TRS analog (32-bit DACs)
Automatic mono switching on main outs
+21dBu maximum output
50Ω balanced source impedance
Audio Inputs: Two 1/4″ inputs
One stereo 1/8″ input (each with FX) for connecting your favorite MP3 player or other audio source for accompaniment playback
Headphones: 1 back panel 1/4″ headphone output
130mW into 32 ohm headphones
MIDI: In, Out
USB: Two USB ports (one A port / one B port)
Complete MIDI functionality over USB
User program/multi file backup via USB drive
Operating System updates via USB drive
Software Editors: External editors for Mac OS X, Windows PC and iOS* devices
(*coming soon)
FREE OS Updates: OS updates via USB drive
Included Accessories: Power cable, Switch pedal, USB cable
Height: 4.24″ (10.78 cm)
Depth: 14.07″ (35.75 cm)
Length: 46.54″ (118.2 cm)
Weight: 19.4 lb (8.8 kg)
Power: External 15VDC 2.5A Power Supply
