Studio Electronics Boomstar Modular Seito Rising

A breathtaking modular analog synthesizer system.

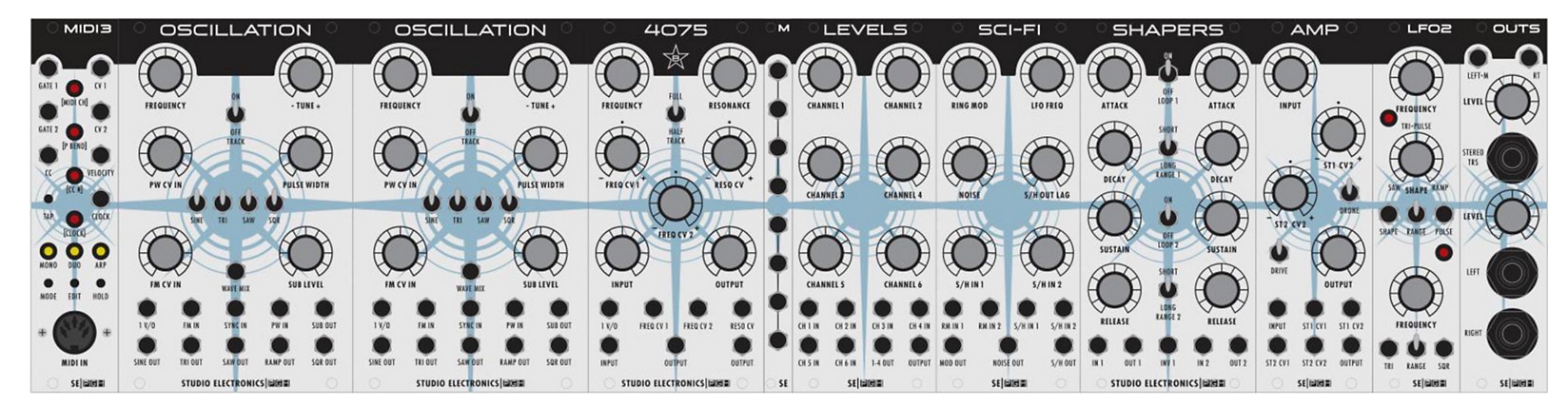

Modstar Seito Rising is at once a spine-soothing and bone jarring selection of Boomstar Modular products that work together seamlessly to manifest in a single incredible instrument. The Modstar Seito Rising comprises MIDI 3 6hp, Router 2hp, Oscillation (x2) 32hp, 4075 12hp, M 2hp, Levels 10hp, Sci-Fi 10hp, Shapers 12hp, Amp 8hp, LFO 2 6hp, and Outs 6hp. All is housed and powered in a sleek and sturdy, carbon-fibre black MONOROCKET M6E case. Details:SCI FI: Ring Mod, White and Pink Noise, Sample and Hold“Classic Synth Toolbox,” with LFO and slewing control of S&HSHAPERS: Dual four stage envelope generator with independently adjustable ATTACK, DECAY, SUSTAIN, and RELEASE stagesAMP: 2 stage Class A discrete design, using 3 pairs of hand matched transistors; Drive—‘70s era “Drive” overdrive/distortion and handy “Drone” control—sends itself its own gate impulseLFO2: Potent all analog dual LFO module—two different low frequency oscillator circuits provide a variety of modulation optionsOUTS: Dual independent output module featuring a stereo 1/4" headphone amplifier output and dual mono 1/4" line level outputs; calibrated and optimized for Boomstar ModularMIDI 3: Third generation extremely full-featured MIDI to CV converter; calibrated and optimized for Boomstar ModularMULTIPLE: Passive utility module with two independentsections of four linked jacks—splits signals into three copiesOSCILLATION: (x2) Class-A, discrete, DC coupled, output buffered, exponential current source, vintage-designed analog oscillator4075: Arp-flavored Discrete, voltage controlled, 24/db/oct cascaded transconductance low-pass filter—six pairs of hand-matched transistors—Really a 4-pole ARP 4072 (better: more parts and trims) • ROUTER (R): Bidirectional audio/CV switcherLEVELS: Versatile, low-noise six channel summing mixer/attenuator for audio and CV—pots are wired with logarithmic volume curves




FEATURES
Dimensions:

2 rows / 106hp each
Internal depth 4.5 inches (except area over PSU which is 2 7/8)
External Dimensions with lid attached (H x W x D): 11.5 x 22.5 x 8
Unit stands vertical or lays on its back
Stackable if you detach the handle (4 pan head screws)

Power:

3.5a on the +/-12v rails
500ma of +5v per row installed
15 Doepfer compatible power connections per row (shrouded and keyed)
5 Analogue Solutions power connections per row
Internally mounted 120v and 240v Power Supply Unit - includes IEC power cable

Hardware:

Sliding Nuts mounting system - includes mounting screws

www.music-blvd.com $2755
