Studio Electronics Boomstar Modular Quadnic

Highly capable digital modular oscillator.

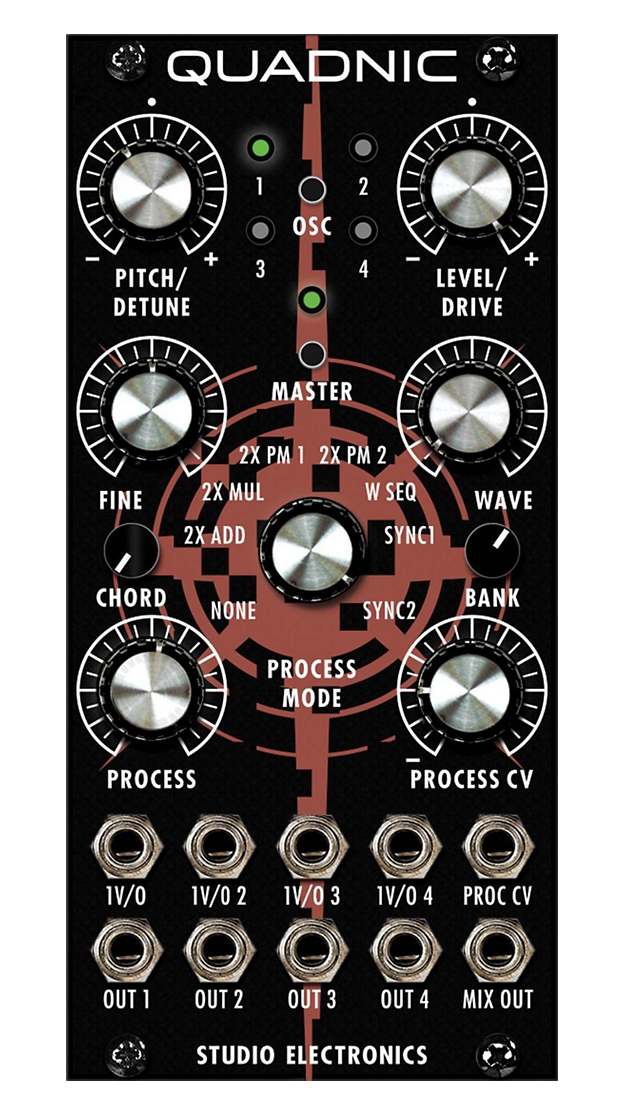

Quadnic is a 12hp module with four digital oscillators, each with a selection of 64 waveforms, 7 different processing modes (including phase distortion and wave sequencing), and a dedicated volt-per-octave input. In unison mode, all 4 OSCs can be played via the 1st 1V/O CV input and widely detuned, or switched to a preset chord formation, a major move beyond the monophonic module behavior.




FEATURES
Inputs and Outputs

1V/OCT 1 - Oscillator 1, 1 Volt per octave input. 0-10V input range. Controls the pitch of any other oscillator that is set to Slave mode.
1V/OCT 2 - Oscillator 2, 1 Volt per octave input. 0-10V input range. Only affects oscillator 2 when in Master mode.
1V/OCT 3 - Oscillator 3, 1 Volt per octave input. 0-10V input range. Only affects oscillator 3 when in Master mode.
1V/OCT 4 - Oscillator 4, 1 Volt per octave input. 0-10V input range. Only affects oscillator 4 when in Master mode.
Proc CV - Process CV input. +/-5V input range. One CV input for all oscillators, but can be attenuated for individual oscillators using the Process CV control.
Out 1 - Oscillator 1 output.
Out 2 - Oscillator 2 output.
Out 3 - Oscillator 3 output.
Out 4 - Oscillator 4 output.
