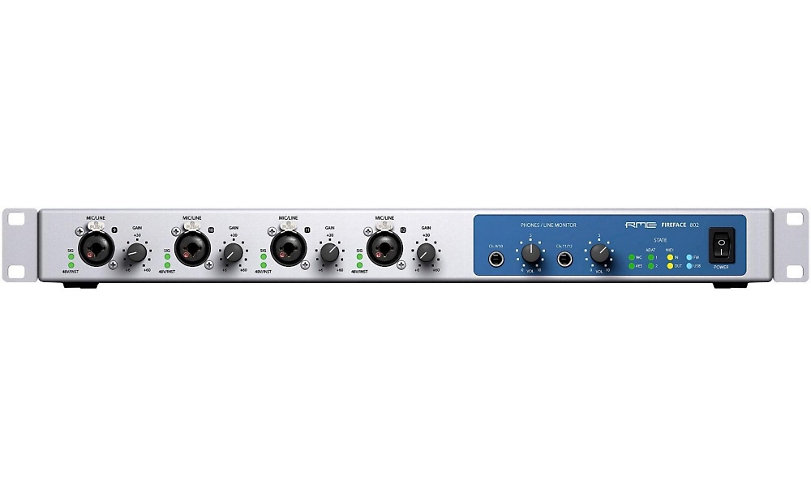

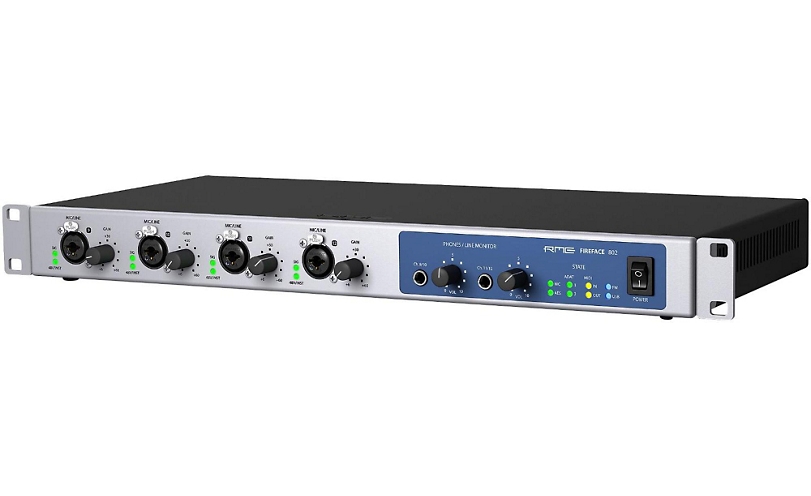

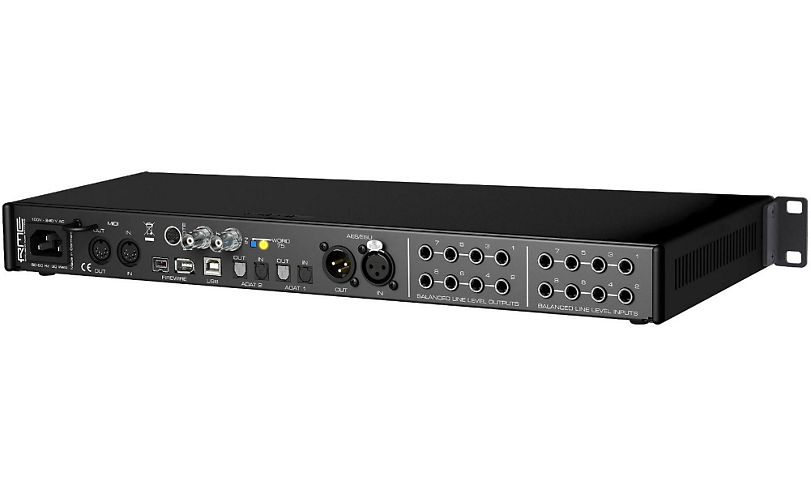

RME Fireface 802 USB/FireWire Audio Interface

OVERVIEW


Redesign of a studio standard.

The Fireface 802 renews RME's reputation built on the legendary Fireface 800. 60 channels of audio, high-end microphone preamps, reference class converters, a complete effects section and operation at up to 192 kHz are the base for many more features:Ultra-low latency operation with USB or FireWire, combined with the legendary RME driver stability and maintenance. Active jitter suppression, individually switchable reference levels for all inputs and outputs, full stand-alone functionality, RME's unique DIGICheck metering and analysis toolbox, and identical operation on Windows PC and Mac.TotalMix FX, RME's digital high-end mixer and signal router, driven by two powerful DSPs, with integrated EQ, Dynamics and Reverb/Echo effects at up to 192 kHz, plus a built-in monitoring controller.The full-blown feature set also includes optional Class Compliant mode and operation with TotalMix FX for iPad, RME's app to fully control the 802 from the iPad, without any computer. The easy to use app includes metering for all 90 channels plus effects bus, different setup screens, and complete control of all features.The Fireface 802 is a highly integrated pro audio solution, a full-blown studio, all within a 19 in. enclosure. An interface designed for users who don't want to make compromises in sound, stability and ultra-low latency operation, and who long for an unrivaled professional feature set. Once again a milestone interface from RME, including the best of the best and even a bit more.




FEATURES

New look with improved usability
Dedicated Control Room section for the main output (e. g. studio monitors) and other monitoring outputs (e. g. phones). All existing stereo output channels can be freely assigned as source for the control room section channels.
Four definable groups for Solo, Mute and Faders
Switchable Mono and Stereo channel view
Channel Options: Stereo Width, MS Processing, Phase L/R
Trim mode: Adjusts the volume for all routed signals of a channel simultaneously, equalling a hardware's trim functionality as well as a Post-FX Send function.
Unlimited Undo and Redo
Much, much more



Order today and experience all of the refinemnts of a state-of-the-art interface.



SPECIFICATIONS


Windows 8 / 7 / Vista / XP SP2 (32- and 64-bit)
Apple Mac OS X 10.6 or up (Core Audio)
Windows and Mac OS X drivers are completely identical in terms of features and functionality, as far as this is possible on the respective platform
Some features in DIGICheck are not available in the Mac version
AD, Line In 1-8, rear
Resolution AD: 24-bit
Signal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 5 Hz - 45.8 kHz
Frequency response @ 192 kHz, -1 dB: 5 Hz - 92 kHz
THD: < -110 dB, < 0.00032 %
THD+N: < -104 dB, < 0.00063 %
Channel separation: > 110 dB
Input: 6.3 mm TRS jack, electronically balanced
Input sensitivity: 8 kOhm unbalanced, 12 kOhm balanced
Input sensitivity switchable to Lo Gain, +4 dBu, -10 dBV
Input level for 0 dBFS @ Lo Gain: +19 dBu
Input level for 0 dBFS @ +4 dBu: +13 dBu
Microphone In 9-12, front
As AD, but:
Input: XLR, electronically balanced
Input impedance: 3.4 kOhm
Signal to Noise ratio (SNR): 112 dB RMS unweighted, 116 dBA
Gain range: 54 dB
Maximum input level, Gain +6 dB: +10 dBu
Instrument In 9-12, front
As AD, but:
Input: 6.3 mm TS jack, unbalanced
Input impedance: 800 kOhm
Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
Maximum input level, Gain +6 dB: +21 dBu
DA, Line Out 1-8, rear
Dynamic range (DR): 115 dB RMS unweighted, 118 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 5 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 5 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 5 Hz - 89 kHz
THD: -104 dB, < 0.00032 %
THD+N: -100 dB, < 0.00063 %
Channel separation: > 110 dB
Output: 6.3 mm TRS jack, servo-balanced
Output impedance: 75 Ohm
Output level switchable Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain: +19 dBu
Output level at 0 dBFS @ +4 dBu: +13 dBu
Output level at 0 dBFS @ -10 dBV: +2 dBV















Dimensions (WxDxH)
19.0 x 1.7 x 9.5" / 48.3 x 4.4 x 24.1 cm


Weight
6.6 lb / 3 kg






Package Weight
12 lb


Box Dimensions (LxWxH)
22.2 x 12.5 x 4.5"
