Antelope Audio Zen Studio Portable Audio Interface

Creativity on the Go
The core of your professional portable studio
Never has so much outstanding audio quality and useful functionality been engineered into such a compact package! The Antelope Audio Zen Studio gives you full-featured audio interface, clock, preamp, and monitor controller functions in a svelte, road-ready chassis. Featuring 20 analog inputs, 12 world-class mic preamps, Antelope's peerless conversion and clocking, onboard DSP effects, multiple monitor mixers, custom high-bandwidth low-latency USB, and Mac/PC control software, the sleek, back-packable Zen Studio houses the powerful core of your professional mobile recording studio.
Antelope Audio Zen Studio at a Glance:

Amazingly "analog-sounding" conversion
Comprehensive mic pre, hi-Z instrument, and line input options
Parallel DSP and effects processing
Rock-solid zero-latency USB audio interface
Extremely flexible routing and mixing capabilities
Antelope's acclaimed clocking technology

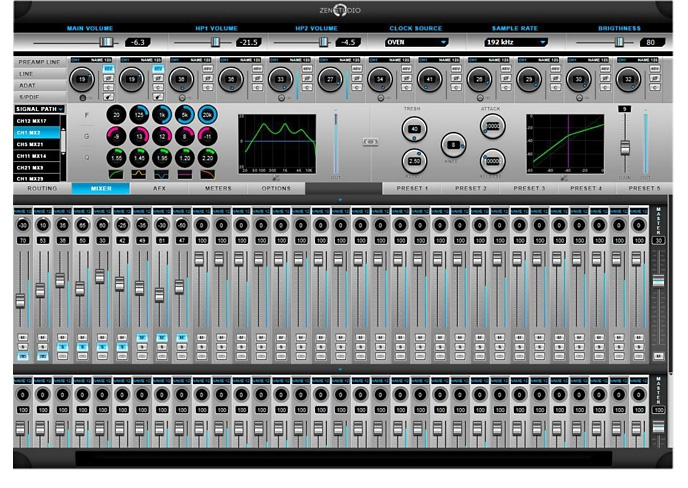

Zen Studio Software Control Panel
Intuitive control, right from your computer

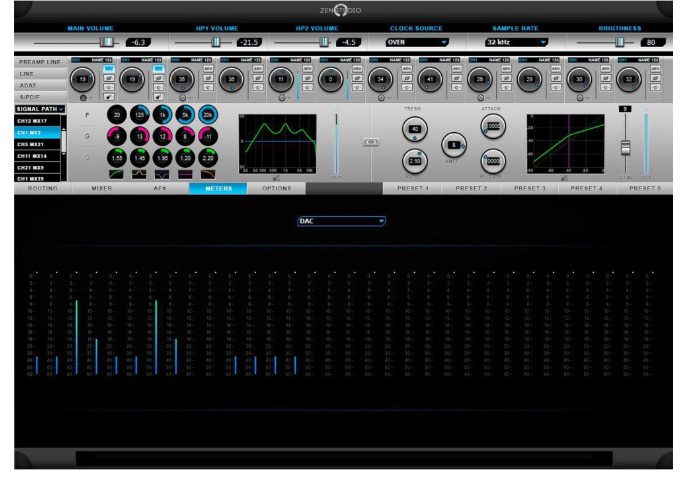

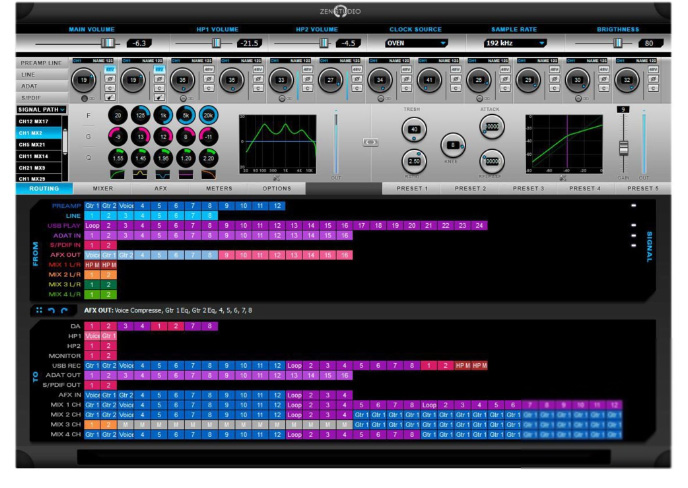

Zen Studio's intuitive user interface includes tabbed views for Routing, Mixer, AFX, Meters, and Options, plus five Preset buttons. You drive Zen Studio from Antelope Audio's intuitive Mac/PC desktop app, which gives you flexible control over signal routing, DSP effects, custom presets, and more. Create up to four independent, zero-latency mixes, assignable to any outputs, including the headphone and monitor outs.

Tabbed views for Routing, Mixer, AFX, Meters, and Options, plus 5 Preset buttons
Flexible control over signal routing, DSP effects, custom presets, and more
Create up to 4 independent, zero-latency mixes


Onboard DSP EQ and Compression
High-quality Antelope FX at your fingertips
In addition to its outstanding audio quality, the Antelope Audio Zen Studio gives you a beefy DSP engine built on a field-programmable gate array IC with mammoth parallel-processing mojo, for eight times more DSP power than similar devices. This lets you enjoy rapid simultaneous processing of multiple effects, juicing your workflow like you won't believe.

Onboard DSP-powered EQ and compression
Beefy DSP engine built on a field-programmable gate array IC
Rapid simultaneous processing of multiple effects


Outstanding audio quality
The Antelope recipe for great-sounding audio
When it comes right down to it, all the flexibility in the world doesn't do you any good if audio quality is lacking; fortunately, Zen Studio's Acoustically Focused Clocking delivers the most analog-sounding audio conversion we've heard, with clean transients, stunning clarity, and detail that let you really hear the attack of instruments and vocals. Antelope's renowned clocking and conversion technology, together with the custom USB technology in the Zen Studio, are the same as in the acclaimed 32-channel Orion interface — a fixture in world-class studios and the playback rigs of top artists.

Acoustically focused clocking
Stunning clarity and detail
Renowned Antelope conversion


Perfect for Tracking, Too
Record a small band or complete drum kit
With its outstanding audio quality, flexibility, and portability, the Zen Studio is a natural for EDM producers who work in multiple studio facilities or challenging environments to use in place of a console, but its generous I/O, 12 great-sounding mic pres, DSP EQ and dynamics, and onboard monitoring facilities also make it a logical choice for tracking a small band or multi-mic drum setup. All the audio I/O is available simultaneously, for a total of 38 input and 32 output channels, plus 24 concurrent I/O channels via Zen Studio's 24-bit/192kHz custom USB.

12 great-sounding mic preamps
Simultaneous I/O up to 38 inputs/32 outputs
24 concurrent I/O channels via USB


Zen Studio
The ideal interface for modern music production
Antelope scored a huge hit with their Orion interface, a Sweetwater best-seller found in countless top studios worldwide. The Zen Studio maintains that uncompromising level of audio quality while offering you true portability and genuinely useful features geared toward the way you make music today. What's not to love? We're mightily impressed with the Antelope Audio Zen Studio. We're confident you will be, too!
Tech Specs



Computer Connection Type
USB 2.0


Form Factor
Desktop


Simultaneous I/O
24 x 24


A/D Resolution
24-bit/192kHz


Built In DSP/FX
Yes


Number of Audio Inputs
20


Audio Inputs Types
12 x XLR Combo, 1 x DB-25, 4 x DI


Number of Audio Outputs
10


Audio Output Types
1 x DB-25, 2 x 1/4" (Monitor)


Number of Digital Inputs
10


Digital Input Types
2 x ADAT (8 inputs), 1 x stereo S/PDIF (RCA)


Number of Digital Outputs
10


Digital Output Types
2 x ADAT (8 outputs), 1 x stereo S/PDIF (RCA)


Number of Preamps
12


Phantom Power
Yes


Clock I/O
1 x Word Clock in, out


Bus Powered
No


Manufacturer Part Number
Zen Studio
