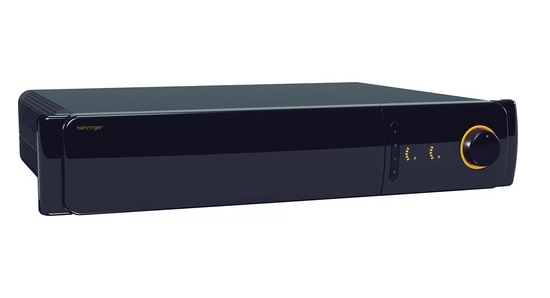

Behringer EUROCOM MA6018 Auto-Mixing Amplifier

Behringer MA6018 Specs





Audio Inputs
8x Combo XLR/TRS mic/line8x 5-Pin Euroblock mic/line (in parallel)4x Stereo summed RCA auxiliary1x 4-Pin Euroblock page input


Input Impedance
Mic: -50 to 0 dBV @ 600 Ω (electronically balanced)Line: -27 to 0 dBV @ 600 Ω (electronically balanced)Auxiliary : -10 dBV @ 10 kΩ (unbalanced)


Preamp Output
70 V Input:1x 5-Pin EuroblockImpedance: 0 dBV @ 600 Ω (balanced)4 Ω Input:1x 5-Pin EuroblockImpedance: 0 dBV @ 600 Ω (balanced)Hi-Z & Lo-Z Preamp Output:2x 5-Pin EuroblockImpedance: 0 dBV @ 600 Ω (balanced)


Phantom Power
24 VDCSwitchable on inputs 1 to 8 and Tel/Page input


Audio Outputs
Amplifier Output: 1x 4-Pin female EuroblockLo-Z Output: 2x terminals @ 4 ΩHi-Z: 2x terminals @ 70/100 V (switchable)Direct Out: 8x 5-Pin EuroblockZ2/MOH Output: 1x 5-Pin Euroblock


Output Impedance
0 dBV @ 600 Ω (balanced)


Dynamic Range
Mic: 65 dBLine: 80 dB


THD & Noise
0.5% @ 1 kHz (rated output)


Frequency Response
50 Hz to 18 kHz (± 2 dB)


Tone Controls
Master:Low: ± 10 dB @ 100 HzHigh: ± 10 dB @ 12 kHzInputs 1 to 8:Low: ± 15 dB @ 100 HzHigh: ± 15 dB @ 12 kHz


Channels
Lo-Z: 1x 4 Ω (minimum)Hi-Z: 1x 70/100 V (switchable)


Power Output
Lo-Z: 180 W RMS @ 4 Ω (minimum, 1% THD @ 1 kHz sine wave)Hi-Z: 180 W RMS (27 Ω minimum @ 70 V, 55 Ω minimum @ 100 V; 1% THD @ 1 kHz sine wave)


Connections
Remote: 1x 5-Pin EuroblockCommon: -5 VDC @ 100 mA (short-circuit protected)Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected)RVC: 10 kΩ linear taper potentiometerAux Input Select: used in conjunction with wall remote to select aux feedPower On/Off: 5 VDC voltage make contact input, no open voltageInputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA


Indicators
Power: Yellow LED ring illuminationOverload: Red LED ring illuminationOutput Level: LED VU meter (yellow and red when clipping)


Power Supply
Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable)Mains Connector: Standard IEC receptacleFuse: T 6.3 AH 250 V/T 3.15 AH 250 VPower Efficiency: 72% maximum


Power Consumption
Idle: 54 W1/8 Power: 110 W1/3 Power: 210 WFull Power: 500 W


Dimensions (H x W x D)
3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm)


Weight
14.1 lb (6.4 kg)





Packaging Info



Package Weight
17.4 lb


Box Dimensions (LxWxH)

22.5 x 16.9 x 8.1"
