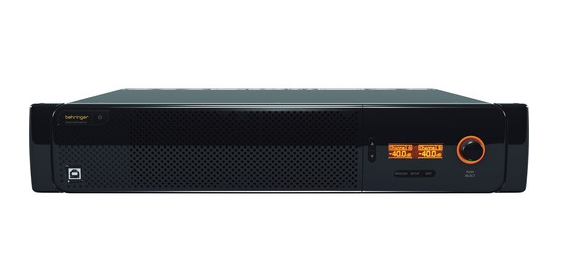

Behringer Eurocom AX6220 Low Impedance Stereo Power Amplifier

Key Features


900W Per Channel @ 4Ω
Front Panel VU Metering
24-bit/96kHz DSP
Controlled by Ethernet Network or USB

The Eurocom AX6220 Low Impedance Power Amplifier from Behringer is a dual channel rack mount power amplifier that offers digital control for a variety of applications including distributed music, paging systems, and other AV uses. The 24 bit, 96 kHz convertors provide high fidelity audio for the Eurocom AX6220's digital signal processor, or DSP, which


Behringer AX6220 Specs





Power Output
480 w per channel @ 8 Ω stereo @ peak, 1% thd, 1 kHz sine wave900 w per channel @ 4 Ω stereo @ peak, 1% thd, 1 kHz sine wave1400 w per channel @ 2 Ω stereo @ peak, 1% thd, 1 kHz sine wave1750 w per channel @ 8 Ω bridged @ peak, 1% thd, 1 kHz sine wave2600 w per channel @ 4 Ω bridged @ peak, 1% thd, 1 kHz sine wave400 w per channel @ 8 Ω stereo @ rms, 1% thd, 1 kHz sine wave650 w per channel @ 4 Ω stereo @ rms, 1% thd, 1 kHz sine wave1000 w per channel @ 2 Ω stereo @ rms, 1% thd, 1 kHz sine wave1300 w per channel @ 8 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave2000 w per channel @ 4 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave


Inputs
2x 3-pin Euroblock2x XLR/TRS combo


Outputs
2x Speakon4x binding post


Gain
34 dB @ 8 Ω


Minimum Load Impedance
2 Ω


Frequency Response
20 Hz - 20 kHz, -1 dB @ 1 W, 1 kHz dBr into 8 Ω


Total Harmonic Distortion (THD)
< 0.25% @ 1 W, 1 kHz dBr into 8 Ω


Signal to Noise Ratio
87 dB @ input 2 dBu93 dB @ +22 dBu


Damping Factor
> 220 @ 8 Ω


Crosstalk
> -70 dB @ rated power, 1 kHz


Indicators
Power indicator LED ring illumination (yellow)Overload/Protection LED ring(red)LCD display VU metersSystem fault, overcurrent/overdrive indicators


Operating Temperature
14° to 104° F (-10° to 40° C)


Cooling Method
Automatic variable speed fan rear to front airflow


PC Control
Type B USB on front or IEEE 802.3 Ethernet network connector on back panel


Display
LCD 128 x 32, amber backlit


Delay
0 - 300 ms


Crossover
3 filter types per channel: (Butterworth, Bessel, Linkwitz-Riley) up to 48 dB/octave


Digital Equalizer
8-band parametric, 2-band dynamic (per channel)


Dynamics
Digital zero attack limiter (per channel)


Presets
20 total presets, 19 user definable


Power Consumption
7 a @ 220-240 v~50/60 Hz12 a @ 120 v~60 Hz14 a @ 100 v~50/60 Hz


Power Efficiency
69%


AC Power Source
100~120 v ac 50/60 Hz220~240 v ac 50/60 Hz


Rack Size
1 unit


Dimensions (H x W x D)
3.7 x 17.0 x 16.0" (95.0 x 432.0 x 406.0 mm)


Weight
21.4 lb (9.7 kg)
