Behringer Eurocom AX6220 Low Impedance Stereo Power Amplifier

Behringer AX6220 Overview






The Eurocom AX6220 Low Impedance Power Amplifier from Behringer is a dual channel rack mount power amplifier that offers digital control for a variety of applications including distributed music, paging systems, and other AV uses. The 24 bit, 96 kHz convertors provide high fidelity audio for the Eurocom AX6220's digital signal processor, or DSP, which includes delay, crossover, and dynamics as well as an eight band parametric and two band dynamic EQ. Onboard DSP also includes Behringer's "Zero Attack" limiters, designed to protect connected speakers.
The AX6220 settings can be controlled and saved remotely using your PC's Ethernet connection and Behringer's free Amp Remote software (available through their website). The unit can also be directly controlled with its front panel LCD screen.








Switch-Mode Power technology provides up to 73% power efficiency to reduce power consumption






Dual-channel power amplifier designed for continuous operation






Two transformerless, cool-running Class-H amplifiers drive low-impedance loads down to 2 Ω






The 24 bit/96 kHz DSP section features delay, crossover, EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings

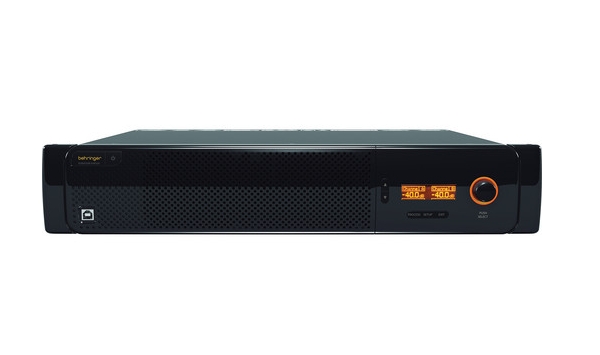

Front panel LCD display enables setup and adjustment without use of a PC






Can be set up, controlled and monitored through standard Ethernet network or panel USB connector

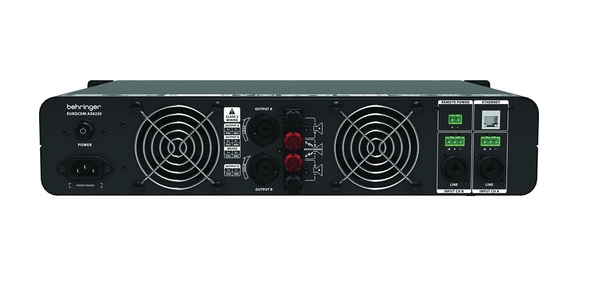

Two line level inputs via 3-pin Euroblock or XLR/TRS combination connectors






Front panel VU metering, mute indication, system fault, over-current or overdrive indicators and illuminated master volume ring with clipping indication






Limiters on all output channels with independent DC and thermal overload protection automatically protects amplifier and speakers



Behringer AX6220 Specs





Power Output
480 w per channel @ 8 Ω stereo @ peak, 1% thd, 1 kHz sine wave900 w per channel @ 4 Ω stereo @ peak, 1% thd, 1 kHz sine wave1400 w per channel @ 2 Ω stereo @ peak, 1% thd, 1 kHz sine wave1750 w per channel @ 8 Ω bridged @ peak, 1% thd, 1 kHz sine wave2600 w per channel @ 4 Ω bridged @ peak, 1% thd, 1 kHz sine wave400 w per channel @ 8 Ω stereo @ rms, 1% thd, 1 kHz sine wave650 w per channel @ 4 Ω stereo @ rms, 1% thd, 1 kHz sine wave1000 w per channel @ 2 Ω stereo @ rms, 1% thd, 1 kHz sine wave1300 w per channel @ 8 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave2000 w per channel @ 4 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave


Inputs
2x 3-pin Euroblock2x XLR/TRS combo


Outputs
2x Speakon4x binding post


Gain
34 dB @ 8 Ω


Minimum Load Impedance
2 Ω


Frequency Response
20 Hz - 20 kHz, -1 dB @ 1 W, 1 kHz dBr into 8 Ω


Total Harmonic Distortion (THD)
< 0.25% @ 1 W, 1 kHz dBr into 8 Ω


Signal to Noise Ratio
87 dB @ input 2 dBu93 dB @ +22 dBu


Damping Factor
> 220 @ 8 Ω


Crosstalk
> -70 dB @ rated power, 1 kHz


Indicators
Power indicator LED ring illumination (yellow)Overload/Protection LED ring(red)LCD display VU metersSystem fault, overcurrent/overdrive indicators


Operating Temperature
14° to 104° F (-10° to 40° C)


Cooling Method
Automatic variable speed fan rear to front airflow


PC Control
Type B USB on front or IEEE 802.3 Ethernet network connector on back panel


Display
LCD 128 x 32, amber backlit


Delay
0 - 300 ms


Crossover
3 filter types per channel: (Butterworth, Bessel, Linkwitz-Riley) up to 48 dB/octave


Digital Equalizer
8-band parametric, 2-band dynamic (per channel)


Dynamics
Digital zero attack limiter (per channel)


Presets
20 total presets, 19 user definable


Power Consumption
7 a @ 220-240 v~50/60 Hz12 a @ 120 v~60 Hz14 a @ 100 v~50/60 Hz


Power Efficiency
69%


AC Power Source
100~120 v ac 50/60 Hz220~240 v ac 50/60 Hz


Rack Size
1 unit


Dimensions (H x W x D)
3.7 x 17.0 x 16.0" (95.0 x 432.0 x 406.0 mm)


Weight
21.4 lb (9.7 kg)
