Behringer EUROCOM AX6240Z 1000W 70/100V Dual Amplifier w/DSP, USB & Ethernet Control

Product Details

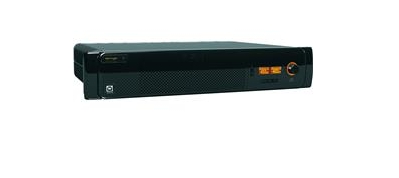

Behringer EUROCOM AX6240Z 1000W 70/100V Dual Amplifier w/DSP, USB & Ethernet Control

With Behringer's EUROCOM AX Series, amplifier programming, monitoring, and control have never been easier. Whether it is direct unit access, across the hall or across the planet the AX Series features several connectivity and control options that give users and technicians immediate access to the full functionality of the unit.The EUROCOM AX Series dual-channel professional power amplifiers represent the apex of power, flexibility, and control in digitally enabled power amplifiers. They are available in high impedance (70/100V) and low impedance (2 ohm) configurations, giving the installer the options needed to tackle even the most sophisticated design requirements with confidence.The AX6240Z is designed to drive high impedance loads in 70V or 100V distributed audio systems. Fan cooled and highly efficient, it represents an excellent choice for contractors designing high performance sound reinforcement and playback systems for the most demanding applications. Cold-rolled steel construction and perforated steel faceplates are employed for ultimate durability.


DSP Enabled TechnologyThe integrated DSP features high-end 24-bit/96 kHz A/D and D/A converters for ultimate signal integrity and wide dynamic range (113 dB). Digital effects include delay, crossover, parametric (8-band) and dynamic (2-band) EQ, and "zero-attack" limiters, as well as 20 preset slots (19 of which are user-definable) so you can save settings according to various situations and requirements.
Remote and Local ConnectivityOn-board DSP can be set-up, controlled, and monitored through a standard TCP/IP Ethernet network (download free software here) or on-site through the front panel USB connector.
Diverse User Control and MonitoringThe front panel LCD screen enables set-up and adjustment without a PC. Two amplifier VU meters and status indication illuminated master volume ring with clipping indication are also present on the front panel display.
Perfect PowerThe AX6240Z is a professional dual-channel 1000 watt RMS power amplifier with integrated DSP technology. Two transformerless amplifiers drive 70/100V loads with clean, cool-running Class-D power.
Superior ProtectionIndependent DC and thermal overload protection automatically protects your amplifier and speakers without shutting down audio. "Zero-attack" limiters are present on all output channels for optimal speaker protection.
Unsurpassed Energy EfficiencyState-of-the-art energy-saving technology with up to 85% power efficiency drastically reduces energy cost. Ultra-light, ultra-low noise and ultra-efficient switch-mode power supplies provide noise-free audio, superior transient response, and low power consumption.
Diverse Connectivity and ControlThe AX6240Z features two line level inputs that can utilize Euroblock or combination XLR/TRS connectors, secured 4-position terminal strip speaker output connections, and a remote power terminal for sequential power control.




Behringer EUROCOM AX6240Z 1000W 70/100V Dual Amplifier w/DSP, USB & Ethernet Control

BrandBehringer
ModelAX6240Z

Part Number247-016
UPC736211842176

Product CategoryCommercial Contractor Power Amplifiers
Unit of MeasureEA

Weight22.7500 lbs.
