Behringer EUROCOM CL2264 Loudspeaker

Behringer CL2264 Overview

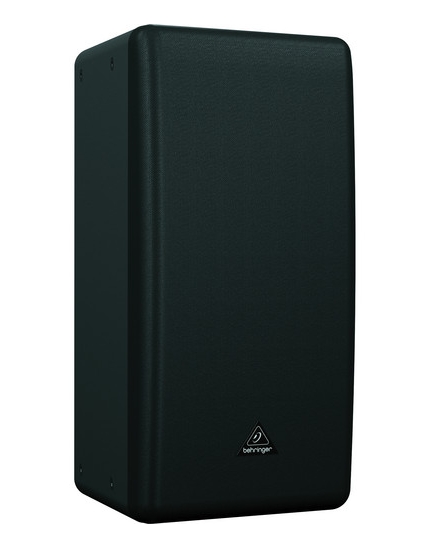

The black EUROCOM CL2264 Loudspeaker from Behringer features a 12" woofer and a 1.35" high-frequency driver. They are designed to provide an even response across the audible spectrum with a continuous sound pressure level (SPL) handling of 119 dB. It can be used in a variety of venues that require fixed installation applications such as theaters, auditoriums, houses of worship, themed entertainment venues, and sporting venues or for fill and delay systems in large rooms.
The CL2264 has a rotatable waveguide with a 60° by 40° coverage pattern, which allows you to change the speaker orientation from vertical to horizontal. The passive crossover can be bypassed for operation in a bi-amped configuration.








Multiple threaded inserts for flexible installation including Omnimount bolt pattern






Threaded mounting-point inserts in the internal brackets provide a rated load factor of at least 10 times overall cabinet weight, making the CL2264 safe for flown installation






Passive crossover with overload circuitry for driver protection






Dual NL4 connectors provide compatibility with Speakon cables






Powder coated steel grille






Internally braced and acoustically inert 15° trapezoidal birch plywood enclosure ideal for array applications



Behringer CL2264 Specs





Speakers
1x 12.0" (304.8 mm) woofer1x 1.35" (34.29 mm) high frequency driver


Horn Waveguide
60º H x 40º V


Inputs
2x NL4 Speakon connectors1x 4-position terminal strip


Frequency Range
41 Hz to 20 kHz (-10 dB)


Frequency Response
46 Hz to 18 kHz (+/- 3 dB)


Crossover
Mode: BypassableFrequency: 2 kHz


Maximum SPL
Continuous: 119 dBMaximum: 125 dB


Sensitivity
96 dB (1 W @ 1 m)


Power Handling
200 W RMS @ 40 VLow Frequency Driver: 250 WHigh Frequency Driver: 30 W


Impedance
8 Ω (nominal)


Directivity
Factor: 13.5 (Q)Index: 11 dB (DI)


Dispersion
60º H x 40º


Overload Protection
Full range power limiting to protect drivers and crossovers


Enclosure
Trapezoidal 15° side angle


Construction
Laminated birch plywoodSteel grille


Rigging Points
23 x M10 threaded points4 x M8 threaded inserts for OmniMount 60 series


Dimensions (H x W x D)
29.5 x 15.4 x 16.9" (74.9 x 39.0 x 42.9 cm)


Weight
57.6 lb (26.2 kg)
