Behringer Eurocom CL3296 Loudspeaker

Behringer CL3296 Overview

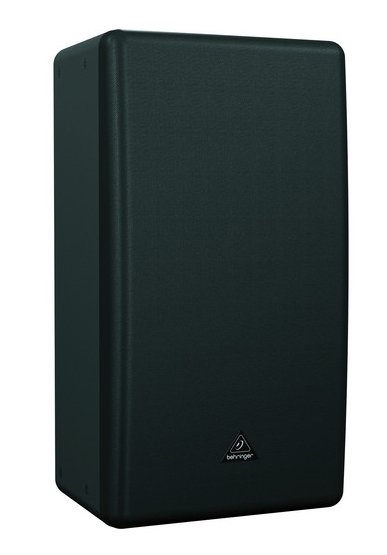

The black Eurocom CL3296 Loudspeaker from Behringer features a 12" woofer, a 6" mid-range driver, and a 1.35" compression high-end driver. They are designed to provide an even response across the audible spectrum with a continuous sound pressure level (SPL) handling of 119dB. It can be used in a variety of fixed installation applications in venues such as auditoriums, clubs, theaters, sports venues, or in houses of worship.
The CL3296 has a 90° horizontal x 60° vertical rotatable waveguide, which allows you to change the speaker orientation from vertical to horizontal without altering the coverage pattern. The passive crossovers at 600Hz and 3.8kHz can be bypassed for operation in a bi-amped configuration. The CL3296 has dual NL4 speaker connectors for compatibility with Speakon connectors and a 4-poisition terminal strip.








Multiple threaded inserts for flexible installation including Omnimount bolt pattern






Threaded mounting-point inserts in the internal brackets provide a rated load factor of at least 10 times overall cabinet weight, making the CL3296 safe for flown installation






Internally braced and acoustically inert 15° trapezoidal birch plywood enclosure ideal for array applications


Behringer CL3296 Specs





Active or Passive
Passive


Drivers
1x 12.0" (304.8 mm) low frequency driver @ 300 W1x 6.0" (152.4 mm) mid frequency driver @ 75 W1x 1.35" (34.29 mm) high frequency driver @ 30 W


Connectors
2x NL41x 4-position terminal strip connection


Frequency Range
37 Hz to 20 kHz (-10 dB)


Frequency Response
42 Hz to 18 kHz (+/-3 dB)


Dispersion
90º H x 60º V (nominal)


Directivity
Factor: 8.7 (Q)Index: 9.4 dB (DI)


Sensitivity
96 dB (1 W @ 1 m passive)


Crossover
Modes: BypassableFrequencies: 600 Hz, 3.8 kHz


Power Handling
200 W RMS @ 40 V (long term, IEC passive)


Maximum Sound Pressure Level (SPL)
Continuous: 119 dBPeak: 125 dB


Overload Protection
Full range power limiting to protect drivers and crossovers


Impedance
8 Ω


Grille
Steel


Enclosure
Trapezoidal 15° side angle with laminated birch plywood


Horn Waveguide
90° horizontal x 60° vertical rotatable waveguide


Rigging Points
23 x M10 threaded points4 x M8 threaded inserts for OmniMount 60 series


Dimensions (H x W x D)
31.9 x 18.5 x 16.5" (81.1 x 47.0 x 41.80 cm)


Weight

67.8 lb (30.8 kg)
