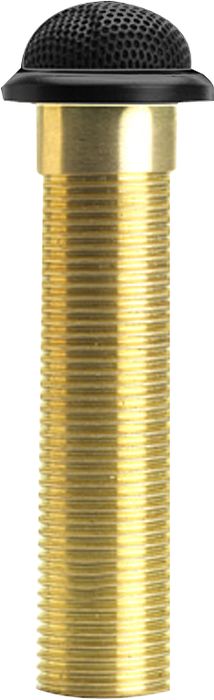

Shure MX395B Microflex Low Profile Boundary Microphone

Shure

The Shure Microflex MX395B/O Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. It is perfect for boardrooms, meeting rooms, and other sites where aesthetics are important. This MX395 mic is only 1 in. (2.5 cm) in diameter, and extends just 2 cm above the mounting surface when installed, yet it delivers clear, high quality sound. Choose from a selection of colors and pickup patterns for customized table installations.


Features

Only 1.25 inch (3.8 cm) in diameter
Omnidirectional polar pattern
Wide dynamic range and smooth frequency response
Logic input for remote LED control
Radio Frequency filtering CommShield Technology
Includes rubber isolation rings and fastening hex nut

MX395B Microflex Low Profile Boundary Microphone Specifications:

Type: Condenser (electret bias)
Frequency Response: 50—17000 Hz
Polar Pattern: Omnidirectional
Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
Output Configuration: Active balanced
Sensitivity (at 1 kHz , open circuit voltage): —28 dBV/Pa (42 mV) 1 Pascal=94 dB SPL: Maximum Sound Pressure Level (1 kHz at 1% THD, 1 kOhms load): 114 dB
Equivalent output Noise (A-weighted): 21 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 73 dB
Dynamic Range (1 kOhms load at 1 kHz): 93 dB
Common Mode Rejection (10 Hz—100 kHz): 45 dB minimum
Preamplifier output Clipping level (1% THD): —8 dBV (0.4 V)
Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Weight Net: 0.30 lbs. (0.136 kg)
Logic Connections: LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage:-0.7V to 50V.
Environmental Conditions: Operating Temperature: -18—57 C (0—135 degrees F); Storage Temperature: -29—74 degrees C (-20—165 degrees F); Relative Humidity: 0—95%
Power Requirements : 11—52 Vdc phantom, 2.0 mA
.


www.music-blvd.com $178
