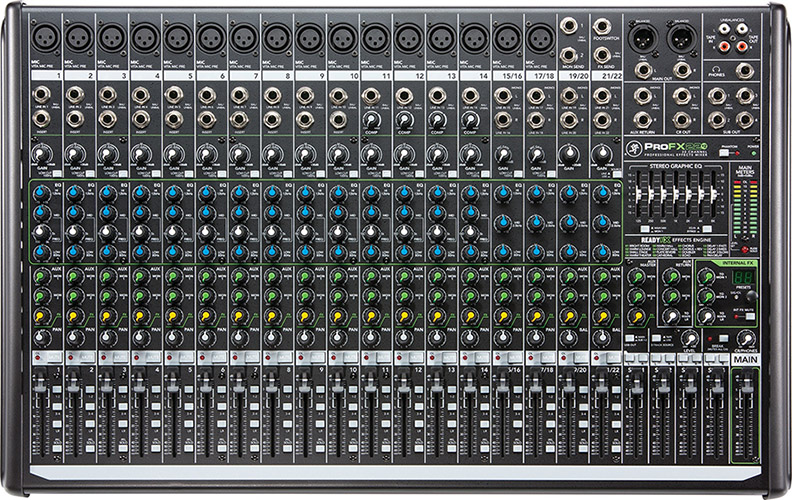

Mackie ProFX22v2 22-Channel 4-Bus FX Mixer with USB

OVERVIEW
Sixteen scrumptious mic pres along with FX, EQ and more.


The latest development in Mackie's small format mixers, the ProFX series v2 sounds better than ever and supplies convenient features at every knob, fader, input and putput. This is the ProFX22v2. It features 16 extremely low-noise Mackie Vita™ mic preamps designed to add life to any input, as well as the all-new ReadyFX™ effects engine with 16 great-sounding effects including reverbs, delays and choruses. Single-knob channel compression for smooth, even dynamic control (ch. 11-14). Live applications A 7-band graphic EQ is available on the master output, switchable for tuning mains or monitors, and an aux output is perfect for driving a monitor mix. A USB output/input can record your show or supply recorded music to the system. There is a 3-band EQ (80Hz, 2.5kHz and 12kHz) on all three input channels. The midrange is sweepable. Each channel features individual channel mutes and an overload indicator. The input scheme features 16 XLR inputs with TRS option, as well as dual 1/4" stereo input channels. A built-in USB interface allows recorded music to be played between sets, and you can even use it to bus your mix to a recording device. 60mm faders, four flexible subgroups. You can directly connect guitar, bass and other instruments via Hi-Z input or connect a microphone and take advantage of the Vita preamp. It features a 100Hz low-cut filter and 48V phantom power on all mic channels, along with a stereo RCA tape I/O with input level control. A headphone output with separate level control gives your engineer a second point of reference. The ProFX22v2 also has Balanced XLR and balanced/unbalance ¼-inch main outputs, an FX mute with remote control via footswitch, and a break switch that mutes all channels for music playback between sets. Built like a Mackie Mackie 's legendary Built-Like-A-Tank design is reflected in the solid steel chassis, tough ABS side protection, and quality posts and knobs combine to protect your investment. Rugged and roadworthy are two of the most common adsjectives used to describe Mackie equipment. With mixers, that is a critical attribute. For international traveling, the ProFX22v2 includes a robust internal multi-voltage power supply. Built in USB recording interface with simple setup via Mac or PC Choose to record subgroups 1/2 or main L/R mix, or send separate USB input level control to mains. The USB output is routable to full-featured channel strip, making it great for live recording and perfect for home studios. Stream playback music for live or studio applications. Includes user-friendly Tracktion® recording software




FEATURES Format

Analog/digital: Analog
Powered: No
Output (8 ohms): Not applicable

Analog inputs

Total: 22
Mic preamps: 16
XLR/TRS combo jacks: No
XLR only jacks: 16
1/4" only jacks: 22
RCA (stereo pair): 1
Phantom power: Yes (+48V)

Analog outputs

Main XLR out: 2
Main 1/4" out: 2
Aux XLR: Not applicable
Aux 1/4": 3
RCA (stereo pair): 1
Headphone: 1

Onboard effects

Compression: Yes
Reverb: Yes
Delay: Yes
Chorus/flange: Yes

Equalization

Type: Analog
Bands per channel: 3
Treble: Yes
High midrange: No
Sweep high midrange: No
Midrange: Yes
Sweep midrange: Yes
Low midrange: No
Sweep Low midrange: No
Low: Yes
Q: No
Low cut: No
Master graphic: 7-band

Inserts/buses

Inserts (channel): 10
Inserts (master): Not applicable
Buses: 4
Sub groups: 4
Connectivity
USB: Yes
FireWire: No
WiFi: No
ADAT: No
Thunderbolt: No
S/PDIF No
MIDI: No

Other


Width: 28.4" (950mm)

Height: 8.1" (206mm)
Depth: 20.1" (611mm)
Weight: 19.0 lbs. (8.8 kg)
Automation: No
Fader type: 60mm
Motorized faders: No



Order today. Popular mixer for bands miking drum sets.
