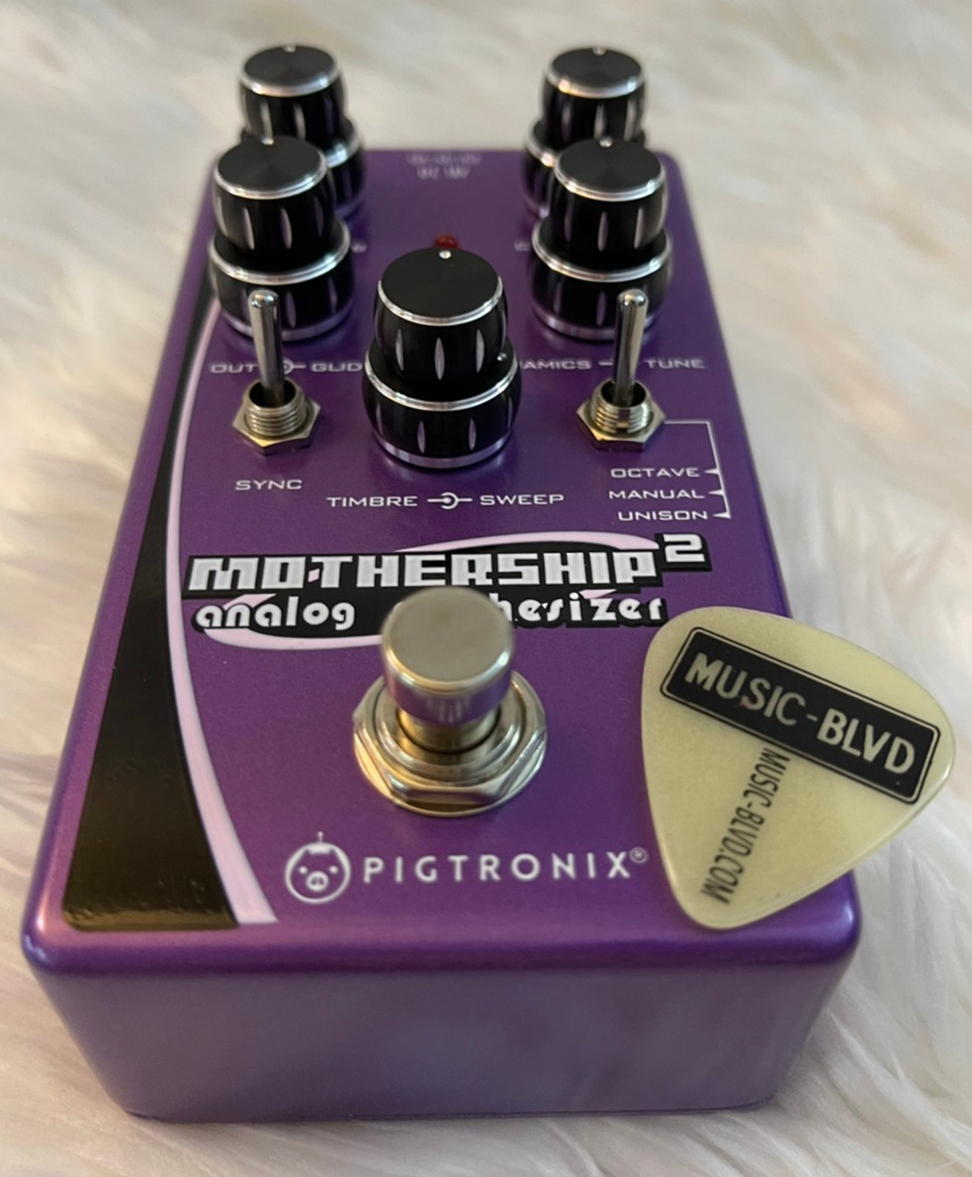

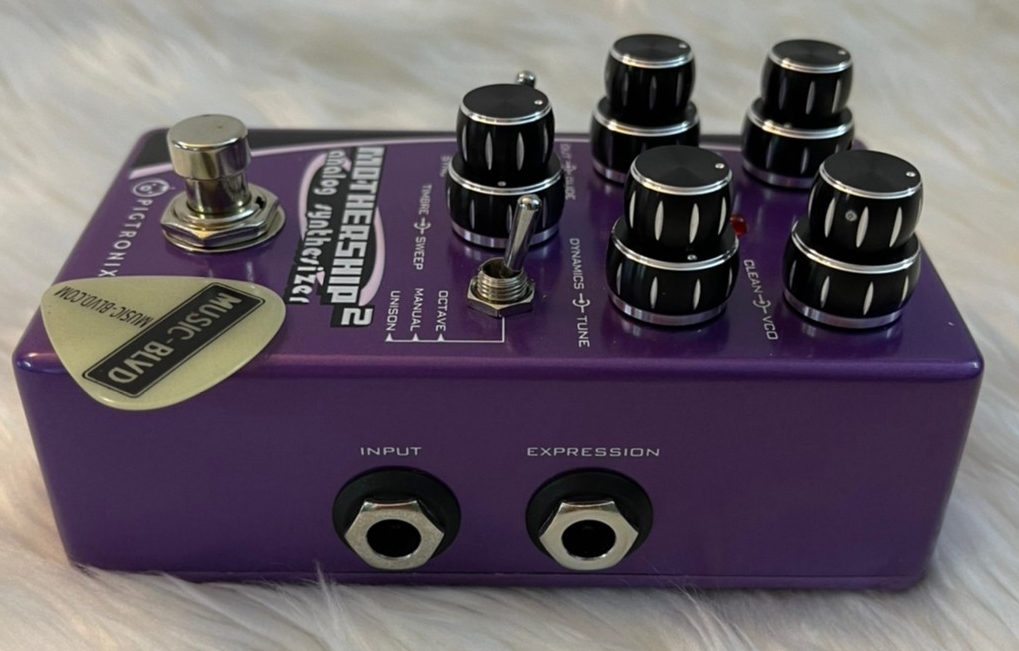

Pigtronix Mothership 2 Analog Synthesizer Pedal

Analog Synth Tone for Your Guitar or Bass
Turn your electric guitar or bass into a 3-voice analog synthesizer, with the Pigtronix Mothership 2 pedal. Five custom dual-concentric knobs offer impressive control over synth parameters, including individual level knobs for the triangle wave, square wave, and sine wave oscillators. Combined with your clean guitar tone, you've got a massive synth voice that can cover three octaves, and it tracks your guitar's pitch and amplitude with precision. Complete with oscillator sync for ripping lead sounds and a glide function for smooth pitch sweep effects, the Pigtronix Mothership 2 synth pedal will open up a whole new world of creative potential for your guitar or bass.











Shake the house with sub-octave bass
The Pigtronix Mothership 2 is full of sonic tricks. Want to generate some serious low end? Bring in the Sub Octave. Locked to the input signal, the Mothership's Sub Octave fills out the bottom end with a fat sine wave oscillator, adding serious girth to your sound. There's even a Sub Out jack, so you can run the Sub Octave into a separate bass amp.




Generate intervals for extremely musical results
Use the Mothership 2's 3-way tuning switch to generate fat stacks of synth tone. Beyond Unison and Octave Up settings, you've got access to musical intervals including Major 3rd, 4th, and 5th. For classic ripping synth sounds, engage the Sync function to lock the triangle and square oscillators together — then modulate them via the control input for even more sonic excitement.




Expression input for real-time manipulation
Connect an expression pedal or CV source to the Mothership 2's expression input for maximum sonic control. Use it to modulate the main oscillator in parallel with the onboard knobs and Glide settings for classic sync sweep effects. Ask any guitarist at Sweetwater — the Pigtronix Mothership 2 can generate tones and textures you simply can't achieve with any other effects pedal.




Pigtronix Mothership 2 Analog Synthesizer Pedal Features:

3-voice analog synthesizer pedal for electric guitar and bass
Combine triangle, square, and sine wave oscillators for massive synth sounds
Separate sub output allows you to send the sub-octave oscillator to a separate amplifier
Fast and precise real-time pitch and amplitude tracking
Fine-tune the feel and response with variable amplitude tracking
Glide control for portamento effects
Custom dual-concentric knobs give you access to 10 parameters in a compact design
3-way tuning switch offers Unison, Octave Up, and Interval (Major 3rd, 4th, and 5th) settings
Sync function for classic synth sounds and effects
Expression/CV input for external control (TRS/TS input, 0-5V)
18V/300mA operation, power supply included





Tech Specs



Pedal Type
3-voice Synth Guitar/Bass pedal


Analog/Digital
Analog


Inputs
1 x 1/4" (instrument)


Outputs
1 x 1/4" (main out), 1 x 1/4" (sub out)


Other I/O
1 x 1/4" TRS (expression)


Effects
Triangle, Square, Sub, Octave


True Bypass
Yes


Power Source
18V DC 300mA power supply (included)


Manufacturer Part Number
MS2
