Shure MX395 Microflex Low-Profile Cardioid,Boundary,Figure8 Microphone for Installs (Black,Silver)

Key Features


For Speech and Vocal Capture
Logic Control with Bi-Color Status LED
Low-Visibility Design
Cardioid Polar Pattern
Resists Cell Phone Interference

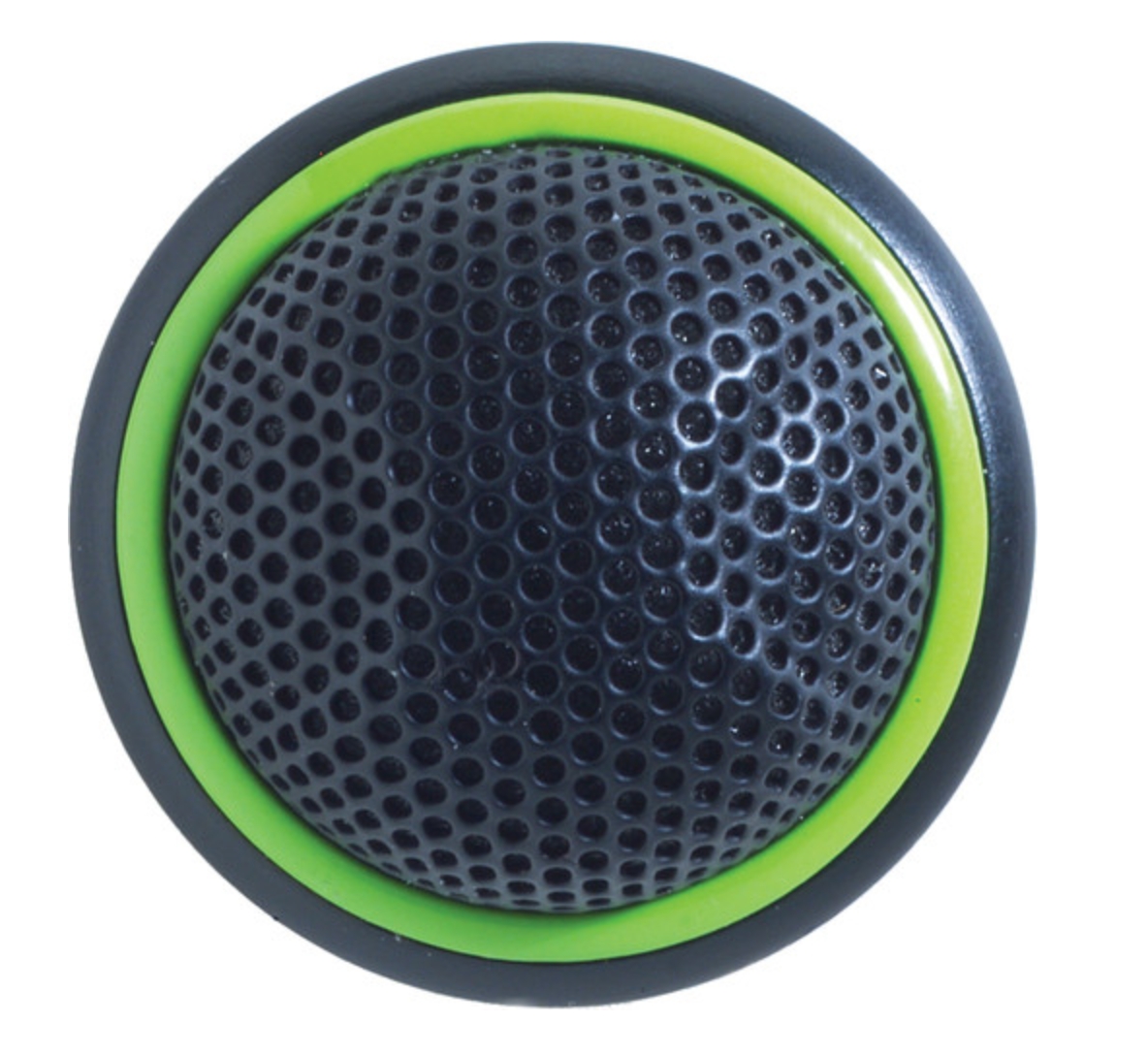

This black Shure MX395-LED Microflex with Logic Control LED is a cardioid boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.



This black Shure MX395-LED Microflex with Logic Control LED is a cardioid boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.
The MX395-LED can be permanently installed on conference tables, desks, or lecterns using the included mounting hardware. Its low-profile design is only 1" in diameter and extends just 0.8" above the mounting surface, ideal for boardrooms and other sites where minimal mic visibility is of high priority and aesthetics are important.
This version of the MX395-LED features a cardioid polar pattern best used for a single person or two people sitting side by side. The mic takes advantage of the boundary effect to capture clear speech with reduced room ambience for intelligibility. Use the built-in, low-cut filter to attenuate low-frequency table noise that can muddy your sound.
The MX395-LED can be logic-controlled remotely by various automatic mixers, teleconferencing systems, and control systems. A bi-color LED indicates the status of the mic.
Designed with proprietary CommShield technology, the MX395-LED resists interference from devices such as cell phones and two-way communication devices.
The MX395-LED is equipped with a 5-pin XLR connector and requires 48 to 52V phantom to operate.


In the Box

Shure MX395-LED Microflex Low-Profile Cardioid Boundary Microphone with Logic-Control LED for Installs (Black)
Rubber Isolation Rings
Fastening Hex Nut
Wing Nut
5-Pin XLR Female Connector
Limited 2-Year Warranty


www.music-blvd.com $178 - 210
(I)

Microphone



Form Factor
Boundary/Surface Mount


Sound Field
Mono


Capsule
Electret Condenser


Polar Pattern
Cardioid


High-Pass Filter
150 Hz, 6 dB/Octave


Indicators
1 x Red/Green Ring LED (Status)





Performance



Frequency Range
50 Hz to 17 kHz


Maximum SPL
121 dB SPL


Off-Axis Rejection
45 dB


Impedance
170 Ohms


Sensitivity
18 mV


Dynamic Range
93 dB


Signal-to-Noise Ratio
66 dB


Equivalent Noise Level
28 dB A-Weighted


THD
1%





Connectivity



Output Connectors (Analog)
1 x XLR 5-Pin Female





Power



Operating Voltage
48 to 52 V (Phantom Power)


Operating Current Consumption
8 mA





Physical



Color
Black


Mounting
Surface-Mount (with Included Hardware)


Operating Temperature
0 to 135°F / -17.78 to 57.22°C


Operating Humidity
0 to 95%


Storage Temperature
-20 to 165°F / -28 to 74°C


Dimensions
ø: 1.26 x H: 4.02" / ø: 32 x H: 102 mm


Weight
0.3 lb / 136 g





Packaging Info



Package Weight
0.85 lb


Box Dimensions (LxWxH)

9.9 x 4.8 x 2.9"
