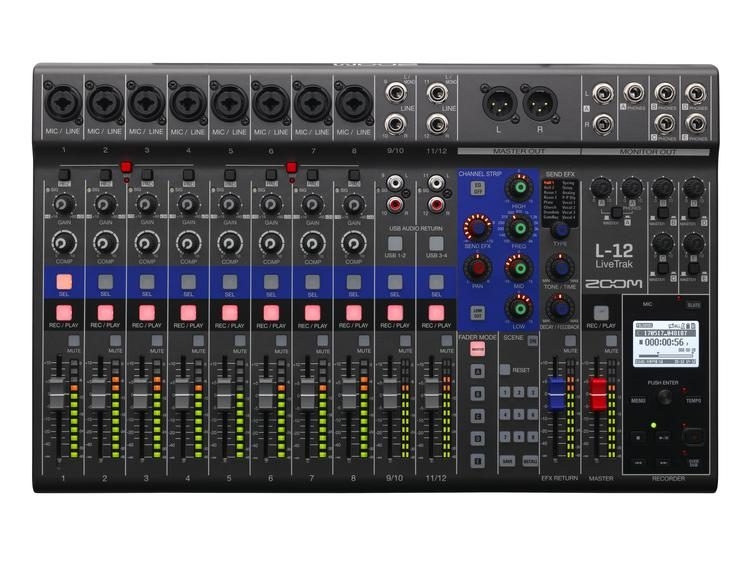

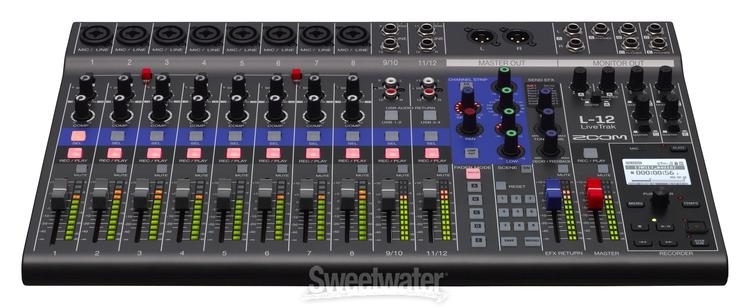

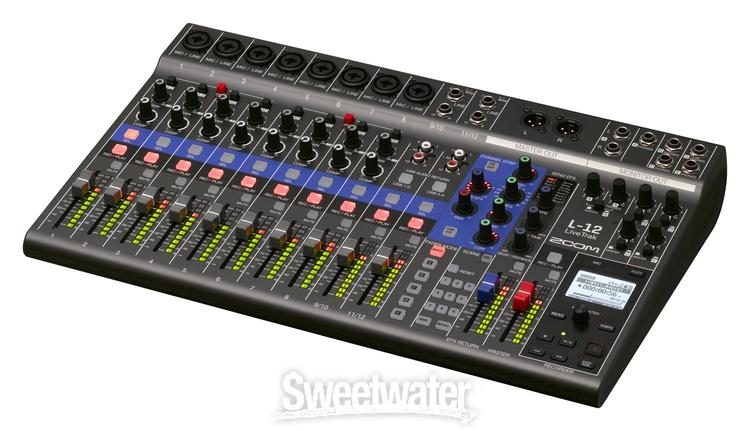

Zoom LiveTrak L-12 Digital Mixer

Recording, Mixing, Monitoring — This Mixer Does It All
Whether you want to capture a rehearsal, produce a quick demo, or create a great-sounding concert recording, the Zoom LiveTrak L-12 makes it easy. Not only can you record up to 12 individual channels, but you can also create custom headphone mixes for up to five band members and craft a polished live mix complete with studio-quality effects. You can complete your entire project on the L-12 or transfer all 12 discrete tracks to your DAW for editing and mixing. The LiveTrak L-12 also functions admirably as a 14-in/4-out USB audio interface for your Mac, PC, or iOS device.


Channel strip
3-band mid-parametric EQ
12 discrete channels (8 mono/2 stereo)
Backlit LCD screen
16 onboard effects
Custom scene settings
Built-in slate mic and metronome

Craft professional-quality live mixes
The LiveTrak L-12 makes crafting pro-quality live mixes easy. Each of its 12 discrete channels features a 3-band mid-parametric EQ and 16 built-in effects. Eight combo jacks accommodate both XLR and 1/4" connectors and are loaded with great-sounding mic preamps and dedicated compressors. Channels 1–2 offer hi-Z inputs for your electric guitar or bass, while channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices. You also get clear 12-segment LED metering for keeping an eye on your levels.

Produce great-sounding recordings
Recording your entire band has never been simpler, thanks to the Zoom LiveTrak L-12. Twelve individual tracks are conveniently captured onto an SD card at 24-bit/96kHz. You can then mix and overdub directly within the L-12 using its onboard effects or transfer the entire project to your DAW for further editing and processing. If you're performing live, you can record and mix your show simultaneously. You can even set up the L-12 to record automatically when the master fader detects a certain decibel level — perfect for situations where the engineer and performer are the same people.

Create custom headphone mixes
With the LiveTrack L-12, you don't need separate personal monitor mixers — the monitoring is built in. Each of its five monitor outputs provides a custom mix, so each member of your band can create and save their own. The L-12's headphone amplifier delivers lots of volume — even drummers won't have a difficult time hearing.

More than a mere digital mixer
The Zoom LiveTrak L-12 is equipped with several operation modes. Put it in Audio Interface mode and the L-12 transforms into a 14-in/4-out USB interface for your Mac, PC, or iOS device with flexible routing options. In USB Host mode, you can transfer projects and files to a connected USB flash drive. Card Reader mode allows you to transfer files to and from your computer.

Zoom LiveTrak L-12 Features:

12-channel digital mixer (8 mono/2 stereo)
14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
12-track 24-bit/96kHz recording directly to an SD card
Record up to 48kHz to a computer and an SD card simultaneously
8 combo jacks accommodate both XLR and 1/4" connectors
8 great-sounding mic preamps with phantom power and +60dB of gain
Channels 1–2 offer hi-Z inputs for your electric guitar or bass
Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
Each channel features a 3-band mid-parametric EQ and 16 built-in effects
Channels 1–8 include a dedicated compressor for controlling dynamics
Channels 3–8 have a -26dB pad for capturing loud sources
Create customizable, savable headphone mixes for up to 5 band members
Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
Clear 12-segment LED metering for keeping an eye on your levels
Save up to 9 scenes and recall your custom settings automatically
Record automatically when the master fader detects a certain dB level
Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
Built-in slate mic for recording comments or talk back
Onboard metronome for keeping the band in sync

Tech Specs

Number of Inputs
Mono (Mic/Line): 8 x Combo XLR-1/4" / 6.35 mm Stereo (Line): 2 x 1/4" / 6.35 mm TRS, 4 x RCA (2 x stereo pairs)


Number of Outputs
Master Out: 2 x XLR Monitor Out: A-E Monitor A: 2 x 1/4" / 6.35 mm TRS Monitor A-E: 5 x Headphone 1/4" / 6.35 mm TRS


Input Gain
Pad Off: +16 to +60 dB Pad On: −10 to +34 dB Hi-Z ON: +6 to +50 dB


Input Impedance
XLR: 3 kOhms TRS: 10 kOhms/1 MOhm (when Hi-Z on)


Maximum Input Levels
Mono (Mic/Line) Pad Off: 0 dBu (at 0 dBFS) Pad On: +26 dBu (at 0 dBFS) Stereo (Line): +16 dBu


Phantom Power
48 V


Maximum Output Levels
Master Out: +14.5 dBu Monitor A (TRS): +14.5 dBu Monitor A-E (Headphones): 42 mW + 42 mW at 60 Ohms


Output Impedances
100 Ohms


Buses
Master: 1 Monitor: 5 Send EFX: 1


Channel Control
Channel Strip Comp: Yes, channels 1 to 8 Low Cut: 75 Hz, 12 dB/oct EQ High: 10 kHz, ±15 dB, shelving Mid: 100 Hz to 8 kHz, ±15 dB, peaking Low: 100 Hz, ±15 dB, shelving


Level Meters
12-segment


Effects
16 types


Recorder
Maximum Simultaneous Recording Tracks: 14 at 44.1/48 kHz 12 at 96 kHz Maximum Simultaneous Playback Tracks: 12 Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo WAV format Recording Media: 16 MB to 2 GB SD cards 4 to 32 GB SDHC cards 64 to 512 GB SDXC cards


Audio Interface
44.1 / 48 kHz Recording: 14 channels Playback: 4 channels Bit depth: 24-bit Interface: USB 2.0


Card Reader
SDHC


USB Host
Class-compliant USB 2.0 high-speed


Sample Rate (Audio)
44.1, 48, 96 kHz


Frequency Characteristics
44.1 kHz: 20 Hz - 20 kHz (-1.0 dB) 96 kHz: 20 Hz - 40 kHz (-3.0 dB)


Equivalent Input Noise
Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input


Display
LCD with backlight (128×64 resolution)


Power Supply
AD-19 AC Adapter: 12 VDC / 2 A


Dimensions (W x D x H)
17.5 x 11.1 x 2.8" / 445.0 x 282.0 x 70.5 mm


Weight
5.6 lb / 2.5 kg (Approx. shipping weight = 8 lbs.)


Manufacturer Part Number
ZL12
