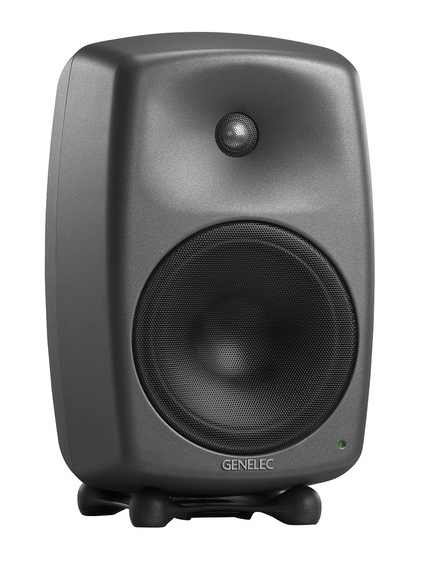

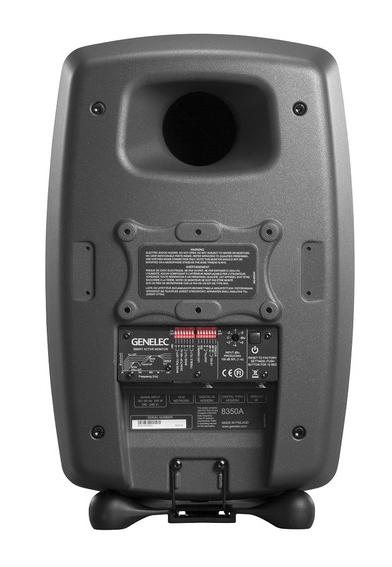

Genelec 8350A SAM Series 8 2-Way 350W Active Studio Monitor (Single)

Key Features


8" Woofer, 1" Metal-Dome Tweeter
350W Class-D Amplification
Proprietary Waveguide, Bass Reflex Port
High- and Low-Frequency Controls
Supports Software Control & Calibration
Low-Diffraction Aluminum Enclosure
XLR Analog and Digital Inputs
Selectable Automatic Power-Saving Mode
Multiple Mounting Options
Includes Isolation Stand


Genelec 8350A Specs


Studio Monitor



Monitor Type
Active 2-Way


Enclosure
Bass-Reflex, Shielded


Drivers
HF Driver: 1 x 1" / 25 mm TweeterLF Driver: 1 x 8" / 205 mm Woofer


Amplification
1 x HF Amplifier: Class-D Rated at 150 W1 x LF Amplifier: Class-D Rated at 200 W





Performance



Frequency Range
33 Hz to 22 kHz (at -6 dB)


Frequency Response
38 Hz to 20 kHz ± 1.5 dB


Maximum Sound Pressure Level (SPL)
121 dB


Signal-to-Noise Ratio
109 dBA


Total Harmonic Distortion (THD)
0.01%


Maximum Input Level
+25 dBu


Analog Input Sensitivity/Gain
+6 to -6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 5 dBA (at 3.28' / 1 m)





Signal Processing



EQ
2 x LF Shelf2 x HF Shelf


Filters
16 x Parametric Notch Filter





Crossover



Crossover Frequency
1.8 kHz





Connectivity



Audio I/O
1 x XLR Female Analog Input (10 Kilohms)1 x XLR AES/EBU Female Digital Input (110 Ohms)1 x XLR AES/EBU Male Digital Output/Thru (110 Ohms)


USB & Network I/O
2 x RJ45 (Controller, Network)





Digital Audio



Max Sample Rate/Resolution
192 kHz / 24-Bit





Power



AC Input Power
100 to 240 VAC, 50/60 Hz


Power Consumption
1 W (Standby)12 W (Idle)230 W (Maximum)





General



Enclosure Material
Aluminum


Dimensions (W x H x D)
11.3 x 17.8 x 10.9" / 28.6 x 45.2 x 27.8 cm


Weight
28.2 lb / 12.8 kg





Packaging Info



Package Weight
33.15 lb


Box Dimensions (LxWxH)
23.5 x 15.5 x 15.5"




THCT www.music-blvd.com $2,399
