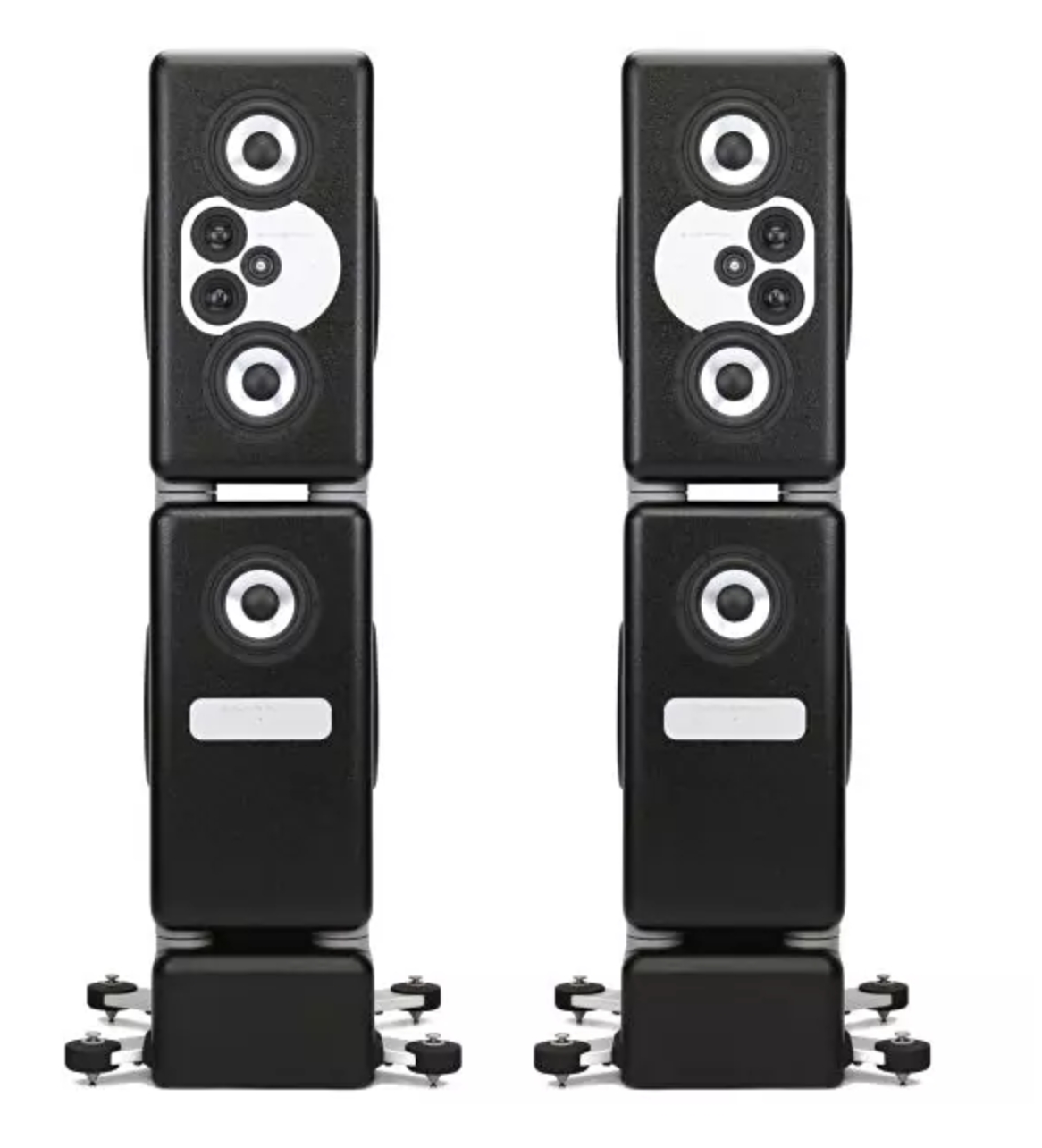

Barefoot Sound MasterStack12 4.5-Way Active Monitor Tower - Pair

Product Description

The Barefoot Sound MasterStack12 is Barefoot’s most advanced monitoring system to date. This astonishing modular monitoring tower combines an innovative 4.5-way active design with 10 state-of-the-art drivers, advanced DSP technology and nearly 3,500 total watts of power for unparalleled performance. The MasterStack12 is ideal for large format studios, and is the leading choice for professional audio engineers and producers around the world, including Chris Lord-Alge, Skrillex and more.
4.5-WAY SYSTEM
In a typical 4-way system, the subwoofers, woofers, mid-range drivers and tweeters all operate within their own designated frequency range. But Barefoot’s cutting-edge 4.5-way design uses different frequency ranges for each woofer to deliver a more even and balanced sound. All three woofers extend down to 80 Hz for extremely efficient low-frequency response. However, only the two woofers in the top enclosure extend all the way up to 200 Hz, which creates a smooth transition to the more directional high frequencies.
WORLD-CLASS DRIVERS
The MasterStack12 features a modular tower design with 10 drivers spread across two cabinets, as well as a third enclosure for signal and power distribution. Four 12-inch aluminum cone subwoofers with Dual-Force technology deliver earth shattering subs for to 18 Hz. Three 7-inch woofers work together to provide rich, deep lows, while two 2.5-inch midrange drivers offer plenty of detail and clarity. Finally, a 1-inch dual ring radiator tweeter delivers super-smooth highs all the way up to 40 Hz.
MEME TECHNOLOGY
All Barefoot Sound studio monitors are equipped with Multi-Emphasis Monitor Emulation, or MEME technology, which uses sophisticated DSP processing to emulate the sound of a wide range of classic studio monitors. Quickly reference your tracks on three additional monitor profiles and ensure your mixes will translate to any environment.
“Old School” mode emulates the sound of the iconic Yamaha NS10M monitors with an edgy, midrange-forward sound. The “Cube” setting is modeled after the legendary Auratone Sound Cube, giving your mixes a boxy, lo-fi sound. On the opposite end of the spectrum, the “Hi-Fi” setting emulates the sound of consumer hi-fi systems with a sweet high-end and warm midrange. And of course, the “flat” setting delivers the signature Barefoot sound that engineers, producers and musicians around the world have grown to know and love.
Specifications:

Controls: Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select
Input Impedance: 25 kOhm
Frequency Response: 8 Hz – 50 kHz (±3 dB), 26 Hz – 40 kHz (±1 dB)
Bass Response: -3 dB @ 18 Hz, Q = 0.707
Slope = 12 dB/octave
Cabinet: 180 liters total internal volume, Sealed sub enclosures, Sealed woofer enclosures, Sealed woofer enclosure, Machined aluminum baffle plate, aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout
Crossover Frequencies: 80/200/800/4000 Hz
Tweeter: 1″ ring radiator, advanced geometry motor, rear waveguide chamber; Amplifier: 25 W Hypex
Midranges: 2 x 2.5″ aluminum cones, Advanced geometry motor, ±2 mm linear excursion; Amplifier: 250 W Hypex
Woofers: 3 x 7″ aluminum cones, Advanced geometry motor, ±13 mm linear excursion; Amplifier: 500W Hypex
Subwoofers: 4 x 12″ aluminum cones, Advanced geometry motor, ±25 mm linear excursion; Amplifier: 2400W Hypex
AC Power Input: Nominal 115 VAC or 230 VAC selectable
Power Consumption: Idle: 100 W, Maximum: 1800 W
Weight: 280 lb per tower (127 kg) – no handles
Shipping: 325 lb per tower (147 kg) – no handles
Dimensions HxWxD: Cabinet: 63 x 14.4 x 21.9 inches (1600 x 366 x 556 mm)
Footprint WxD: 23 x 21.5 inches (584 x 546 mm)


Over a decade ago, Thomas Barefoot applied his expertise and experience as an engineer, scientist and inventor in the computer industry to his lifelong passion for music. Approaching the pro audio industry with a fresh pair of eyes, he concluded that every project would benefit from using monitors with the same sound quality, dynamic range and bass extension at each stage of the production process. The innovative reference monitor designs that Thomas subsequently developed not only deliver the same performance and quality from recording through mastering, they also turned the studio monitor speaker business on its head, outperforming many well-established high-end products.



Product Specifications



Condition
New


Length
21.9 in


Width
14.4 in


Height
63 in


Unit Weight
280 lb


Active or Passive
Active


Monitor Application
Mid-Field, Far-Field


driver_sizes
Tweeter: 1" ring radiator / Midrange: 2.25" aluminum cone / Woofer: 7" aluminum cone / Subwoofer: 12" aluminum cone


Number of Speakers
Pair


Input Connectors
AES/EBU XLR, Analog XLR


Amp Wattage
Tweeter: 250 W Hypex / Midrange: 250 W Hypex / Woofer: 500 W Hypex / Subwoofer: 2400 W Hypex


Impedance
Input: 25 kOhms


Frequency Range
18 Hz - 50 kHz, ± 3 dB
