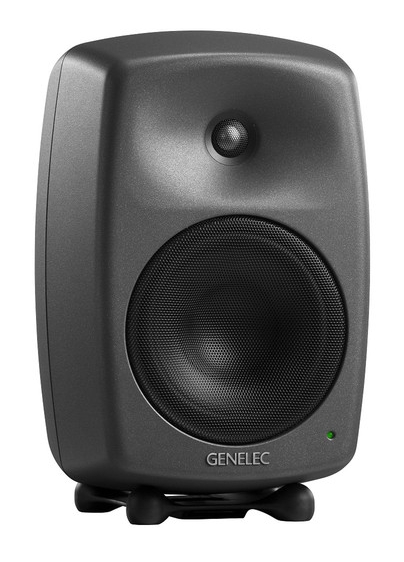

Genelec 8340A SAM Series 6.5 2-Way 300W Active Studio Monitor (Single)

Key Features


6.5" Woofer, 3/4" Metal-Dome Tweeter
300W Class-D Amplification
Proprietary Waveguide, Bass Reflex Port
High- and Low-Frequency Controls
Supports Software Control & Calibration
Low-Diffraction Aluminum Enclosure
XLR Analog and Digital Inputs
Selectable Automatic Power-Saving Mode
Multiple Mounting Options
Includes Isolation Stand


Genelec 8340A Specs


Studio Monitor

Monitor Type
Active 2-Way


Enclosure
Bass-Reflex, Shielded


Drivers
HF Driver: 1 x 0.75" / 1.91 cm TweeterLF Driver: 1 x 6.5" / 16.51 cm Woofer


Amplification
1 x HF Amplifier: Class-D Rated at 150 W1 x LF Amplifier: Class-D Rated at 150 W


Performance

Frequency Range
38 Hz to 22 kHz (at -6 dB)


Frequency Response
45 Hz to 20 kHz ± 1.5 dB


Maximum Sound Pressure Level (SPL)
118 dB


Signal-to-Noise Ratio
109 dBA


Total Harmonic Distortion (THD)
≤0.01%


Maximum Input Level
+25 dBu


Analog Input Sensitivity/Gain
+6 to -6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 5 dBA (at 3.28' / 1 m)





Signal Processing



EQ
2 x LF Shelf2 x HF Shelf


Filters
16 x Parametric Notch Filter

Crossover

Crossover Frequency
2.6 kHz

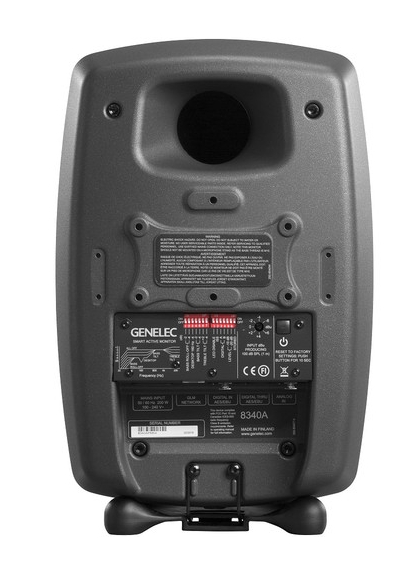

Connectivity


Audio I/O
1 x XLR Female Analog Input (10 Kilohms)1 x XLR AES/EBU Female Digital Input (110 Ohms)1 x XLR AES/EBU Male Digital Output/Thru (110 Ohms)


USB & Network I/O
2 x RJ45 (Controller, Network)


Digital Audio

Max Sample Rate/Resolution
192 kHz / 24-Bit

Power

AC Input Power
100 to 240 VAC, 50/60 Hz


Power Consumption
1 W (Standby)12 W (Idle)180 W (Maximum)

General

Enclosure Material
Aluminum

Dimensions (W x H x D)
9.3 x 14.4 x 8.8" / 23.6 x 36.6 x 22.4 cm

Weight
18.5 lb / 8.4 kg


Packaging Info

Package Weight
21 lb

Box Dimensions (LxWxH)
17 x 11.8 x 11.8"
