Electro-Voice RE2-N7 Wireless System with EV 767a Dynamic Element

Electro-Voice
Sophisticated professional features for an affordable price.

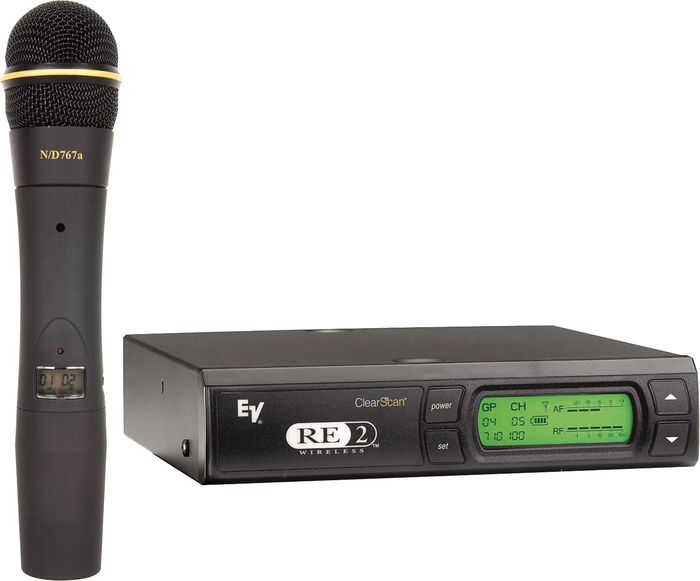

The RE-2 Wireless Microphone system combines frequency agility and ease of use like no other. The RE-2 transmitters and receivers operate over a 24 MHz band width in the UHF portion of the Radio Frequency spectrum. The high quality audio circuitry and advanced Radio Frequency (RF) signal processing offer broadcast quality signal-to-noise and audio clarity. The RE2-N7 System includes the RE-2 Diversity Receiver and the HTU2PRO Transmitter with N/D 767a Cardiod Dynamic Microphone Element.
Consumer Alert:
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.



Features

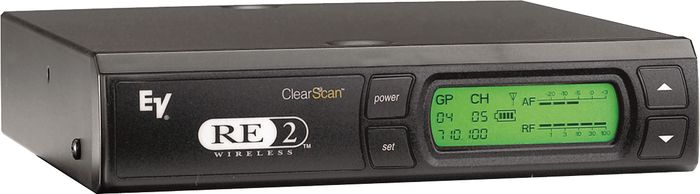

RE-2 Receiver
One-touch Auto-ClearScan
Programmable in 25kHz steps across 28 MHz
operating bandwidth
Backlit LCD displays the Group, Channel, Frequency, transmitter battery level, diversity operation, RF, and Audio signal level meters
Balanced XLR audio output for Microphone or Line level signals and a
1/4-inch line level jack
Fourth-generation Posi-phase diversity and advanced audio circuits
Unique "Guitar" setting
Detachable 1/4 wave antennas
RE-2 UHF Transmitter
Unique "smart" battery
LCD Displays Group and Channel, Frequency, or Battery Level
Low battery LED
One On/Off button that also acts as a mute
On/Off button can be disabled

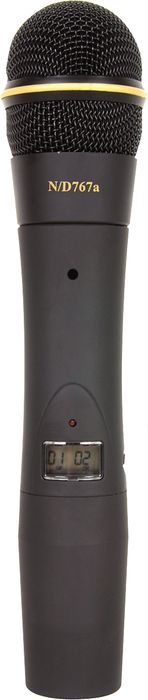

RE-2 UHF Handheld
NDYM 767a Dynamic premium vocal microphone
with VOBTM(Vocal-Optimized-Bass)
Internal 1/2-wave antenna



Order today and enjoy wireless performance at its finest.


RE2-N7 Wireless System with EV 767a Dynamic Element Specifications:


RE-2 Receiver
Receiver Type: Synthesized PLL
Frequency Range (RF): A Band 648 - 676 MHz (TV Channels 43 - 48),
B Band 696 - 724 MHz (TV Channels 54 - 56), D Band 798 — 822 Mhz, E Band 841 — 865 MHz
Number of Channels: >1122 possible frequencies, programmable in 25 kHz steps
Modulation: +/- 40 kHz
Diversity: Digital Posi-Phase True Diversity
RF Sensitivity:
Image Rejection: >60 dB
Squelch:Tone Code plus Amplitude
Ultimate Quieting: >100 dB
FCC Certification: Approved under Part 15
Power Requirements: 12-15V AC/DC, 300mA
Antennas Detachable: 1/4 wave
Receiver Dimensions: 1.72 in. H x 7.50 in. W x 5.9 in., D 43.69 mm H x 190.50 mm W x 150 mm D
Audio Parameters
Frequency Response: 50-15 kHz +/- 2dB
Balanced Output (typical): (max @ 40 kHz deviation) 330mV RMS 100K OHM Load, Mic Position, 10mV to 2V RMS 100K OHM Load, Line Position
Unbalanced Output: adjustable 10 mV to 1V RMS, 100K OHM Load
Distortion: <1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)
Signal-to-Noise Ratio: >100 dB A Weighted
Dynamic Range: >100 dB
Transmitter: HTU-2
Radiated Output: 30 mW Typical
Microphone Head: N/D 767a supercardioid N/DYM dynamic
TA4F Connector Wiring: Pin 1: Ground; Pin 2 Mic Input;
Pin 3: +5V bias; Pin 4: +5V bias through a 3k
Audio Gain Adjustment Range: 40 dB BPU-2
26 dB HTU-2
Power Requirements: 9 Volt Alkaline Battery
Battery Life (Typical): >8 hours with 9-Volt Alkaline Typical
Handheld Antenna: Internal 1/2 wave
Dimensions (Handheld): 24.0 cm (9.4 in.) Long
Transmitter
Radiated Output Normal 5 mW typical, High 50 mW typical
Microphone Head: 767a Supercardioid N/DYM Dynamic
Handheld Antenna: Internal 1/2 wave
Dimensions (Handheld): 26.8 cm (10.5 in.) Long
