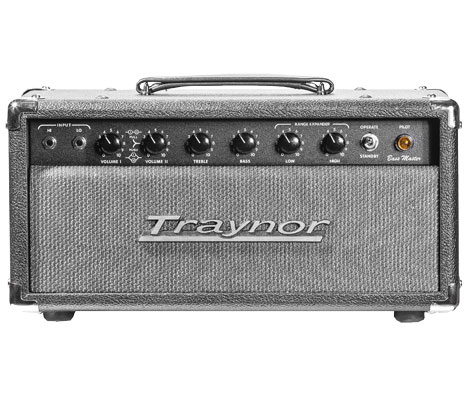

Traynor YBA-1Mod1

Traynor Amps introduced the YBA-1Mod1 amp at NAMM 2014 in response the popularity of the LE 50th Anniversary YBA-1 they unveiled last year. The YBA-1Mod1 is an all-tube, 2-channel beast that's capable of running at 40, 20, 5, 1, or 0.1 watts.

The Traynor YBA1 Mod1 is the perfect amp for the discerning player who appreciates incredible boutique tube tone, but doesn't appreciate typical boutique amp pricing. Building on the popular (and highly sought after) Traynor Limited Edition 50th Anniversary Traynor YBA-1 head, the YBA1 Mod 1 uses three hand selected 12AX7 preamp tubes and two EL34 power tubes in a Class-AB design to deliver a purely classic guitar sound.
The two separate input channels on the YBA1 Mod 1 each have their own gain and character. The channels can be blended in parallel, or simply pull Channel Two Volume pot to run both channels in series for additional gain, with Channel Two Volume now acting as a master volume for the amp.
Four shared tone controls (Treble, Bass, High and Low Range Expanders) make it easy to dial in your perfect sound. While 'Treble' and 'Bass' act as traditional tone controls, the Range Expanders function more as 'Mid' and 'Presence' controls, offering more dimension and versatility to the YBA1 Mod 1.
An output attenuator located on the back of the head allows the Traynor YBA-1 Mod 1 Head to be tamed for use in studio, rehearsal hall or smaller stages. Five level settings (at 40, 20, 5, 1.0 and 0.5 watts) allow the master level to be controlled while leaving the characteristic tone of the amp relatively unchanged, even at bedroom volume.



Class-AB All Tube Design
Uses Hand Selected 12AX7 Preamp Tubes (x3) and EL34 Power Tubes (x2)
Two Individually Voiced Input Channels
Channels Can Be Blended in Parallel or Run in Series for Higher Gain
Push Pull Pot on Channel Two for Series / Parallel Mode
Channel Two Gain Control Acts as Master Volume in Series Mode
Traditional Tone Controls with Traynor Low and High Expanders
Output Power Attenuator (40, 20, 5, 1 and 0.1 watts)
Made in Canada




Type
Guitar Head Amplifier


Cabinet Impedance (Ohms)
selectable 4/8 ohms


Power @ min. impedance (Watts)
40


Minimum Impedance (Ohms)
4


Burst Power - 2 cycle
40


Input Channels
2


Inputs
Hi (0dB) and Lo (-6dB) can be run Series or Parallel


Controls
Volume I, Treble, Bass, Low Range Expander, High Range Expander


Master Volume Control
Power Attenuator


LED Indicators
Power/Standby


Protection
Mains Fuse


External speaker output / location
2x 1/4-inch Jacks (Parallel)


Dimensions (DWH, inches)
10 x 18 x 9.3


Dimensions (DWH, cm)
25.4 x 45.7 x 23.6


Weight (lbs / kg)
14.5 / 6.6



Specifications subject to change without notice
