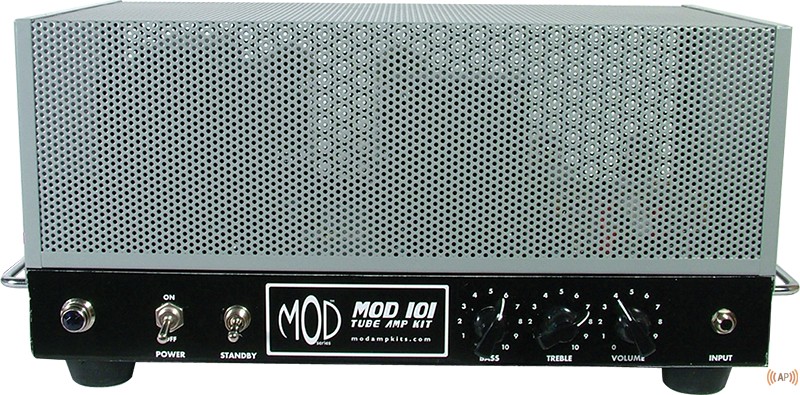

Mod Kits DIY - MOD 101 Guitar Amplifier

MOD 101 Guitar Amp Kit Features:


All Tube Design (solid-state diodes used only for full-wave rectification)
60W output power into 4, 8, 16 and 20 Ω
1 channel with customizable: tone stack, power tubes, negative feedback, input miller capacitance volt divider/LP filter, and preamp cathode bypass cap (all parts included)
Vintage channel controls: bass, treble and volume
Vintage pilot lamp and screw-on jewel cover for power-on indication
DPDT power switch circuit for instant high-voltage drain in power-off
Standby Switch
Output Impedance Selector Switch: 4, 8, 16 and 20 Ω
Tubes included: one 12AX7 (preamp), one 12AT7 (phase inverter), one matched pair of 6L6GCs, EL34s (JJ Electronic brand)
Hammond Mfg 374BX world power transformer and 1650P push-pull output transformer
Fixed bias class AB power tube operation with bias pot adjustment
Point to point hand wiring using terminal strips
Carbon film resistors
Mallory coupling caps
Pre-punched painted steel chassis
Assembled Kit Weight: 24 lbs.
Assembled Kit Dimensions: 16" Width x 8" Depth x 8 1/8" Height



www.music-blvd.com $501/ $595
