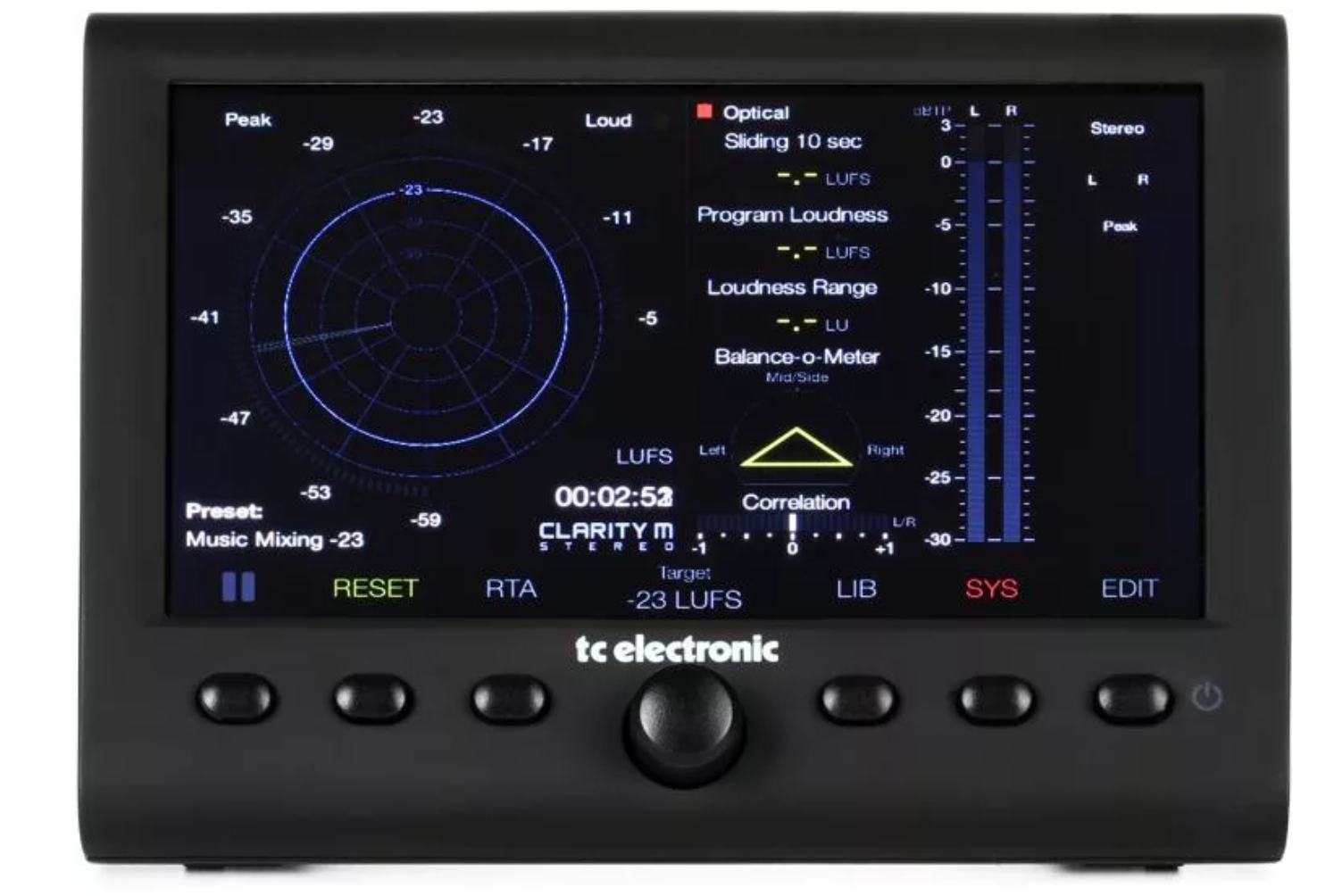

TC Electronic Clarity M Stereo Loudness Meter

Mix with Your Ears — Confirm with Your Eyes
We trust our ears to guide us in our mixes. But the truth is that our ears can overlook subtle mix issues like phasing, clipping, and low dynamic range. And before you know it, a late-night session becomes more about triage than serving the song. But thanks to the TC Electronic Clarity M Stereo, vital metering for your stereo sessions is always right where you need it — no windows or clumsy calibration tools to get in the way of your work. Connect the Clarity M Stereo to your computer or console and get the instant feedback you need to make the best mixing, mastering, and post-production decisions, all in compliance with industry loudness standards. The crisp 7" full-color display is easy to read in any environment, and TC Electronic's iconic loudness radar and high-accuracy RTA will ensure your ears always return to magnetic north.









Redefine your workflow with the Clarity M Stereo
Take it from Sweetwater: Plug-in-based monitoring tools can tax your system and make for a tedious session of window dragging. But the TC Electronic Clarity M is self-contained. Its 7" high-resolution color display provides all your mix and mastering feedback in the same spot on your desk, freeing up your DAW for its intended purpose: making your music sound great.




TC Electronic Clarity M Stereo Features:

Professional stereo audio meter for mixing, mastering, and post production
7" high-resolution LCD display for precision metering in all studio environments
USB connection for hassle-free VST, Audio Units, and AAX plug-in metering
Stereo 96kHz AES3 digital audio on 75-ohm BNC connectors for broadcast-grade metering
Ultimate metering tool to check your mix for phase, balance, frequency distribution, loudness, clipping, channel weighting, and mono compatibility
Vector scope for detailed left-right analysis
High-accuracy real-time analyzer with 1/3-octave resolution
Easy-to-read Balance-O-Meter to quickly check left-right and mid-side balances
Precision correlation meter alerts you to phase issues
State-of-the-art scalable true-peak meter identifies clipping in DACs, CODECs, and downstream filters
Renowned LM6 loudness radar meter gives you all essential loudness monitoring information on a single screen
Detailed statistics overview for all key loudness measuring parameters
Allows for your custom logo on LCD display
Compliant with all major broadcast standards, including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32, and OP-59
RAM-mount compatible for wall or ceiling mounting (mounting hardware not included)
Stereo optical input for TOSlink source
General purpose input (GPI) for meter reset


Tech Specs

Processor Type: Metering Toolbox
Number of Channels: Stereo
Digital Inputs: 1 x Optical Toslink, 1 x DB-15 (AES3, S/PDIF)
USB: 1 x USB Micro-B
Features: Metering Analysis, RTA, Vector Scope, Balance Check, Loudness Monitoring
Software: Clarity M Plug-in App
Power Supply: 12V DC power supply (included)
Height: 5.5"
Width: 7.2"
Depth: 1.5"
Weight: 2.6 lbs.
Manufacturer Part Number: 000-DC800-00010

www.music-blvd.com $299
