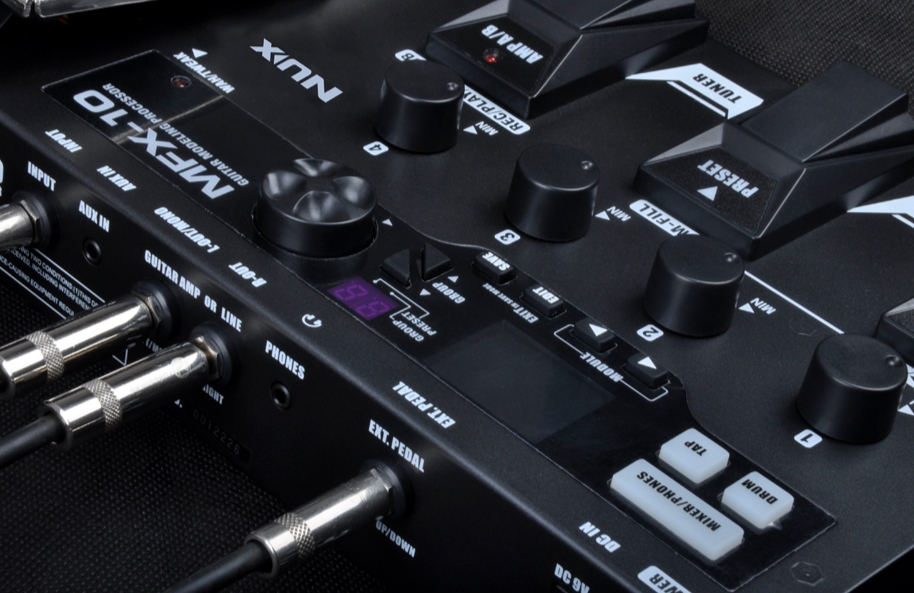

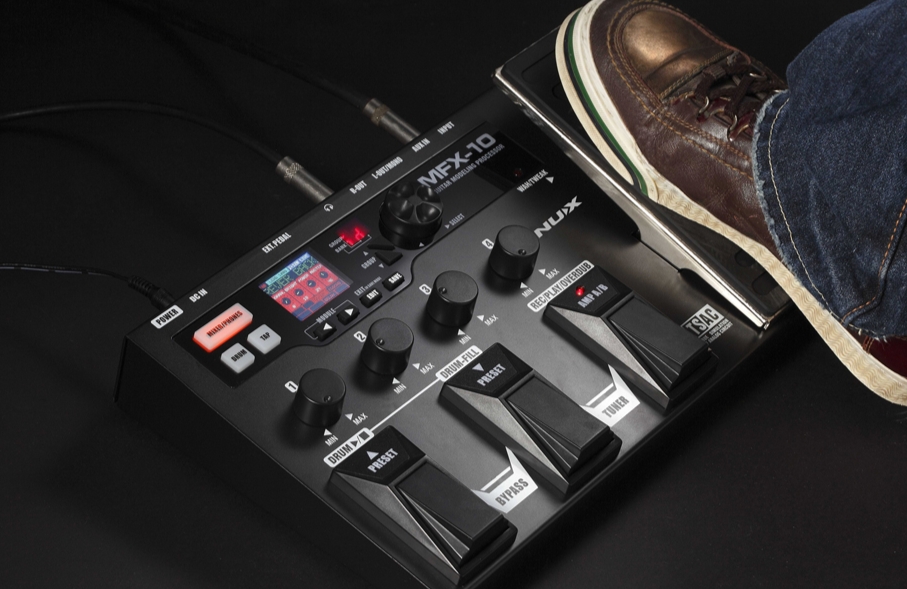

nux MFX-10

Features








- A total of 55 models, up to eight can be used simultaneously
- 19 classic amp and pedal models with A/B channel switching
- Vintage 3-band passive EQ for every amp model
- Parametric EQ with extra middle frequency sweep control for pedals
- 12 cabinet models provide two different modes for guitar amplifier or mixer/PA input
- Built-in drum machine with CD quality PCM sounds
- Up to 20 seconds phrase loop with sound on sound
- The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
- The expression pedal lets you adjust the volume or effects parameters in real time
- Big backlit 160 x 128 TFT LCD for clear, easy viewing of the device’s name, parameters, tuner display etc
- A total of 72 presets: 36 factory + 36 user presets. The A/B switch allows you to use up to 144 presets
- New generation 32-bit DSP, High Performance 24 Bit/ 48kHz AD/DA convertors
- Latest TS/AC (True Simulation of Analog Circuits) Technology duplicates the distortion and tone shape of tube and vintage effect pedals








Specifications









Effects types55






Effect modulesMax. 8 simultaneous modules






Preset memoryTotal 72 presets (up to 144 presets with AMP A/B switch)






User settings4 Preset (A-D) x 9 (1-9) groups = 36






Factory setting






Sampling Frequency44.1kHz






AD/DA converter24bit






Signal processing






Frequency response20Hz-20,000Hz ±1dB






THD+N< 0.01%






Display160 x 128 TFT LCD






JacksINPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN






Input-10dBv @ 1M






Output-10dBv (Output load impedance of 10k or more)






AUX In-10dBV @ 10k or more






Headphones20mW + 20mW (into 32 load)






Power9V DC, 500mA, ACD-007A (Negative pin)






Dimensions330(L) × 202(W) × 72(H)mm






Weight2.65kg






AccessoriesOwner's Manual, Power Adaptor
