nux NAI-5 Acoustic Guitar effect Optima Air

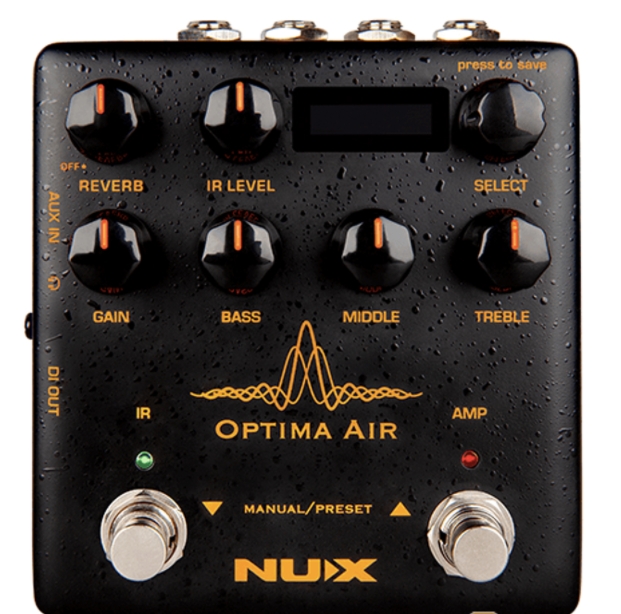

Control Panel

Reverb: One Knob Reverb effect control. It adjusts the Dry/Wet and Decay parameters. Or you can turn it OFF by tweaking to 0
IR Level: Adjusts the simulated signal (Impulse Response file) LEVEL
Select (Push to Save): In manual mode, you can choose the IR file. And you can save your customized preset by pushing the knob
Gain: Adjusts the signal input Gain level
3-Band EQ:Bass: Adjusts the low frequency levelMiddle: Adjusts the middle frequency levelTreble: Adjusts the high frequency level
IR Footswitch:Manual Mode: Engage/disengage the selected IR file. Acoustic guitar simulation ON/OFFPreset Mode: Bank DOWNAlso, if you are editing a preset, you can push the IR footswitch to exit without saving
AMP Footswitch:Manual Mode: Activates the pre-amp section. When you engage the AMP, you can use the Gain and the 3-band EQPreset Mode: Bank UPAlso, If you are editing a preset, while you changing the preset name you can push the AMP footswitch and move the cursor to the next selection area to choose a letter, number or symbol

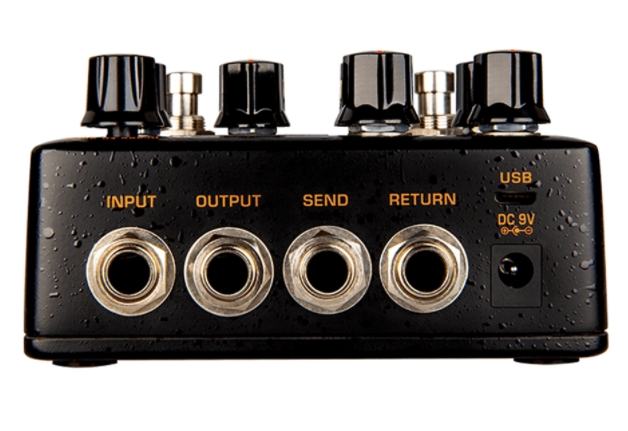

I/O

Input: 6.35mm (1/4-inch) jack input
Output: 6.35mm (1/4-inch) jack output
Send/Return: 6.35mm (1/4-inch) effect loop inputs
Micro B USB Port: You can connect the pedal to your computer to use the Optima Air software to create, edit and save your presets. And update the pedal when a new firmware released.
Power Input: 9V Negative TIP power adapter input
3.5mm (1/8-inch) Auxiliary Input: You can connect music player to play along with music
3.5mm (1/8-inch) Headphones Output: For silent practicing or recording
XLR DI Output: For direct connection to mixer (or PA system)

Specifications

24-bit, 48-kHz Sampling Quality

Acoustic Guitar Impulse Response and Pre-Amp controls

15 built-in acoustic guitar profiles with IR level control

9 Preset Slots

Reverb effect

Gain, Bass, Middle and Treble controls

6.35mm (1/4-inch) Send/Return, effects loop

3.5mm (1/8-inch) Auxiliary input

3.5mm (1/8-inch) Headphones input

XLR DI Out

Micro B USB Port for USB Audio Stream and Edit Software
