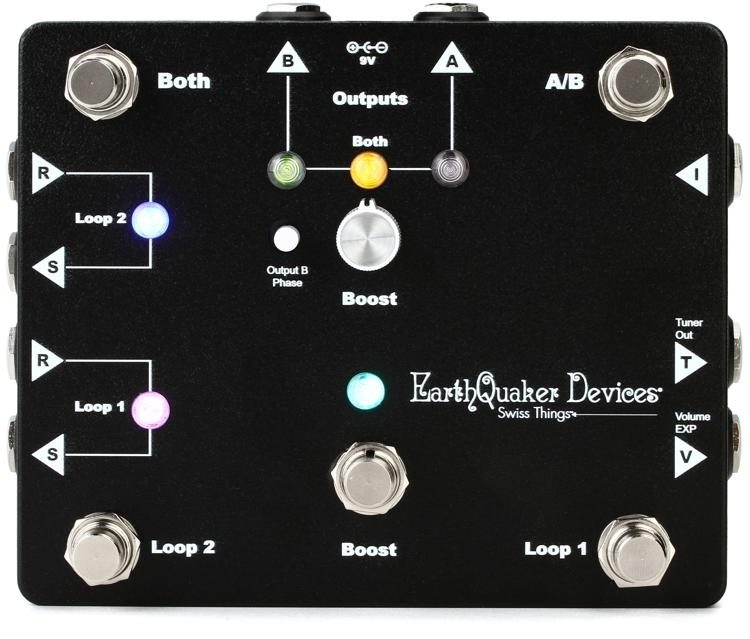

EarthQuaker Devices Swiss Things Pedalboard Reconciler

Loop Switching, AB-Y, Clean Boost, and Much More
Looking for an effects pedal loop switcher that actually leaves some space on your pedalboard for your effects pedals? Check out the EarthQuaker Devices Swiss Things Pedalboard Reconciler. There's a lot going on here — Swiss Things combines two true bypass, Flexi-Switch enabled effects loops, AB-Y functionality (with transformer-isolated outputs), a buffered tuner output, a 20dB clean boost, and an expression pedal jack for volume control. One effects loop is unbuffered for best operation with fuzzes and other finicky pedals, the other effects loop is buffered and intended for reverbs, delays, and other time-based effects. With this many routing options and handy functions, the EarthQuaker Devices Swiss Things Pedalboard Reconciler may be the key to creating your ideal pedalboard rig.














Now Playing: EarthQuaker Devices Swiss Things Pedalboard Reconciler Demo







EarthQuaker Devices Swiss Things Pedalboard Reconciler







Designer Notes with Jamie Stillman Ep. 1 - Swiss Things | EarthQuaker Devices







Swiss Things First Impression - Mason Stoops | EarthQuaker Devices







Sweetwater Visits EarthQuaker Day 2017 - Factory Tour






Two effects loops, with momentary or latching switches
The Swiss Things pedal features two loops for your effects pedals. One is buffered for maximum signal quality, while the other is unbuffered to play nicely with certain fuzzes and other pedals that don't work well with buffered signals. You can switch each loop independently, and you can even hold a loop switch for momentary operation.






Perfect for dual-amp setups
Dual outputs make the Swiss Things Pedalboard Reconciler the perfect solution for two-amp setups. Hit the A/B switch to toggle between them, or hit the Both switch to engage them both. The outputs are transformer isolated for maximum signal integrity.




Built-in clean boost could replace one of your pedals
Guitarists at Sweetwater love using a clean boost pedal to overdrive an amp's front end. The Swiss Things Pedalboard Reconciler features a clean boost with up to 20dB of gain, plenty to get your tube amp cooking. Best of all, the boost features a Flexi-Switch too, allowing for momentary boosting in addition to latching operation.





EarthQuaker Devices Swiss Things Pedalboard Reconciler Features:

Compact utility pedal features effects loop switching, clean boost, AB-Y routing, and more
Flexi-Switch switching allows for latching or momentary operation
Expression pedal input allows you to control volume without using a tone-sucking volume pedal
One loop is unbuffered for best operation with certain fuzz pedals
Other loop is buffered for maximum signal integrity
AB-Y switching with transformer-isolated outputs is perfect for two-amp guitar rigs
Adds a lot of functionality to your pedalboard without taking up lots of space
Clean boost with up to 20dB of gain may eliminate your need for a separate boost pedal





Tech Specs

Type: Pedal Loop Switcher, Boost, AB-Y
Inputs: 1 x 1/4" (instrument), 2 x 1/4" (returns)
Outputs: 2 x 1/4" (A/B out), 2 x 1/4" (sends), 1 x 1/4" (tuner out), 1 x 1/4" (volume expression)
True Bypass: Yes
Power Source: 9V DC power supply (sold separately)
Power Usage: 40mA
Height: 2.25"
Width: 5.65"
Depth: 4.75"
Weight: 1.75 lbs.
Manufacturer Part Number: EQDSWIS
