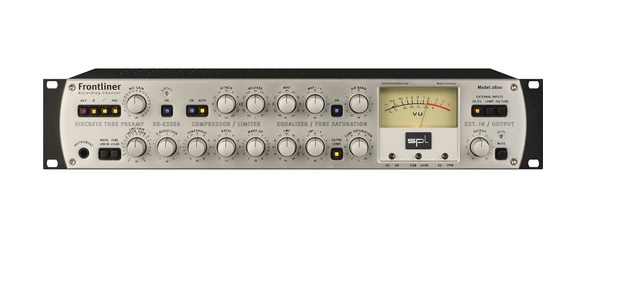

SPL Frontliner Modular Recording Channel

SPL SPLFRONLINE Specs





Number of Channels
One


Maximum Input Level
Microphone Input @ 13 dB gain: +9 dBuXLRLine Input: +22 dBuXLRInstrument Input: +11.5 dBu1/4" TRSDe-Esser Input: +21 dBuXLR I/OCompressor Input: +21 dBuXLR I/OEQ / Tube Saturation Input: +21 dBuXLR I/O


Phantom Power
Yes


Maximum Output Level
21.5 dBu


Gain Control Range
Microphone Input: +13 dB to +68 dBLine Input: -20 dB to +10 dBInstrument Input: +6 dB to +43 dB


Frequency Range
(-3 dB)Channel Strip: 10 Hz to 50 kHzMicrophone Preamplifier: ‹10 Hz to 50 kHzLine Preamplifier: ‹10 Hz to 50 kHzInstrument Preamplifier: ‹10 Hz to 50 kHzDe-Esser: ‹10 Hz to 140 kHzCompressor: ‹10 Hz to 180 kHzEqualizer/Tube Saturation: ‹10 Hz to 60 kHz


Common Mode Rejection
(@ 1kHz, 0 dBu input level and unity gain)Microphone Preamplifier: ›80 dBLine Preamplifier: ›75 dBInstrument Preamplifier: ›75 dBDe-Esser: ›75 dBCompressor: ›75 dBEqualizer/Tube Saturation Line: ›75 dB


Total Harmonic Distortion
(in %, @ 1kHz, 0 dBu input level and unity gain)Channel Strip: 0.03Microphone Preamplifier: 0.03Line Preamplifier: 0.03Instrument Preamplifier: 0.03De-Esser: 0.002Compressor: 0.007Equalizer/Tube Saturation Line: 0.01


Signal to Noise Ratio
(A-weighted)Microphone Preamplifier (VU=30 dB): -91.5 dBLine Preamplifier: -94.7 dBInstrument Preamplifier: -95.5 dBDe-Esser: -97 dBCompressor: -97 dBEqualizer/Tube Saturation Line: -91 dB


Dynamic Range Unweighted
Channel Strip: 110 dB (microphone input › main outputs, @ 30 dB)Channel Strip: 112 dB (line input › main outputs)Channel Strip: 112 dB (instrument input › main outputs)Microphone Preamplifier (@ 30 dB): 110 dBLine Preamplifier: 114 dBInstrument Preamplifier: 105 dBDe-Esser: 115 dBCompressor: 115 dBEqualizer/Tube Saturation Line: 112 dB


E.I.N. Microphone Preamplifier
-127 dBu(@ 68dB gain, Rs=150 Ohms, 20 to 22 kHz)


Metering
VU switchable


Power Supply
Two Toroidal TransformerAudio Transformer: 20 VATransformer other currents: 15 V AFuses: 120 V AC 60 Hz , 630 mA (230 V AC, 50 Hz:315 mA)63 Voltage Selector: 115 V / 230 VPower Consumption: 29 W


A/D Converter
Optional 24 Bit/192 kHz Converter Module available


Dimensions (WxHxD)
19.0 x 3.5 x 10.3" (482 x 88 x 261mm)(depth with controls and sockets)


Weight
12.6 lb (5.7 kg)





Packaging Info



Package Weight
16.305 lb


Box Dimensions (LxWxH)
21 x 19.3 x 15.1"
