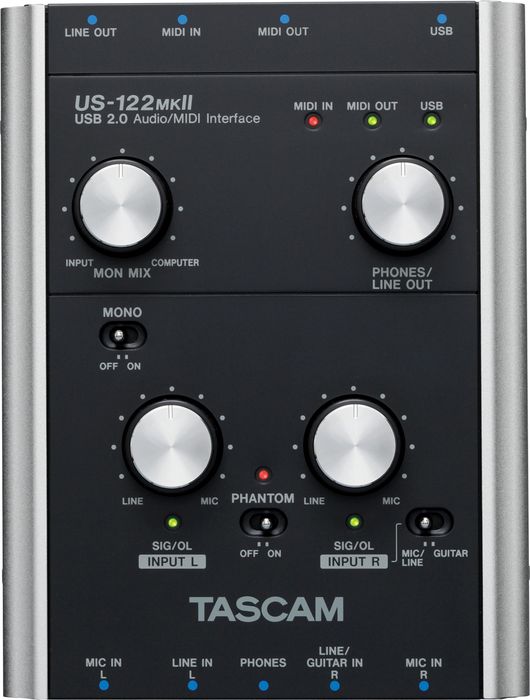

TASCAM US-122MKII USB 2.0 2-channel Audio/MIDI Interface

Offers superior performance in a smaller package.




The Tascam US-122 MKII seamlessly continues the worldwide success of its predecessors, the US-122 and US-122L, offering improved recording quality from a USB MIDI interface further reduced in size. Since it doesn't require an additional power supply, this portable audio interface is perfect for creating stereo recordings with a laptop computer wherever you go. Or use it to substitute the on-board soundcard of your Windows or Macintosh computer to play back music or video files with better sound quality. XLR microphone inputs with switchable phantom power and high-quality preamps are the basis for good-sounding recordings while input signals can be listened to by headphones with zero latency. Line-level sources or an instrument can be connected as well. The Tascam US-122 MKII has a mono switch, one MIDI input and one MIDI output, and a line output on RCA connectors. The US-122MKII USB MIDI interface supports sample rates up to 24-bit/96kHz at resolution. While commercial audio CDs are produced at 44.1 kHz/16-bit, this interface offers you more than double the sample rate which means more detail for your recordings. (If you need four instead of two channels of simultaneous recording or playback and an additional digital I/O, have a look at the Tascam.
TASCAM US-122MKII USB 2.0 2-channel Audio/MIDI Interface Features:

Provides two audio inputs and two audio outputs for a Windows or Macintosh computer
Two XLR mic inputs
Switchable phantom power (48 volt)
High-quality, low-noise mic preamps
Two analogue line inputs (one switchable to high impedance for use with guitars, basses, etc.)
One MIDI input, one MIDI output
USB 2.0 equipped (also supports USB 1.1)
Up to 96-kHz/24-bit for high quality recordings
Zero-latency hardware monitoring with level control and mono switch
Level control for headphones and line output
USB-powered, no AC adapter required
Solid aluminum side panels
Cubase LE4 included

TASCAM US-122MKII USB 2.0 2-channel Audio/MIDI Interface Includes:

Cubase LE4 software

Get a versatile, powerful Interface for your room!
TASCAM US-122MKII USB 2.0 2-channel Audio/MIDI Interface Specifications:


Host computer compatibility: Windows
Operating systems: Windows XP 32 bit SP2/SP3, Windows XP 64 bit SP2, Windows Vista 32 bit SP2, Windows Vista 64 bit SP2
or later
Computer: Windows compatible computer with a USB port (USB 2.0 is recommended)
CPU/clock: Pentium 4 1.4 GHz or faster
AMD Athlon 1.4 GHz or faster (or equivalent processor)
Memory: 512 MB or more for Windows XP 32-bit and Windows Vista 32-bit
1 GB or more for Windows XP 64-bit and Windows Vista 64-bit Macintosh
Operating systems: Mac OS X 10.4.11, Mac OS X 10.5.6, or later
Computer: Apple Macintosh series equipped with a USB port as standard equipment
CPU/clock: Power PC G4, 1 GHz or faster, or Intel processor
Memory: 512 MB or more Analogue audio inputs and outputs
Mic input: XLR, balanced
Nominal input level
58 dBu (INPUT control set to MIC), 14 dBu (INPUT control set to LINE)
Maximum input level: +2 dBu (INPUT control set to LINE)
Headroom: 16 dB
Input impedance: 2.2 kOhm
Line input: 6.3-mm jack, unbalanced
Nominal input level: 40 dBu (INPUT control set to MIC): +4 dBu (INPUT control set to LINE)
Maximum input level: +20 dBu (INPUT control set to LINE)
Headroom: 16 dB
Input impedance: 15 kOhm
Guitar input (LINE/GUITAR IN R, GUITAR position): 6.3-mm jack, unbalanced
Nominal input level: 51 dBu (INPUT control set to MIC)
-7 dBu (INPUT control set to LINE)
Maximum input level: +9 dBV (INPUT control set to LINE)
Headroom: 16 dB
Input impedance: 1 MOhm
Line output (LINE OUT): RCA, unbalanced
Nominal output level: 10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ohm
Phones output (PHONES): 6.3-mm stereo jack
Maximum output power: 18 mW + 18 mW (32 Ohm) Other inputs and outputs
MIDI IN and MIDI OUT: 5-pin DIN connector (conform to MIDI specification)
USB port: USB series B connector (4-pin)
Format: USB 2.0 High speed (480 MHz), USB 2.0 Full speed (12 MHz, USB 1.1 equivalent) Audio performance
Sampling rate: 44.1 kHz / 48 kHz, 88.2 kHz / 96 kHz (USB 2.0, High-speed only)
Bit depth: 16/24 bit
Frequency response (MIC IN to LINE OUT), 44.1/48 kHz sampling rate: 20 Hz – 20 kHz, +0.5 dB/ 1 dB
Frequency response (MIC IN to LINE OUT), 88.2/96 kHz sampling rate: 20 Hz – 40 kHz, +0.5/ 1.5 dB
Signal-to-noise ratio (LINE IN to LINE OUT, INPUT control set to LINE, 20 kHz LPF), Through ADC and DAC: 98 dB(A)
Signal-to-noise ratio (LINE IN to LINE OUT, INPUT control set to LINE, 20 kHz LPF), Through direct monitor: 107 dB(A)
Total harmonic distortion (LINE IN to LINE OUT, INPUT control set to LINE, 1 kHz, +20 dBu input, 20 kHz LPF), Through ADC and DAC: 0.0045%
Total harmonic distortion (LINE IN to LINE OUT, INPUT control set to LINE, 1 kHz, +20 dBu input, 20 kHz LPF), Through direct monitor: 0.002% Power supply and other specifications
Power supply: via USB (5 V, max. 500 mA)
Operating temperature: 5 35 ° C
Dimensions (L x W x H): 7.04" x 5.35" x 1.85" (179 x 136 x 47 mm)
Weight: 0.7 kg
Included accessories: USB cable, Cubase LE4
