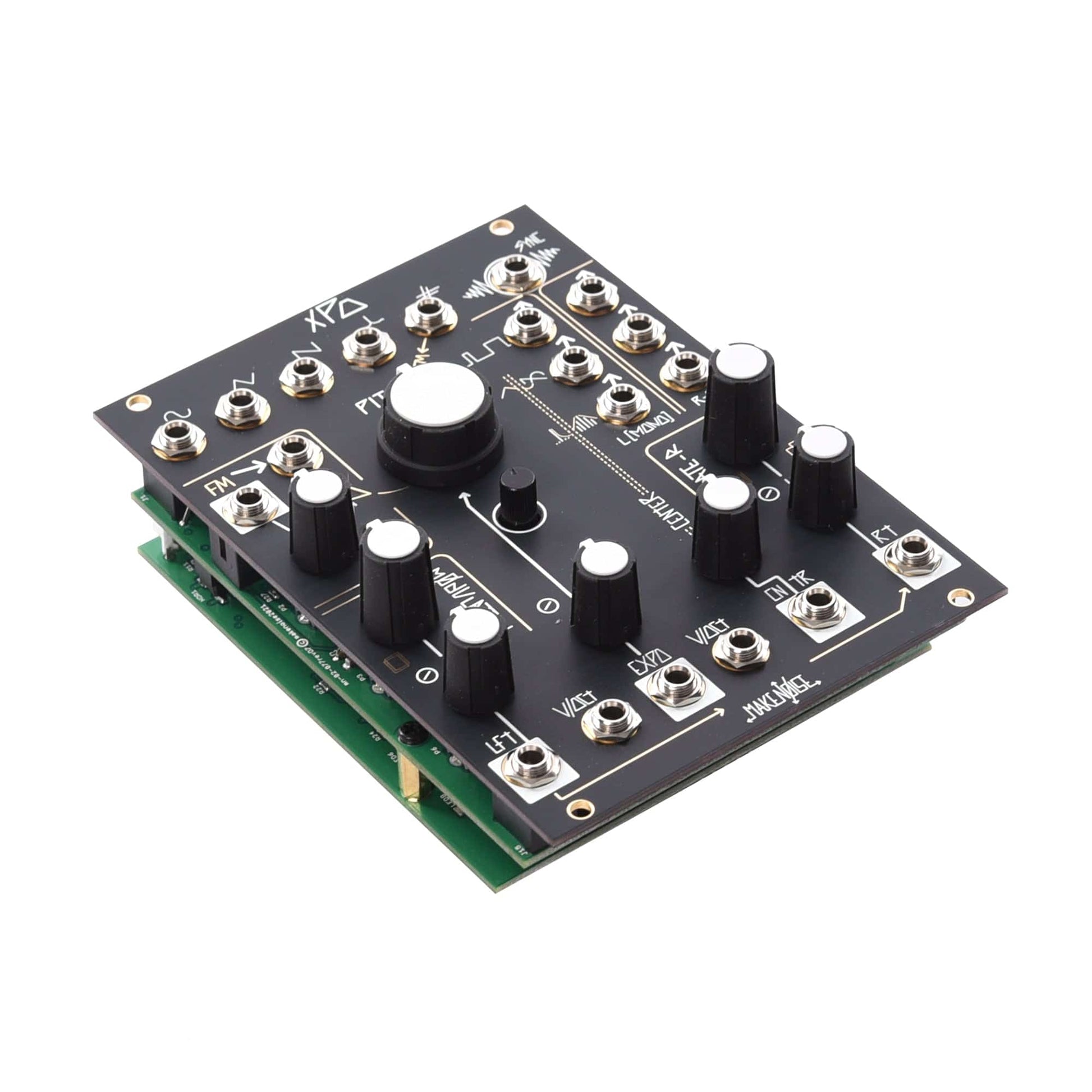

Make Noise XPO Stereo Prismatic Oscillator

Description

Make some noise for the new XPO stereo prismatic oscillator Eurorack module, by Make Noise! Founded by a self-taught electronic musical instrument designer, who began by building electronics for artists, working for Moog, and playing in bands, following three years of isolation on a mountaintop, Tony Rolando founded Make Noise in Asheville, North Carolina, where the crew he’s assembled has built a slew of strange, yet thoughtful modular synths. Inspired by the voice panning of vintage Oberheim OB-8 Synthesizers, the Make Noise XPO is a stereo analog VCO with eleven simultaneous outputs and powerful tone-shaping capabilities!



Features

Stereo Analog VCO with eleven simultaneous outputs (five mono outs and three stereo pairs)

Modulate Timbre via Stereo Pulse-Width Modulation, Stereo Vari-Timbre, and Stereo Wavefolding

Sine, Triangle, Sawtooth, Spike, and SUB mono outs

Unique Mono versions of all Stereo Waveforms via Left output normalizations

Modulate Left and Right channels together or separately thanks to normalization and attenuverters

Center parameter adds additional timbre control to both sides of Vari-Timbre and Wavefolded outputs

Linear FM Bus features voltage-control over FM depth and a normalization of SUB to FM input for easy GROWL

Hard SYNC circuit

Two 1v/oct inputs for transposition, melody stacking, or richest FM

Expo FM input with attenuverter

Designed to pair well with QPAS, Mimeophon, and X-PAN



Width: 18hp

Max Depth: (incl. power cable): 45mm

Power: 145mA @ +12V, 135mA @ -12V
