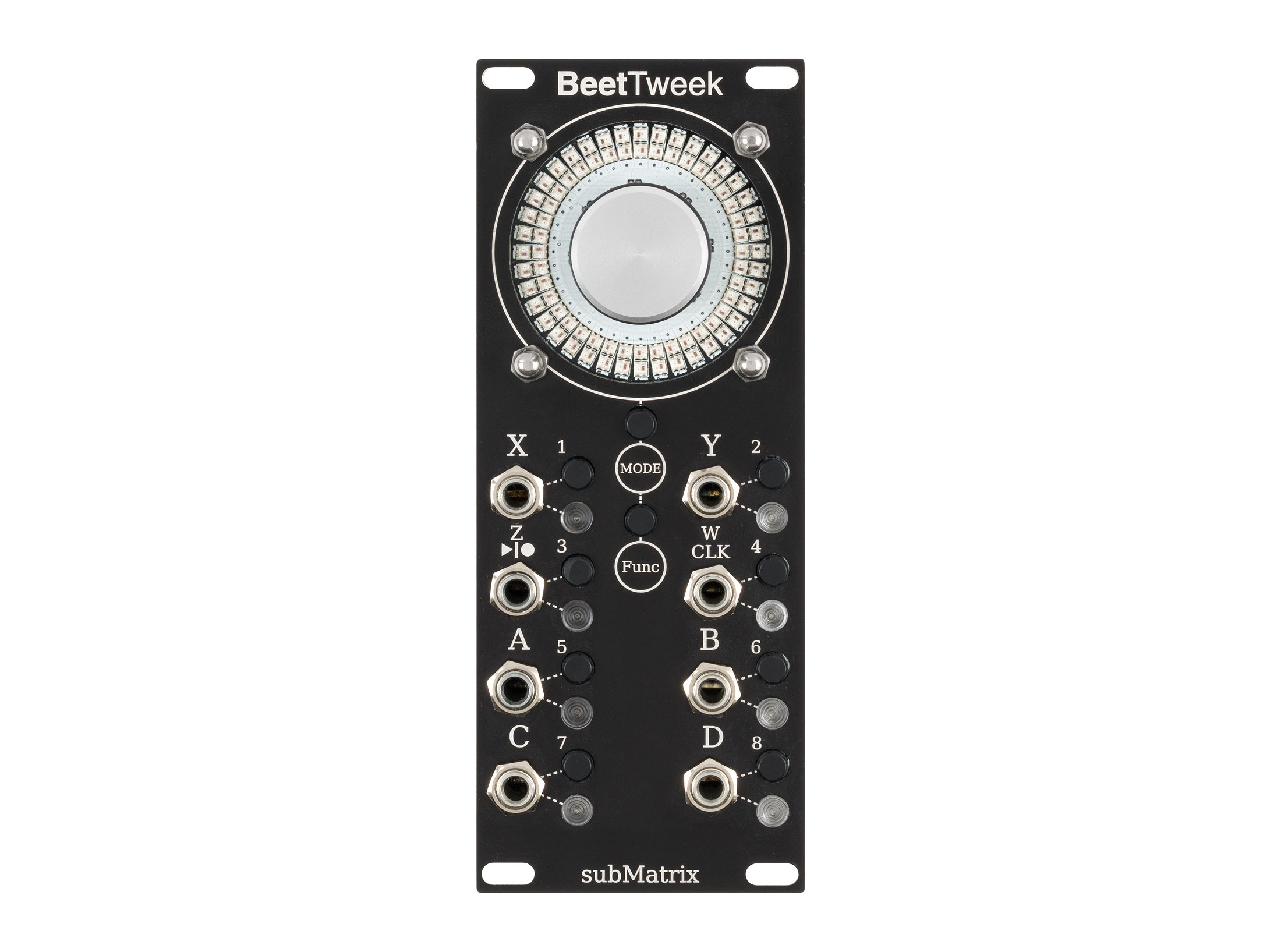

subMatrix BeetTweek Haptic Feedback Eurorack Controller

subMatrix BeetTweek

The BeetTweek from subMatrix is an advanced Eurorack controller module that uses haptic force-feedback to bridge the world of voltage control and tactile performance. Its large central knob features a precision rotary sensor and super-smooth brushless motor, allowing for a wide range of haptic interactions with your system. Generate CV signals and gates derived from knob position, rotation velocity, and rotational force, with multiple operational modes that enable nuanced and inspiring musical interactions. Act on the knob, and let act back on you, empowering embodied control and creative engagements that bring you closer to your musical expression.



In all eight modes of BeetTweek, CV inputs and outputs with audio-rate capabilities and flexible settings provide an expansive platform for interactive control. Likewise, the ability to record and playback your movements in each mode and sync to external clock signals enables deeply expressive control that seamlessly integrates with any system. Control your rack with a self-spinning DJ-style jogwheel in Turn-Table mode, craft snap-back control elements for pitch bends and beyond with Spring mode, and explore wind-up control with Ratchet mode. Control knob feel with CV in Torque-Friction and Torque-Curve modes, snap through indented value adjustments in Indent mode, and pluck stored V/oct information with Sequenced Pluck mode. No matter which direction you take this diverse module, BeetTweek from subMatrix provides a revolution in Eurorack control at every turn.



BeetTweek Features

Haptic force-feedback controller for Eurorack

Multiple DSP modes enable complex tactile control interactions with modular synths

Precision AS5048A 14-bit rotary sensor and brushless motor for precise signal generation and haptic feedback

4x 24-bit DC-coupled, audio-rate outputs

2x 24-bit DC-coupled audio-rate inputs

Enchanting 80 RGB LED display

8x modes enable versatile and unique controllers, sequencers, and CV processors

All modes feature gesture recording and playback with knob automation playback

Internal or external clock synchronization

Highly configurable modes provide endless potential for customized controls

Eurorack module

Width: 10hp

Depth: 47mm

Current draw: 280mA @ +12V, 1mA @ -12V, 0mA @ +5V
